7.6 Typical Characteristics

at TA = 25°C, VS = ±15 V, RL = 10 kΩ, VREF = 0 V, VCM = VS / 2, and G = 1 (unless otherwise noted)


Figure 7-1 Gain vs Frequency

Figure 7-3 Positive Power Supply Rejection vs Frequency
VS = ±15 V

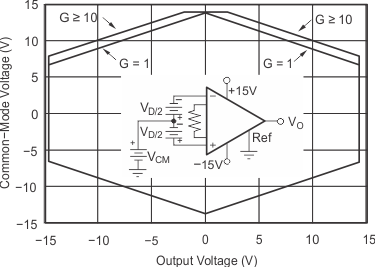

Figure 7-5 Input Common-Mode Range vs Output Voltage

Figure 7-7 Input-Referred Noise vs Frequency

Figure 7-9 Quiescent Current vs Temperature

Figure 7-11 Input Offset Voltage Warm-Up


Figure 7-13 Output Voltage Swing vs Output Current

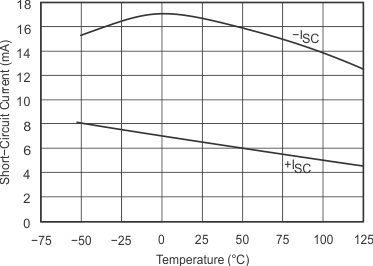

Figure 7-15 Short Circuit Output Current vs Temperature

Figure 7-17 Total Harmonic Distortion + Noise vs Frequency
  G = 1, 10

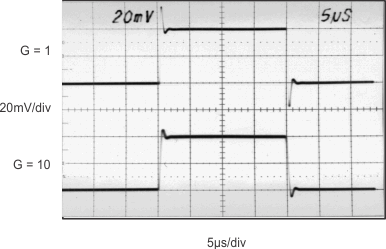

Figure 7-19 Small Signal
  G = 1, 10
Figure 7-21 Large Signal

Figure 7-2 Common-Mode Rejection vs Frequency

Figure 7-4 Negative Power Supply Rejection vs Frequency
VS = ±5 V, ±2.5 V
Figure 7-6 Input Common-Mode Range vs Output Voltage

Figure 7-8 Settling Time vs Gain

Figure 7-10 Input Overvoltage V/I Characteristics

Figure 7-12 Input Bias Current vs Temperature

Figure 7-14 Output Voltage Swing vs Power Supply Voltage

Figure 7-16 Maximum Output Voltage vs Frequency
  G ≥ 100
Figure 7-18 0.1 to 10-Hz Input-Referred Voltage Noise
  G = 100, 1000

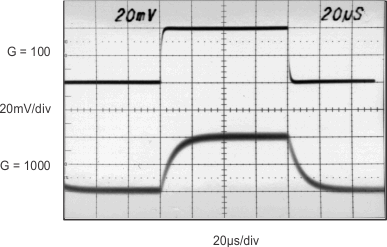

Figure 7-20 Small Signal
  G = 100, 1000
Figure 7-22 Large Signal
