4 Pin Configuration and Functions

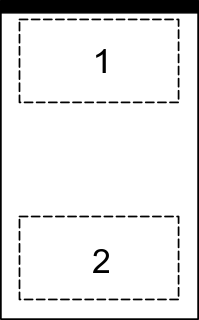

ESD321 DPY Package, 2-Pin X1SON (Top View)Figure 4-1 DPY Package, 2-Pin X1SON (Top View)
Table 4-1 Pin Functions
PINTYPE(1)DESCRIPTION
NAMEDPY
IO1I/OESD Protected Channel. Connect to the line being protected.
GND2GNDConnect to ground.

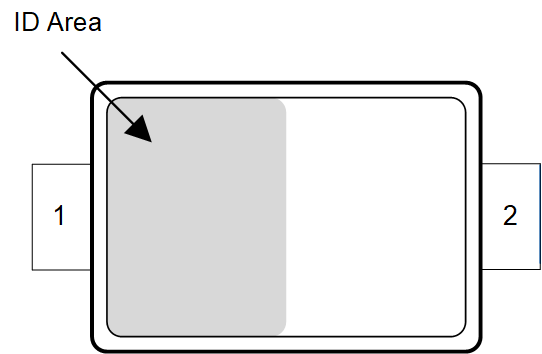

ESD321 DYA Package, 2-Pin SOD-523 (Top View)Figure 4-2 DYA Package, 2-Pin SOD-523 (Top View)
Table 4-2 Pin Functions
PIN TYPE(1) DESCRIPTION
NAME DYA
IO 2 I/O ESD Protected Channel. Connect to the line being protected.
GND 1 GND Connect to ground.
(1) I = input, O = output, GND = ground
