Typical Characteristics

ESD224 D001_SLVSEB4.gifFigure 1. Positive TLP Curve, Connector side IO Pin to GND (tp=100ns)
ESD224 D003_new_SLVSEB4.gifFigure 3. Clamping voltage waveform for +8kV IEC 61000-4-2 stress. See Figure 11 for details.
ESD224 D005_SLVSEB4.gifFigure 5. IEC 61000-4-5 Surge Waveform (tp=8/20 µs)

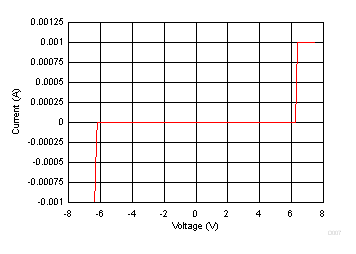

ESD224 D007_SLVSEB4.gifFigure 7. DC Voltage Sweep I-V Curve, IO Pin to GND
ESD224 D011_SLVSEB4_Insertion_Loss.gifFigure 9. Differential Insertion Loss
ESD224 D002_SLVSEB4.gifFigure 2. Negative TLP Curve, Connector side IO Pin to GND (Plotted as positive TLP from GND to IO, tp=100ns )
ESD224 D004_new_SLVSEB4.gifFigure 4. Clamping voltage waveform for -8kV IEC 61000-4-2 stress. See Figure 11 for details.
ESD224 D009_SLVSEB4.gifFigure 6. Capacitance vs. Bias Voltage at 25 degree Celsius
ESD224 D008_SLVSEB4.gifFigure 8. Leakage Current vs Temperature, IO Pin to GND, at 2.5 V Bias

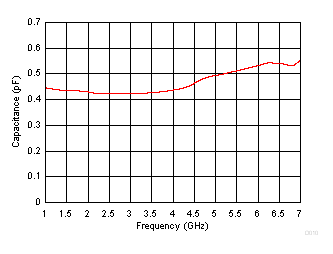

ESD224 D010_SLVSEB4_Cap_Freq.gifFigure 10. Capacitance vs Frequency
