9 Parameter Measurement Information

9.1 AC Timing Diagrams and Test Circuits

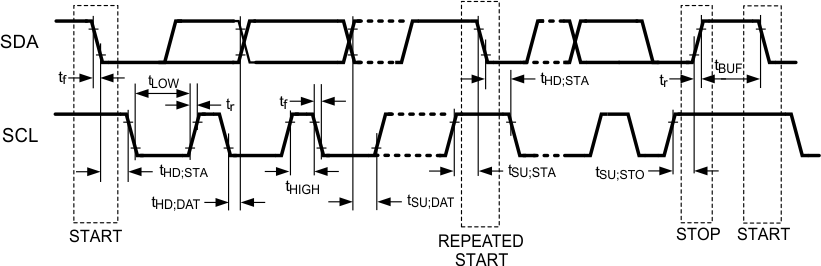

DS90UB913Q-Q1 DS90UB914Q-Q1 30144652.gifFigure 5. Bidirectional Control Bus Timing

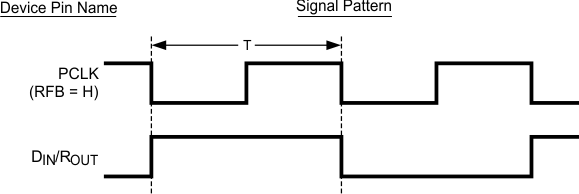

DS90UB913Q-Q1 DS90UB914Q-Q1 30144601.gifFigure 6. Worst Case Test Pattern
DS90UB913Q-Q1 DS90UB914Q-Q1 30144646.gifFigure 7. Serializer CML Output Load and Transition Times
DS90UB913Q-Q1 DS90UB914Q-Q1 30144647.gifFigure 8. Serializer CML Output Load and Transition Times
DS90UB913Q-Q1 DS90UB914Q-Q1 30144648.gifFigure 9. Serializer VOD Diagram
DS90UB913Q-Q1 DS90UB914Q-Q1 30144630.gifFigure 10. Serializer VOD Diagram
DS90UB913Q-Q1 DS90UB914Q-Q1 30144634.gifFigure 11. Differential Vswing Diagram
DS90UB913Q-Q1 DS90UB914Q-Q1 30144616.gifFigure 12. Serializer Input Clock Transition Times
DS90UB913Q-Q1 DS90UB914Q-Q1 30144649.gifFigure 13. Serializer Set-Up and Hold Times

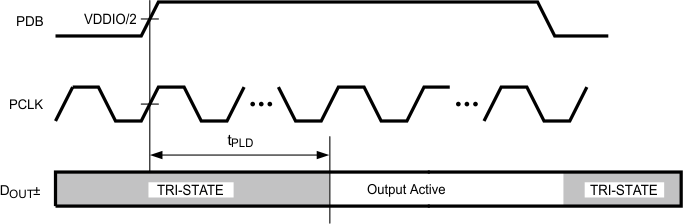

DS90UB913Q-Q1 DS90UB914Q-Q1 30144632.gifFigure 14. Serializer PLL Lock Time
DS90UB913Q-Q1 DS90UB914Q-Q1 30144650.gifFigure 15. Serializer Delay
DS90UB913Q-Q1 DS90UB914Q-Q1 30144613.gifFigure 16. Deserializer Data Lock Time
DS90UB913Q-Q1 DS90UB914Q-Q1 30144614.gifFigure 17. Deserializer LVCMOS Output Load and Transition Times
DS90UB913Q-Q1 DS90UB914Q-Q1 30144611.gifFigure 18. Deserializer Delay
DS90UB913Q-Q1 DS90UB914Q-Q1 30144631.gifFigure 19. Deserializer Output Set-Up and Hold Times

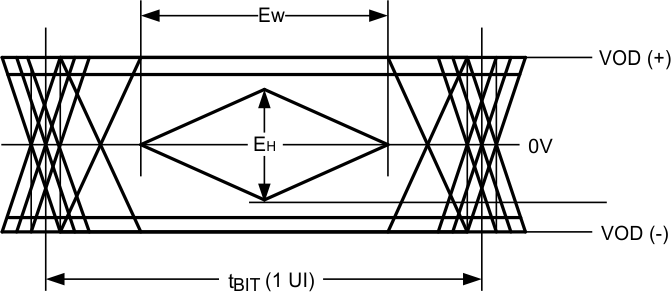

DS90UB913Q-Q1 DS90UB914Q-Q1 30144658.gifFigure 20. CML Output Driver
DS90UB913Q-Q1 DS90UB914Q-Q1 30144662.gifFigure 21. Output State (Set-Up and Hold) Times
DS90UB913Q-Q1 DS90UB914Q-Q1 30144688.gifFigure 22. Typical Serializer Jitter Transfer Function at 100 MHz
DS90UB913Q-Q1 DS90UB914Q-Q1 30144659.gifFigure 23. Typical Deserializer Input Jitter Tolerance Curve at 1.4-Gbps Line Rate

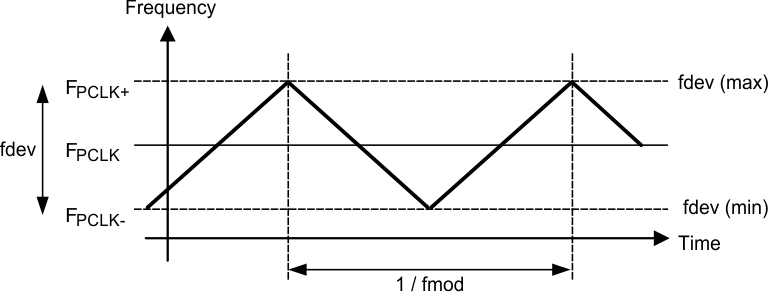

DS90UB913Q-Q1 DS90UB914Q-Q1 30144635.gifFigure 24. Spread Spectrum Clock Output Profile
