Differential Driver With FIR Filter

The DS250DF210 output driver has a three-tap finite impulse response (FIR) filter which allows for precursor and postcursor equalization to compensate for a wide variety of output channel media. The filter consists of a weighted sum of three consecutive retimed bits as shown in the following diagram. C[0] can take on values in the range [-31, +31]. C[-1] and C[+1] can take on values in the range [-15, 15].

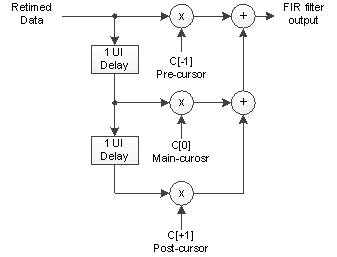

DS250DF210 bd_fir.gifFigure 7. FIR Filter Functional Model

When using the FIR filter, it is important to abide by the following general rules:

  • |C[-1]| + |C[0]| + |C[+1]| ≤ 31; the FIR tap coefficients absolute sum must be less or equal to 31
  • sgn(C[-1]) = sgn(C[+1]) ≠ sgn(C[0]), for high-pass filter effect; the sign for the precursor or postcursor tap must be different from main-cursor tap to realize boost effect
  • sgn(C[-1]) = sgn(C[+1]) = sgn(C[0]), for low-pass filter effect; the sign for the precursor or postcursor tap must be equal to the main-cursor tap to realize attenuation effect

The FIR filter is used to predistort the transmitted waveform in order to compensate for frequency-dependant loss in the output channel. The most common way of predistorting the signal is to accentuate the transitions and de-emphasize the non-transitions. The bit before a transition is accentuated via the precursor tap, and the bit after the transition is accentuated through the postcursor tap. The figures below give a conceptual illustration of how the FIR filter affects the output waveform. The following characteristics can be derived from the example waveforms.

  • VODpk-pk= v7 - v8
  • VODlow-frequency = v2 - v5
  • RpredB = 20 * log10 (v3 ⁄v2 )
  • RpstdB = 20 * log10 (v1 ⁄v2 )
DS250DF210 fir_wfm_postonly.gifFigure 8. Conceptual FIR Waveform With Postcursor Only

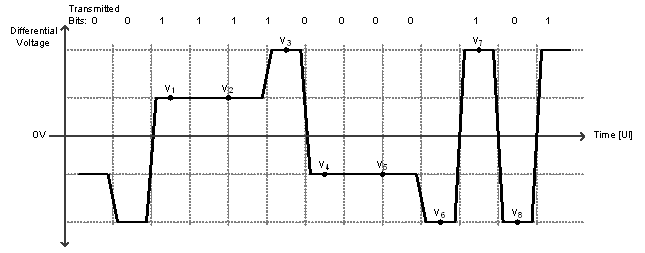

DS250DF210 fir_wfm_preonly.gifFigure 9. Conceptual FIR Waveform With Precursor Only
DS250DF210 fir_wfm_full.gifFigure 10. Conceptual FIR Waveform With Both Precursor and Postcursor
