ZHCSJ33F December   2015  – May 2019 DRA744 , DRA745 , DRA746 , DRA750 , DRA756

PRODUCTION DATA.

  1. 1 器件概述
    1. 1.1 特性
    2. 1.2 应用
    3. 1.3 说明
    4. 1.4 功能方框图
  2. 2 修订历史记录
  3. 3 Device Comparison
    1. 3.1 Related Products
  4. 4 Terminal Configuration and Functions
    1. 4.1 Terminal Assignment
      1. 4.1.1 Unused Balls Connection Requirements
    2. 4.2 Ball Characteristics
    3. 4.3 Multiplexing Characteristics
    4. 4.4 Signal Descriptions
      1. 4.4.1  Video Input Ports (VIP)
      2. 4.4.2  Display Subsystem – Video Output Ports
      3. 4.4.3  Display Subsystem – High-Definition Multimedia Interface (HDMI)
      4. 4.4.4  External Memory Interface (EMIF)
      5. 4.4.5  General-Purpose Memory Controller (GPMC)
      6. 4.4.6  Timers
      7. 4.4.7  Inter-Integrated Circuit Interface (I2C)
      8. 4.4.8  HDQ / 1-Wire Interface (HDQ1W)
      9. 4.4.9  Universal Asynchronous Receiver Transmitter (UART)
      10. 4.4.10 Multichannel Serial Peripheral Interface (McSPI)
      11. 4.4.11 Quad Serial Peripheral Interface (QSPI)
      12. 4.4.12 Multichannel Audio Serial Port (McASP)
      13. 4.4.13 Universal Serial Bus (USB)
      14. 4.4.14 SATA
      15. 4.4.15 Peripheral Component Interconnect Express (PCIe)
      16. 4.4.16 Controller Area Network Interface (DCAN)
      17. 4.4.17 Ethernet Interface (GMAC_SW)
      18. 4.4.18 Media Local Bus (MLB) Interface
      19. 4.4.19 eMMC/SD/SDIO
      20. 4.4.20 General-Purpose Interface (GPIO)
      21. 4.4.21 Keyboard controller (KBD)
      22. 4.4.22 Pulse Width Modulation (PWM) Interface
      23. 4.4.23 Audio Tracking Logic (ATL)
      24. 4.4.24 Test Interfaces
      25. 4.4.25 System and Miscellaneous
        1. 4.4.25.1 Sysboot
        2. 4.4.25.2 Power, Reset, and Clock Management (PRCM)
        3. 4.4.25.3 Real Time Clock (RTC) Interface
        4. 4.4.25.4 System Direct Memory Access (SDMA)
        5. 4.4.25.5 Interrupt Controllers (INTC)
        6. 4.4.25.6 Observability
      26. 4.4.26 Power Supplies
  5. 5 Specifications
    1. 5.1 Absolute Maximum Ratings
    2. 5.2 ESD Ratings
    3. 5.3 Power on Hour (POH) Limits
    4. 5.4 Recommended Operating Conditions
    5. 5.5 Operating Performance Points
      1. 5.5.1 AVS and ABB Requirements
      2. 5.5.2 Voltage And Core Clock Specifications
      3. 5.5.3 Maximum Supported Frequency
    6. 5.6 Power Consumption Summary
    7. 5.7 Electrical Characteristics
      1. 5.7.1  LVCMOS DDR DC Electrical Characteristics
      2. 5.7.2  HDMIPHY DC Electrical Characteristics
      3. 5.7.3  Dual Voltage LVCMOS I2C DC Electrical Characteristics
      4. 5.7.4  IQ1833 Buffers DC Electrical Characteristics
      5. 5.7.5  IHHV1833 Buffers DC Electrical Characteristics
      6. 5.7.6  LVCMOS OSC Buffers DC Electrical Characteristics
      7. 5.7.7  ILVDS18 Buffers DC Electrical Characteristics
      8. 5.7.8  BMLB18 Buffers DC Electrical Characteristics
      9. 5.7.9  BC1833IHHV Buffers DC Electrical Characteristics
      10. 5.7.10 USBPHY DC Electrical Characteristics
      11. 5.7.11 Dual Voltage SDIO1833 DC Electrical Characteristics
      12. 5.7.12 Dual Voltage LVCMOS DC Electrical Characteristics
      13. 5.7.13 SATAPHY DC Electrical Characteristics
      14. 5.7.14 PCIEPHY DC Electrical Characteristics
    8. 5.8 Thermal Resistance Characteristics
      1. 5.8.1 Package Thermal Characteristics
    9. 5.9 Power Supply Sequences
  6. 6 Clock Specifications
    1. 6.1 Input Clock Specifications
      1. 6.1.1 Input Clock Requirements
      2. 6.1.2 System Oscillator OSC0 Input Clock
        1. 6.1.2.1 OSC0 External Crystal
        2. 6.1.2.2 OSC0 Input Clock
      3. 6.1.3 Auxiliary Oscillator OSC1 Input Clock
        1. 6.1.3.1 OSC1 External Crystal
        2. 6.1.3.2 OSC1 Input Clock
      4. 6.1.4 RTC Oscillator Input Clock
        1. 6.1.4.1 RTC Oscillator External Crystal
        2. 6.1.4.2 RTC Oscillator Input Clock
    2. 6.2 RC On-die Oscillator Clock
    3. 6.3 DPLLs, DLLs Specifications
      1. 6.3.1 DPLL Characteristics
      2. 6.3.2 DLL Characteristics
      3. 6.3.3 DPLL and DLL Noise Isolation
  7. 7 Timing Requirements and Switching Characteristics
    1. 7.1  Timing Test Conditions
    2. 7.2  Interface Clock Specifications
      1. 7.2.1 Interface Clock Terminology
      2. 7.2.2 Interface Clock Frequency
    3. 7.3  Timing Parameters and Information
      1. 7.3.1 Parameter Information
        1. 7.3.1.1 1.8V and 3.3V Signal Transition Levels
        2. 7.3.1.2 1.8V and 3.3V Signal Transition Rates
        3. 7.3.1.3 Timing Parameters and Board Routing Analysis
    4. 7.4  Recommended Clock and Control Signal Transition Behavior
    5. 7.5  Virtual and Manual I/O Timing Modes
    6. 7.6  Video Input Ports (VIP)
    7. 7.7  Display Subsystem – Video Output Ports
    8. 7.8  Display Subsystem – High-Definition Multimedia Interface (HDMI)
    9. 7.9  External Memory Interface (EMIF)
    10. 7.10 General-Purpose Memory Controller (GPMC)
      1. 7.10.1 GPMC/NOR Flash Interface Synchronous Timing
      2. 7.10.2 GPMC/NOR Flash Interface Asynchronous Timing
      3. 7.10.3 GPMC/NAND Flash Interface Asynchronous Timing
    11. 7.11 Timers
    12. 7.12 Inter-Integrated Circuit Interface (I2C)
      1. Table 7-34 Timing Requirements for I2C Input Timings
      2. Table 7-35 Timing Requirements for I2C HS-Mode (I2C3/4/5 Only)
      3. Table 7-36 Switching Characteristics Over Recommended Operating Conditions for I2C Output Timings
    13. 7.13 HDQ / 1-Wire Interface (HDQ1W)
      1. 7.13.1 HDQ / 1-Wire — HDQ Mode
      2. 7.13.2 HDQ/1-Wire—1-Wire Mode
    14. 7.14 Universal Asynchronous Receiver Transmitter (UART)
      1. Table 7-41 Timing Requirements for UART
      2. Table 7-42 Switching Characteristics Over Recommended Operating Conditions for UART
    15. 7.15 Multichannel Serial Peripheral Interface (McSPI)
    16. 7.16 Quad Serial Peripheral Interface (QSPI)
    17. 7.17 Multichannel Audio Serial Port (McASP)
      1. Table 7-49 Timing Requirements for McASP1
      2. Table 7-50 Timing Requirements for McASP2
      3. Table 7-51 Timing Requirements for McASP3/4/5/6/7/8
      4. Table 7-52 Switching Characteristics Over Recommended Operating Conditions for McASP1
      5. Table 7-53 Switching Characteristics Over Recommended Operating Conditions for McASP2
      6. Table 7-54 Switching Characteristics Over Recommended Operating Conditions for McASP3/4/5/6/7/8
    18. 7.18 Universal Serial Bus (USB)
      1. 7.18.1 USB1 DRD PHY
      2. 7.18.2 USB2 PHY
      3. 7.18.3 USB3 and USB4 DRD ULPI—SDR—Slave Mode—12-pin Mode
    19. 7.19 Serial Advanced Technology Attachment (SATA)
    20. 7.20 Peripheral Component Interconnect Express (PCIe)
    21. 7.21 Controller Area Network Interface (DCAN)
      1. Table 7-69 Timing Requirements for DCANx Receive
      2. Table 7-70 Switching Characteristics Over Recommended Operating Conditions for DCANx Transmit
    22. 7.22 Ethernet Interface (GMAC_SW)
      1. 7.22.1 GMAC MII Timings
        1. Table 7-71 Timing Requirements for miin_rxclk - MII Operation
        2. Table 7-72 Timing Requirements for miin_txclk - MII Operation
        3. Table 7-73 Timing Requirements for GMAC MIIn Receive 10/100 Mbit/s
        4. Table 7-74 Switching Characteristics Over Recommended Operating Conditions for GMAC MIIn Transmit 10/100 Mbits/s
      2. 7.22.2 GMAC MDIO Interface Timings
      3. 7.22.3 GMAC RMII Timings
        1. Table 7-79 Timing Requirements for GMAC REF_CLK - RMII Operation
        2. Table 7-80 Timing Requirements for GMAC RMIIn Receive
        3. Table 7-81 Switching Characteristics Over Recommended Operating Conditions for GMAC REF_CLK - RMII Operation
        4. Table 7-82 Switching Characteristics Over Recommended Operating Conditions for GMAC RMIIn Transmit 10/100 Mbits/s
      4. 7.22.4 GMAC RGMII Timings
        1. Table 7-86 Timing Requirements for rgmiin_rxc - RGMIIn Operation
        2. Table 7-87 Timing Requirements for GMAC RGMIIn Input Receive for 10/100/1000 Mbps
        3. Table 7-88 Switching Characteristics Over Recommended Operating Conditions for rgmiin_txctl - RGMIIn Operation for 10/100/1000 Mbit/s
        4. Table 7-89 Switching Characteristics for GMAC RGMIIn Output Transmit for 10/100/1000 Mbps
    23. 7.23 Media Local Bus (MLB) interface
    24. 7.24 eMMC/SD/SDIO
      1. 7.24.1 MMC1—SD Card Interface
        1. 7.24.1.1 Default speed, 4-bit data, SDR, half-cycle
        2. 7.24.1.2 High speed, 4-bit data, SDR, half-cycle
        3. 7.24.1.3 SDR12, 4-bit data, half-cycle
        4. 7.24.1.4 SDR25, 4-bit data, half-cycle
        5. 7.24.1.5 UHS-I SDR50, 4-bit data, half-cycle
        6. 7.24.1.6 UHS-I SDR104, 4-bit data, half-cycle
        7. 7.24.1.7 UHS-I DDR50, 4-bit data
      2. 7.24.2 MMC2 — eMMC
        1. 7.24.2.1 Standard JC64 SDR, 8-bit data, half cycle
        2. 7.24.2.2 High-speed JC64 SDR, 8-bit data, half cycle
        3. 7.24.2.3 High-speed HS200 JC64 SDR, 8-bit data, half cycle
        4. 7.24.2.4 High-speed JC64 DDR, 8-bit data
      3. 7.24.3 MMC3 and MMC4—SDIO/SD
        1. 7.24.3.1 MMC3 and MMC4, SD Default Speed
        2. 7.24.3.2 MMC3 and MMC4, SD High Speed
        3. 7.24.3.3 MMC3 and MMC4, SD and SDIO SDR12 Mode
        4. 7.24.3.4 MMC3 and MMC4, SD SDR25 Mode
        5. 7.24.3.5 MMC3 SDIO High-Speed UHS-I SDR50 Mode, Half Cycle
    25. 7.25 General-Purpose Interface (GPIO)
    26. 7.26 Audio Tracking Logic (ATL)
      1. 7.26.1 ATL Electrical Data/Timing
        1. Table 7-145 Switching Characteristics Over Recommended Operating Conditions for ATL_CLKOUTx
    27. 7.27 System and Miscellaneous interfaces
    28. 7.28 Test Interfaces
      1. 7.28.1 IEEE 1149.1 Standard-Test-Access Port (JTAG)
        1. 7.28.1.1 JTAG Electrical Data/Timing
          1. Table 7-146 Timing Requirements for IEEE 1149.1 JTAG
          2. Table 7-147 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG
          3. Table 7-148 Timing Requirements for IEEE 1149.1 JTAG With RTCK
          4. Table 7-149 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG With RTCK
      2. 7.28.2 Trace Port Interface Unit (TPIU)
        1. 7.28.2.1 TPIU PLL DDR Mode
  8. 8 Applications, Implementation, and Layout
    1. 8.1 Introduction
      1. 8.1.1 Initial Requirements and Guidelines
    2. 8.2 Power Optimizations
      1. 8.2.1 Step 1: PCB Stack-up
      2. 8.2.2 Step 2: Physical Placement
      3. 8.2.3 Step 3: Static Analysis
        1. 8.2.3.1 PDN Resistance and IR Drop
      4. 8.2.4 Step 4: Frequency Analysis
      5. 8.2.5 System ESD Generic Guidelines
        1. 8.2.5.1 System ESD Generic PCB Guideline
        2. 8.2.5.2 Miscellaneous EMC Guidelines to Mitigate ESD Immunity
      6. 8.2.6 EMI / EMC Issues Prevention
        1. 8.2.6.1 Signal Bandwidth
        2. 8.2.6.2 Signal Routing
          1. 8.2.6.2.1 Signal Routing—Sensitive Signals and Shielding
          2. 8.2.6.2.2 Signal Routing—Outer Layer Routing
        3. 8.2.6.3 Ground Guidelines
          1. 8.2.6.3.1 PCB Outer Layers
          2. 8.2.6.3.2 Metallic Frames
          3. 8.2.6.3.3 Connectors
          4. 8.2.6.3.4 Guard Ring on PCB Edges
          5. 8.2.6.3.5 Analog and Digital Ground
    3. 8.3 Core Power Domains
      1. 8.3.1 General Constraints and Theory
      2. 8.3.2 Voltage Decoupling
      3. 8.3.3 Static PDN Analysis
      4. 8.3.4 Dynamic PDN Analysis
      5. 8.3.5 Power Supply Mapping
      6. 8.3.6 DPLL Voltage Requirement
      7. 8.3.7 Loss of Input Power Event
      8. 8.3.8 Example PCB Design
        1. 8.3.8.1 Example Stack-up
        2. 8.3.8.2 vdd_mpu Example Analysis
    4. 8.4 Single-Ended Interfaces
      1. 8.4.1 General Routing Guidelines
      2. 8.4.2 QSPI Board Design and Layout Guidelines
    5. 8.5 Differential Interfaces
      1. 8.5.1 General Routing Guidelines
      2. 8.5.2 USB 2.0 Board Design and Layout Guidelines
        1. 8.5.2.1 Background
        2. 8.5.2.2 USB PHY Layout Guide
          1. 8.5.2.2.1 General Routing and Placement
          2. 8.5.2.2.2 Specific Guidelines for USB PHY Layout
            1. 8.5.2.2.2.1  Analog, PLL, and Digital Power Supply Filtering
            2. 8.5.2.2.2.2  Analog, Digital, and PLL Partitioning
            3. 8.5.2.2.2.3  Board Stackup
            4. 8.5.2.2.2.4  Cable Connector Socket
            5. 8.5.2.2.2.5  Clock Routings
            6. 8.5.2.2.2.6  Crystals/Oscillator
            7. 8.5.2.2.2.7  DP/DM Trace
            8. 8.5.2.2.2.8  DP/DM Vias
            9. 8.5.2.2.2.9  Image Planes
            10. 8.5.2.2.2.10 JTAG Interface
            11. 8.5.2.2.2.11 Power Regulators
        3. 8.5.2.3 Electrostatic Discharge (ESD)
          1. 8.5.2.3.1 IEC ESD Stressing Test
            1. 8.5.2.3.1.1 Test Mode
            2. 8.5.2.3.1.2 Air Discharge Mode
            3. 8.5.2.3.1.3 Test Type
          2. 8.5.2.3.2 TI Component Level IEC ESD Test
          3. 8.5.2.3.3 Construction of a Custom USB Connector
          4. 8.5.2.3.4 ESD Protection System Design Consideration
        4. 8.5.2.4 References
      3. 8.5.3 USB 3.0 Board Design and Layout Guidelines
        1. 8.5.3.1 USB 3.0 interface introduction
        2. 8.5.3.2 USB 3.0 General routing rules
      4. 8.5.4 HDMI Board Design and Layout Guidelines
        1. 8.5.4.1 HDMI Interface Schematic
        2. 8.5.4.2 TMDS General Routing Guidelines
        3. 8.5.4.3 TPD5S115
        4. 8.5.4.4 HDMI ESD Protection Device (Required)
        5. 8.5.4.5 PCB Stackup Specifications
        6. 8.5.4.6 Grounding
      5. 8.5.5 SATA Board Design and Layout Guidelines
        1. 8.5.5.1 SATA Interface Schematic
        2. 8.5.5.2 Compatible SATA Components and Modes
        3. 8.5.5.3 PCB Stackup Specifications
        4. 8.5.5.4 Routing Specifications
      6. 8.5.6 PCIe Board Design and Layout Guidelines
        1. 8.5.6.1 PCIe Connections and Interface Compliance
          1. 8.5.6.1.1 Coupling Capacitors
          2. 8.5.6.1.2 Polarity Inversion
        2. 8.5.6.2 Non-standard PCIe connections
          1. 8.5.6.2.1 PCB Stackup Specifications
          2. 8.5.6.2.2 Routing Specifications
            1. 8.5.6.2.2.1 Impedance
            2. 8.5.6.2.2.2 Differential Coupling
            3. 8.5.6.2.2.3 Pair Length Matching
        3. 8.5.6.3 LJCB_REFN/P Connections
    6. 8.6 Clock Routing Guidelines
      1. 8.6.1 32-kHz Oscillator Routing
      2. 8.6.2 Oscillator Ground Connection
    7. 8.7 DDR2/DDR3 Board Design and Layout Guidelines
      1. 8.7.1 DDR2/DDR3 General Board Layout Guidelines
      2. 8.7.2 DDR2 Board Design and Layout Guidelines
        1. 8.7.2.1 Board Designs
        2. 8.7.2.2 DDR2 Interface
          1. 8.7.2.2.1  DDR2 Interface Schematic
          2. 8.7.2.2.2  Compatible JEDEC DDR2 Devices
          3. 8.7.2.2.3  PCB Stackup
          4. 8.7.2.2.4  Placement
          5. 8.7.2.2.5  DDR2 Keepout Region
          6. 8.7.2.2.6  Bulk Bypass Capacitors
          7. 8.7.2.2.7  High-Speed Bypass Capacitors
          8. 8.7.2.2.8  Net Classes
          9. 8.7.2.2.9  DDR2 Signal Termination
          10. 8.7.2.2.10 VREF Routing
        3. 8.7.2.3 DDR2 CK and ADDR_CTRL Routing
      3. 8.7.3 DDR3 Board Design and Layout Guidelines
        1. 8.7.3.1  Board Designs
          1. 8.7.3.1.1 DDR3 versus DDR2
        2. 8.7.3.2  DDR3 EMIFs
        3. 8.7.3.3  DDR3 Device Combinations
        4. 8.7.3.4  DDR3 Interface Schematic
          1. 8.7.3.4.1 32-Bit DDR3 Interface
          2. 8.7.3.4.2 16-Bit DDR3 Interface
        5. 8.7.3.5  Compatible JEDEC DDR3 Devices
        6. 8.7.3.6  PCB Stackup
        7. 8.7.3.7  Placement
        8. 8.7.3.8  DDR3 Keepout Region
        9. 8.7.3.9  Bulk Bypass Capacitors
        10. 8.7.3.10 High-Speed Bypass Capacitors
          1. 8.7.3.10.1 Return Current Bypass Capacitors
        11. 8.7.3.11 Net Classes
        12. 8.7.3.12 DDR3 Signal Termination
        13. 8.7.3.13 VREF_DDR Routing
        14. 8.7.3.14 VTT
        15. 8.7.3.15 CK and ADDR_CTRL Topologies and Routing Definition
          1. 8.7.3.15.1 Four DDR3 Devices
            1. 8.7.3.15.1.1 CK and ADDR_CTRL Topologies, Four DDR3 Devices
            2. 8.7.3.15.1.2 CK and ADDR_CTRL Routing, Four DDR3 Devices
          2. 8.7.3.15.2 Two DDR3 Devices
            1. 8.7.3.15.2.1 CK and ADDR_CTRL Topologies, Two DDR3 Devices
            2. 8.7.3.15.2.2 CK and ADDR_CTRL Routing, Two DDR3 Devices
          3. 8.7.3.15.3 One DDR3 Device
            1. 8.7.3.15.3.1 CK and ADDR_CTRL Topologies, One DDR3 Device
            2. 8.7.3.15.3.2 CK and ADDR/CTRL Routing, One DDR3 Device
        16. 8.7.3.16 Data Topologies and Routing Definition
          1. 8.7.3.16.1 DQS and DQ/DM Topologies, Any Number of Allowed DDR3 Devices
          2. 8.7.3.16.2 DQS and DQ/DM Routing, Any Number of Allowed DDR3 Devices
        17. 8.7.3.17 Routing Specification
          1. 8.7.3.17.1 CK and ADDR_CTRL Routing Specification
          2. 8.7.3.17.2 DQS and DQ Routing Specification
  9. 9 Device and Documentation Support
    1. 9.1 Device Nomenclature
      1. 9.1.1 Standard Package Symbolization
      2. 9.1.2 Device Naming Convention
    2. 9.2 Tools and Software
    3. 9.3 Documentation Support
    4. 9.4 Related Links
    5. 9.5 Community Resources
    6. 9.6 商标
    7. 9.7 静电放电警告
    8. 9.8 Glossary
  10. 10Mechanical, Packaging, and Orderable Information
    1. 10.1 Packaging Information

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • ABC|760
散热焊盘机械数据 (封装 | 引脚)
订购信息
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
9 tc(AHCLKRX) Cycle time, AHCLKR/X 20 ns
10 tw(AHCLKRX) Pulse duration, AHCLKR/X high or low 0.5P - 2.5 (2) ns
11 tc(ACLKRX) Cycle time, ACLKR/X 20 ns
12 tw(ACLKRX) Pulse duration, ACLKR/X high or low 0.5P - 2.5 (3) ns
13 td(ACLK-AFSXR) Delay time, ACLKR/X transmit edge to AFSX/R output valid ACLKR/X int -0.74 6 ns
ACLKR/X ext in
ACLKR/X ext out		 2 26.4 ns
14 td(ACLK-AXR) Delay time, ACLKR/X transmit edge to AXR output valid ACLKR/X int -1.68 6.97 ns
ACLKR/X ext in
ACLKR/X ext out		 1.07 25.9 ns
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS8xx_McASP_01.gif
A. For CLKRP = CLKXP = 1, the McASP transmitter is configured for falling edge (to shift data out) and the McASP receiver is configured for rising edge (to shift data in).
B. For CLKRP = CLKXP = 0, the McASP transmitter is configured for rising edge (to shift data out) and the McASP receiver is configured for falling edge (to shift data in).

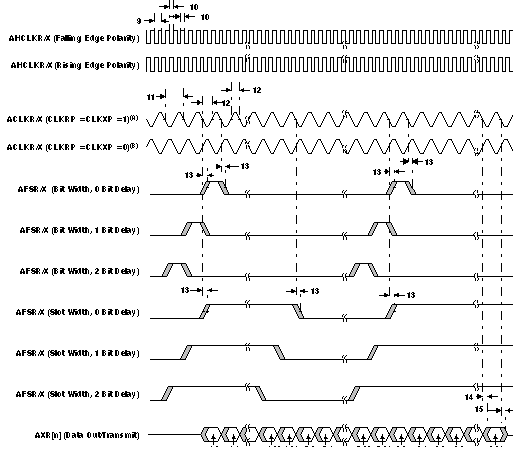

Figure 7-42 McASP Output TimingAB

NOTE

To configure the desired virtual mode the user must set MODESELECT bit and DELAYMODE bitfield for each corresponding pad control register.

The pad control registers are presented in Table 4-3 and described in Device TRM, Control Module Chapter.

Table 7-55 through Table 7-62 explain all cases with Virtual Mode Details for McASP1/2/3/4/5/6/7/8 (see Figure 7-43 through Figure 7-50).

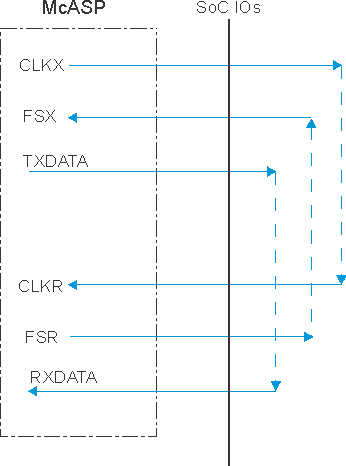

Table 7-55 Virtual Mode Case Details for McASP1

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP1_VIRTUAL3_ASYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP1_VIRTUAL3_ASYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL3_ASYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP1_VIRTUAL1_ASYNC_TX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL3_ASYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP1_VIRTUAL1_ASYNC_TX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

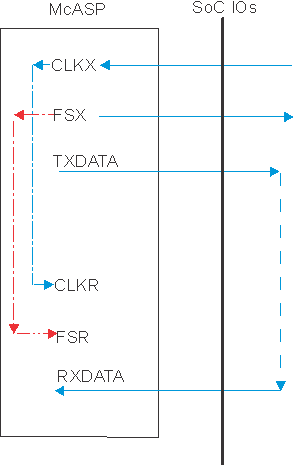

6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL2_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP1_VIRTUAL2_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL2_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP1_VIRTUAL2_SYNC_RX

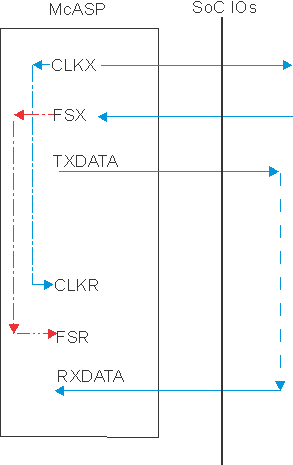

8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-56 Virtual Mode Case Details for McASP2

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode)(1) See Figure 7-43
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)(1)
AXR(Inputs)/CLKR/FSR MCASP2_VIRTUAL4_ASYNC_RX_80M (2)
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP2_VIRTUAL2_ASYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL2_ASYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL2_ASYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX(1) See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX(1)
AXR(Inputs)/CLKX/FSX MCASP2_VIRTUAL1_SYNC_RX_80M(2)
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
  1. Used up to 50MHz. Should also be used in a CI-FI- mixed case where AXR operate as both inputs and outputs (that is, AXR are bidirectional).
  2. Used in 80MHz input only mode when AXR, CLKX and FSX are all inputs.

Table 7-57 Virtual Mode Case Details for McASP3

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-58 Virtual Mode Case Details for McASP4

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-59 Virtual Mode Case Details for McASP5

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-60 Virtual Mode Case Details for McASP6

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-61 Virtual Mode Case Details for McASP7

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-62 Virtual Mode Case Details for McASP8

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_01.gifFigure 7-43 McASP1-8 COIFOI – ASYNC Mode
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_02.gifFigure 7-44 McASP1-8 COIFIO – ASYNC Mode
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_03.gifFigure 7-45 McASP1-8 CIOFIO – ASYNC Mode
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_04.gifFigure 7-46 McASP1-8 CIOFOI – ASYNC Mode
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_05.gifFigure 7-47 McASP1-8 CO-FO- – SYNC Mode
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_06.gifFigure 7-48 McASP1-8 CI-FO- – SYNC Mode
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_07.gifFigure 7-49 McASP1-8 CI-FI- – SYNC Mode
DRA756 DRA755 DRA754 DRA752 DRA751 DRA750 DRA746 DRA745 DRA744 SPRS85x_MCASP_uc_08.gifFigure 7-50 McASP1-8 CO-FI- – SYNC Mode

Virtual IO Timings Modes must be used to ensure some IO timings for McASP1. See Table 7-2Modes Summary for a list of IO timings requiring the use of Virtual IO Timings Modes. See Table 7-63Virtual Functions Mapping for McASP1 for a definition of the Virtual modes.

Table 7-63 presents the values for DELAYMODE bitfield.

Table 7-63 Virtual Functions Mapping for McASP1

BALL BALL NAME Delay Mode Value MUXMODE[15:0]
MCASP1_VIRTUAL1_ASYNC_TX MCASP1_VIRTUAL2_SYNC_RX MCASP1_VIRTUAL3_ASYNC_RX 0 1 2
E21 gpio6_14 11 15 14 mcasp1_axr8
F20 gpio6_15 11 15 14 mcasp1_axr9
F21 gpio6_16 11 15 14 mcasp1_axr10
D18 xref_clk0 0 15 14 mcasp1_axr4
E17 xref_clk1 0 15 14 mcasp1_axr5
B26 xref_clk2 5 15 14 mcasp1_axr6
C23 xref_clk3 5 15 14 mcasp1_axr7
C14 mcasp1_aclkx 8 15 14 mcasp1_aclkx
D14 mcasp1_fsx 12 15 14 mcasp1_fsx
B14 mcasp1_aclkr 11 N/A 15 mcasp1_aclkr
J14 mcasp1_fsr 11 N/A 15 mcasp1_fsr
G12 mcasp1_axr0 8 15 14 mcasp1_axr0
F12 mcasp1_axr1 8 15 14 mcasp1_axr1
G13 mcasp1_axr2 10 15 14 mcasp1_axr2
J11 mcasp1_axr3 10 15 14 mcasp1_axr3
E12 mcasp1_axr4 10 15 14 mcasp1_axr4
F13 mcasp1_axr5 10 15 14 mcasp1_axr5
C12 mcasp1_axr6 10 15 14 mcasp1_axr6
D12 mcasp1_axr7 10 15 14 mcasp1_axr7
B12 mcasp1_axr8 6 15 14 mcasp1_axr8
A11 mcasp1_axr9 6 15 14 mcasp1_axr9
B13 mcasp1_axr10 6 15 14 mcasp1_axr10
A12 mcasp1_axr11 6 15 14 mcasp1_axr11
E14 mcasp1_axr12 6 15 14 mcasp1_axr12
A13 mcasp1_axr13 6 15 14 mcasp1_axr13
G14 mcasp1_axr14 6 15 14 mcasp1_axr14
F14 mcasp1_axr15 6 15 14 mcasp1_axr15
  1. NA in this table stands for Not Applicable.

Virtual IO Timings Modes must be used to ensure some IO timings for McASP2. See Table 7-2Modes Summary for a list of IO timings requiring the use of Virtual IO Timings Modes. See Table 7-64Virtual Functions Mapping for McASP2 for a definition of the Virtual modes.

Table 7-64 presents the values for DELAYMODE bitfield.

Table 7-64 Virtual Functions Mapping for McASP2

BALL BALL NAME Delay Mode Value MUXMODE[15:0]
MCASP2_
VIRTUAL1_
ASYNC_RX_80M		 MCASP2_
VIRTUAL2_
ASYNC_RX		 MCASP2_
VIRTUAL3_
ASYNC_TX		 MCASP2_
VIRTUAL4_
SYNC_RX		 MCASP2_
VIRTUAL5_
SYNC_RX_80M		 0 1 2
D18 xref_clk0 10 9 4 8 6 mcasp2_axr8
E17 xref_clk1 10 9 4 8 6 mcasp2_axr9
B26 xref_clk2 13 12 0 11 10 mcasp2_axr10
C23 xref_clk3 13 12 0 11 10 mcasp2_axr11
A19 mcasp2_aclkx 15 14 5 10 9 mcasp2_aclkx
A18 mcasp2_fsx 15 14 5 10 9 mcasp2_fsx
E15 mcasp2_aclkr 15 14 10 N/A N/A mcasp2_aclkr
A20 mcasp2_fsr 15 14 10 N/A N/A mcasp2_fsr
B15 mcasp2_axr0 15 14 9 13 12 mcasp2_axr0
A15 mcasp2_axr1 15 14 9 13 12 mcasp2_axr1
C15 mcasp2_axr2 15 14 4 10 9 mcasp2_axr2
A16 mcasp2_axr3 15 14 4 10 9 mcasp2_axr3
D15 mcasp2_axr4 15 14 7 13 12 mcasp2_axr4
B16 mcasp2_axr5 15 14 7 13 12 mcasp2_axr5
B17 mcasp2_axr6 15 14 7 13 12 mcasp2_axr6
A17 mcasp2_axr7 15 14 7 13 12 mcasp2_axr7
B18 mcasp3_aclkx 15 14 5 10 9 mcasp2_axr12
F15 mcasp3_fsx 15 14 4 10 9 mcasp2_axr13
B19 mcasp3_axr0 15 14 4 10 9 mcasp2_axr14
C17 mcasp3_axr1 15 14 3 10 8 mcasp2_axr15
  1. NA in this table stands for Not Applicable.

Virtual IO Timings Modes must be used to ensure some IO timings for McASP3/4/5/6/7/8. See Table 7-2Modes Summary for a list of IO timings requiring the use of Virtual IO Timings Modes. See Table 7-65Virtual Functions Mapping for McASP3/4/5/6/7/8 for a definition of the Virtual modes.

Table 7-65 presents the values for DELAYMODE bitfield.

Table 7-65 Virtual Functions Mapping for McASP3/4/5/6/7/8

BALL BALL NAME Delay Mode Value MUXMODE[15:0]
0 1 2
MCASP3_VIRTUAL2_SYNC_RX
C15 mcasp2_axr2 8 mcasp3_axr2
A16 mcasp2_axr3 8 mcasp3_axr3
B18 mcasp3_aclkx 8 mcasp3_aclkx mcasp3_aclkr
F15 mcasp3_fsx 8 mcasp3_fsx mcasp3_fsr
B19 mcasp3_axr0 8 mcasp3_axr0
C17 mcasp3_axr1 6 mcasp3_axr1
MCASP4_VIRTUAL1_SYNC_RX
E12 mcasp1_axr4 13 mcasp4_axr2
F13 mcasp1_axr5 13 mcasp4_axr3
C18 mcasp4_aclkx 15 mcasp4_aclkx mcasp4_aclkr
A21 mcasp4_fsx 15 mcasp4_fsx mcasp4_fsr
G16 mcasp4_axr0 15 mcasp4_axr0
D17 mcasp4_axr1 15 mcasp4_axr1
MCASP5_VIRTUAL1_SYNC_RX
C12 mcasp1_axr6 13 mcasp5_axr2
D12 mcasp1_axr7 13 mcasp5_axr3
AA3 mcasp5_aclkx 15 mcasp5_aclkx mcasp5_aclkr
AB9 mcasp5_fsx 15 mcasp5_fsx mcasp5_fsr
AB3 mcasp5_axr0 15 mcasp5_axr0
AA4 mcasp5_axr1 15 mcasp5_axr1
MCASP6_VIRTUAL1_SYNC_RX
G13 mcasp1_axr2 13 mcasp6_axr2
J11 mcasp1_axr3 13 mcasp6_axr3
B12 mcasp1_axr8 10 mcasp6_axr0
A11 mcasp1_axr9 10 mcasp6_axr1
B13 mcasp1_axr10 10 mcasp6_aclkx mcasp6_aclkr
A12 mcasp1_axr11 10 mcasp6_fsx mcasp6_fsr
MCASP7_VIRTUAL2_SYNC_RX
B14 mcasp1_aclkr 14 mcasp7_axr2
J14 mcasp1_fsr 14 mcasp7_axr3
E14 mcasp1_axr12 10 mcasp7_axr0
A13 mcasp1_axr13 10 mcasp7_axr1
G14 mcasp1_axr14 10 mcasp7_aclkx mcasp7_aclkr
F14 mcasp1_axr15 10 mcasp7_fsx mcasp7_fsr
MCASP8_VIRTUAL1_SYNC_RX
E15 mcasp2_aclkr 13 mcasp8_axr2
A20 mcasp2_fsr 13 mcasp8_axr3
D15 mcasp2_axr4 11 mcasp8_axr0
B16 mcasp2_axr5 11 mcasp8_axr1
B17 mcasp2_axr6 11 mcasp8_aclkx mcasp8_aclkr
A17 mcasp2_axr7 11 mcasp8_fsx mcasp8_fsr
