Timing Requirements

Over Recommended Operating Conditions unless otherwise noted.
MIN NOM MAX UNIT
DMD MIRROR AND SRAM CONTROL LOGIC SIGNALS
tSU Setup time SAC_BUS low before SAC_CLK↑ 1.0 ns
tH Hold time SAC_BUS low after SAC_CLK↑ 1.0 ns
tSU Setup time DAD_BUS high before SAC_CLK↑ 1.0 ns
tH Hold time DAD_BUS after SAC_CLK↑ 1.0 ns
tC Cycle time SAC_CLK 12.5 16.67 ns
tW Pulse width 50% to 50% reference points: SAC_CLK high or low 5.0 ns
tR Rise time 20% to 80% reference points: SAC_CLK 2.5 ns
tF Fall time 80% to 20% reference points: SAC_CLK 2.5 ns
DMD DATA PATH AND LOGIC CONTROL SIGNALS
tSU Setup time DATA(14:0) before DCLK↑ or DCLK↓ 1.0 ns
tH Hold time DATA(14:0) after DCLK↑ or DCLK↓ 1.0 ns
tSU Setup time SCTRL before DCLK↑ or DCLK↓ 1.0 ns
tH Hold time SCTRL after DCLK↑ or DCLK↓ 1.0 ns
tSU Setup time TRC before DCLK↑ or DCLK↓ 1.0 ns
tH Hold time TRC after DCLK↑ or DCLK↓ 1.0 ns
tSU Setup time LOADB low before DCLK↑ 1.0 ns
tH Hold time LOADB low after DCLK↓ 1.0 ns
tSU Setup time RESET_STROBE high before DCLK↑ 1.0 ns
tH Hold time RESET_STROBE after DCLK↑ 3.5 ns
tC Cycle time DCLK 12.5 16.67 ns
tW Pulse width 50% to 50% reference points: DCLK high or low 5.0 ns
tW(L) Pulse width 50% to 50% reference points: LOADB low 7.0 ns
tW(H) Pulse width 50% to 50% reference points: RESET_STROBE high 7.0 ns
tR Rise time 20% to 80% reference points: DCLK, DATA, SCTRL, TRC, LOADB 2.5 ns
tF Fall time 80% to 20% reference points: DCLK, DATA, SCTRL, TRC, LOADB 2.5 ns
JTAG BOUNDARY SCAN CONTROL LOGIC SIGNALS
fTCK Clock frequency TCK 10 MHz
tC Cycle time TCK 100 ns
tW Pulse width 50% to 50% reference points: TCK high or low 10 ns
tSU Setup time TDI valid before TCK↑ 5 ns
tH Hold time TDI valid after TCK↑ 25 ns
tSU Setup time TMS valid before TCK↑ 5 ns
tH Hold time TMS valid after TCK↑ 25 ns
tR Rise time 20% to 80% reference points: TCK, TDI, TMS 2.5 ns
tR Fall time 80% to 20% reference points: TCK, TDI, TMS 2.5 ns
DLP3034-Q1 timing_req_def_1.gifFigure 2. DMD Mirror and SRAM Control Logic Timing Requirements
DLP3034-Q1 timing_req_def_2.gifFigure 3. DMD Data Path and Control Logic Timing Requirements

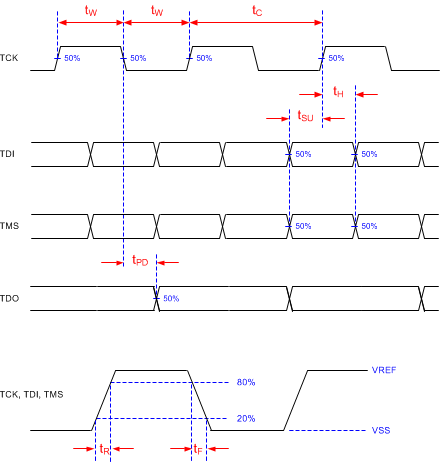

DLP3034-Q1 jtag_timing_req.gifFigure 4. JTAG Boundary Scan Control Logic Timing Requirements
