6.8 Typical Characteristics: DAC at VDD = 5 V

At TA = 25°C, external reference used, and DAC output not loaded, unless otherwise noted.

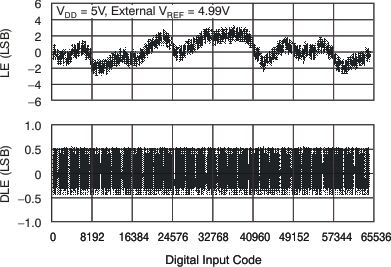

DAC8560 tc_le_40c_5v_las464.gif
–40°C
Figure 14. Linearity Error and Differential Linearity Error vs Digital Input Code

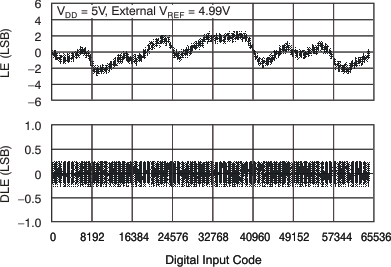

DAC8560 tc_le_105c_5v_las464.gif
105°C
Figure 16. Linearity Error and Differential Linearity Error vs Digital Input Code
DAC8560 tc_fse-tmp_5v_las464.gif
Figure 18. Full-Scale Error vs Temperature
DAC8560 tc_source_sink_5v_dis_las464.gif
Figure 20. Source and Sink Current Capability
DAC8560 tc_idd-tmp_5v_las464.gif
Figure 22. Power-Supply Current vs Temperature

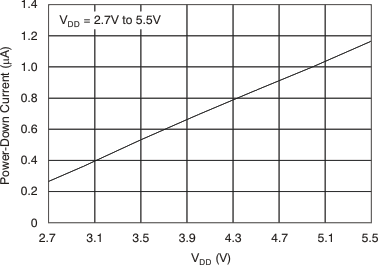

DAC8560 tc_pd_vdd_5v_las464.gif
Figure 24. Power-Down Current vs Power-Supply Voltage

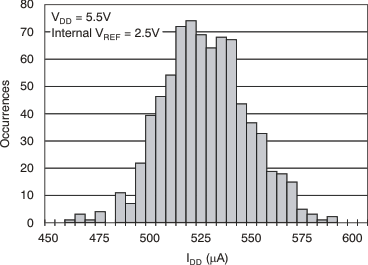

DAC8560 tc_histo_5v_las464.gif
Figure 26. Power-Supply Current Histogram
DAC8560 tc_fs_5v_ris_las464.gif
5-V Rising Edge
Figure 28. Full-Scale Settling Time

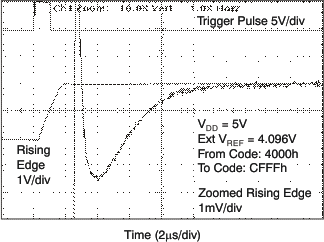

DAC8560 tc_hs_5v_ris_las464.gif
5-V Rising Edge
Figure 30. Half-Scale Settling Time
DAC8560 tc_gl_5v1_ris_las464.gif
Rising Edge 5 V 1-LSB Step
Figure 32. Glitch Energy
DAC8560 tc_gl_5v16_ris_las464.gif
Rising Edge 5 V 16-LSB Step
Figure 34. Glitch Energy
DAC8560 tc_gl_5v256_ris_las464.gif
Rising Edge 5 V 2566-LSB Step
Figure 36. Glitch Energy

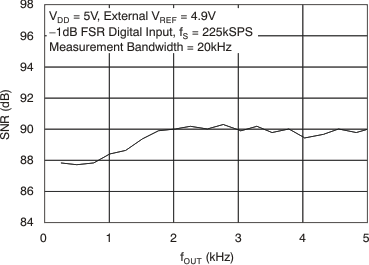

DAC8560 tc_snr-fout_5v_las464.gif
Figure 38. Signal-to-Noise Ratio vs Output Frequency
DAC8560 tc_noise-freq_no_las464.gif
Explained in more detail in Application and Implementation.
Figure 40. DAC Output Noise Density vs Frequency
DAC8560 tc_ref_noise_las464.gif
0.1 Hz to 10 Hz
Figure 42. DAC Output Noise

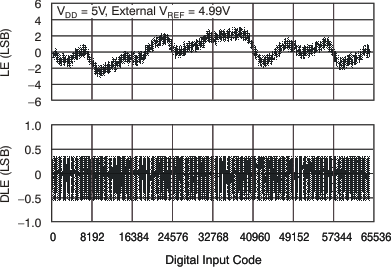

DAC8560 tc_le_25c_5v_las464.gif
25°C
Figure 15. Linearity Error and Differential Linearity Error vs Digital Input Code
DAC8560 tc_zse-tmp_5v_las464.gif
Figure 17. Zero-Scale Error vs Temperature
DAC8560 tc_source_sink_5v_en_las464.gif
Figure 19. Source and Sink Current Capability
DAC8560 tc_idd-code_5v_las464.gif
Figure 21. Power-Supply Current vs Digital Input Code

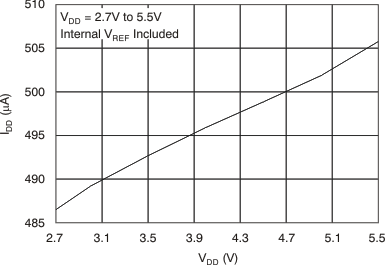

DAC8560 tc_idd_vdd_5v_las464.gif
Figure 23. Power-Supply Current vs Power-Supply Voltage
DAC8560 tc_idd-logic_5v_las464.gif
Figure 25. Power-Supply Current vs Logic Input Voltage

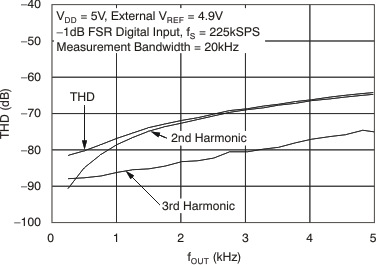

DAC8560 tc_thd-fout_5v_las464.gif
Figure 27. Total Harmonic Distortion vs Output Frequency

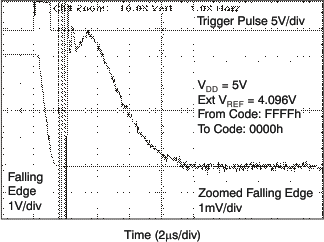

DAC8560 tc_fs_5v_fal_las464.gif
5-V Falling Edge
Figure 29. Full-Scale Settling Time

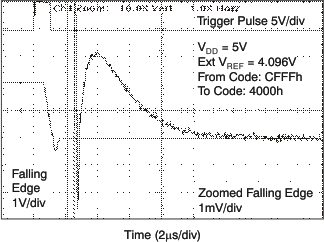

DAC8560 tc_hs_5v_fal_las464.gif
5-V Falling Edge
Figure 31. Half-Scale Settling Time
DAC8560 tc_gl_5v1_fal_las464.gif
Falling Edge 5 V 1-LSB Step
Figure 33. Glitch Energy
DAC8560 tc_gl_5v16_fal_las464.gif
Falling Edge 5 V 16-LSB Step
Figure 35. Glitch Energy

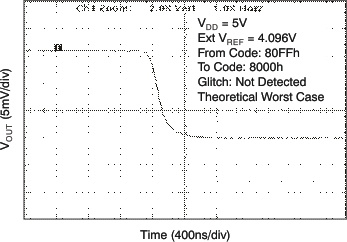

DAC8560 tc_gl_5v256_fal_las464.gif
Falling Edge 5 V 256-LSB Step
Figure 37. Glitch Energy
DAC8560 tc_pwr_den_5v_las464.gif
Figure 39. Power Spectral Density
DAC8560 tc_noise-freq_4uf_las464.gif
Explained in more detail in the Application and Implementation
Figure 41. DAC Output Noise Density vs Frequency
