6.7 Typical Characteristics: Internal Reference

At TA = 25°C, unless otherwise noted.
DAC8560 tc_vref-tmp_cd_las464.gif
Figure 2. Internal Reference Voltage vs Temperature (Grades C and D)
DAC8560 tc_tmp_drift_cd_40_las464.gif
Figure 4. Reference Output Temperature Drift (–40°C to 120°C, Grades C and D)
DAC8560 tc_tmp_drift_cd_0_las464.gif
Figure 6. Reference Output Temperature Drift (0°C to 120°C, Grades C and D)
DAC8560 tc_ref_noise-freq_las464.gif
Explained in more detail in Application and Implementation.
Figure 8. Internal Reference Noise Density vs Frequency
DAC8560 tc_vref-iload_cd_las464.gif
Figure 10. Internal Reference Voltage vs Load Current (Grades C and D)
DAC8560 tc_vref-vdd_cd_las464.gif
Figure 12. Internal Reference Voltage vs Supply Voltage (Grades C and D)
DAC8560 tc_vref-tmp_ab_las464.gif

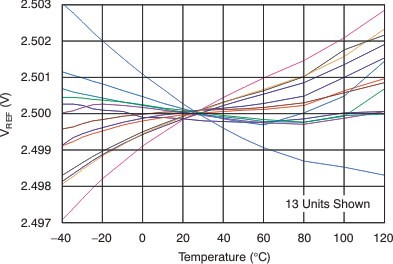

Figure 3. Internal Reference Voltage vs Temperature (Grades A and B)
DAC8560 tc_temp_drift_ab_las464.gif
Figure 5. Reference Output Temperature Drift (–40°C to 120°, Grades A and B)
DAC8560 tc_long_term_drift_las464.gif
Explained in more detail in Application and Implementation .

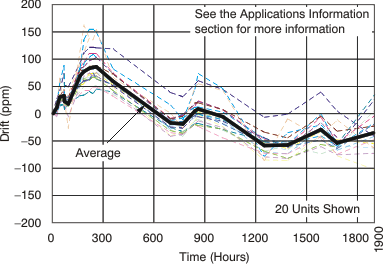

Figure 7. Long-Term Stability/Drift (1)
DAC8560 tc_int_ref_noise_las464.gif
Explained in more detail in Application and Implementation.

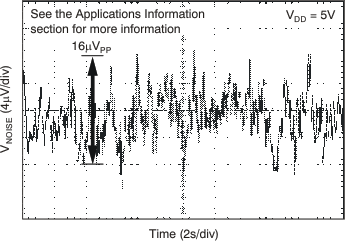

Figure 9. Internal Reference Noise 0.1 Hz to 10 Hz
DAC8560 tc_vref-iload_ab_las464.gif

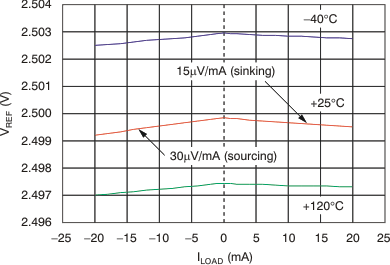

Figure 11. Internal Reference Voltage vs Load Current (Grades A and B)
DAC8560 tc_vref-vdd_ab_las464.gif
Figure 13. Internal Reference Voltage vs Supply Voltage (Grades A and B)
