6.10 Typical Characteristics

Figure 6-1 Integral Nonlinearity vs Input Code

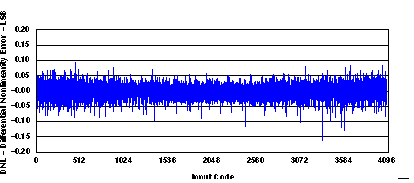

Figure 6-2 Differential Nonlinearity vs Input Code

Figure 6-3 Spurious-Free Dynamic Range vs Output Frequency

Figure 6-5 Spurious-Free Dynamic Range vs Output Frequency

Figure 6-7 Single-Tone Spectrum

Figure 6-9 Two-Tone IMD3 vs Output Frequency

Figure 6-11 Two-Tone Spectrum

Figure 6-13 Power vs Frequency

Figure 6-4 Spurious-Free Dynamic Range vs Output Frequency

Figure 6-6 Spurious-Free Dynamic Range vs Output Frequency

Figure 6-8 Single-Tone Spectrum

Figure 6-10 Two-Tone IMD3 vs Output Frequency

Figure 6-12 Two-Tone Spectrum

Figure 6-14 Power vs Frequency
