7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply Voltage Range(2) VDDDAC1, VDDDIG1, VDDL1_1, VDDL2_1, VDDCLK1, VDDT1, VDDCLK1, VDDTX1, VDDE1 –0.3 1.3 V
VDDR18, VDDIO18, VDDS18, VDDAPLL18, VDDOUT18, VDDA18, VDDAVCO18, VDDTX18 –0.3 2.45 V
VEE18N –2 0.3 V
Voltage between AGND and DGND –0.3 0.3 V
Pin Voltage Range(2) RX[0..7]+/- –0.5 VDDDIG1 + 0.5 V V
SDEN, SCLK, SDIO, SDO, TXENABLE, ALARM, RESET, SLEEP, TMS, TCLK, TDI, TDO, TRST, TESTMODE, GPI0, GPI1, GPO0, GPO1 –0.5 VDDIO + 0.5 V V
CLKOUT+/- –0.5 VDDTX18 + 0.5 V V
DACCLK+/-, SYSREF+/-, DACCLKSE –0.5 VDDCLK1 + 0.5 V V
SYNC0+/-, SYNC1+/- –0.5 VDDS18 + 0.5 V V
VOUT1+/-, VOUT2+/- –0.5 VDDAOUT18 + 0.5 V V
RBIAS, EXTIO, ATEST –0.5 VDDAOUT18 + 0.5 V V
IFORCE, VSENSE –0.5 VDDDIG1 + 0.5 V V
AMUX1, AMUX0 –0.5 VDDT1 + 0.5 V V
Peak input current (any input) 20 mA
Peak total input current (all inputs) –30 mA
Junction temperature TJ 150 °C
Operating free-air temperature, TA –40 85 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Measured with respect to AGND or DGND.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±1000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±250
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
TJ Recommended operating temperature 105 °C
Maximum rated operating junction temperature(1) 125 °C
TA Recommended free-air temperature –40 85 °C
Supply Voltage Range VDDA18, VDDAPLL18, VDDS18, VDDIO18, VDDR18, VDDAPLL18, VDDOUT18, VDDAVCO18 1.71 1.8 1.89 V
VDDDIG1 VDDA1, VDDT1, VDDAPLL1, VDDCLK1, VDDL1_1, VDDL2_1, VDDTX1, VDDE1 0.95 1 1.05 V
VEE18N -1.89 -1.8 -1.71 V
(1) Prolonged use at this junction temperature may increase the device failure-in-time (FIT) rate

7.4 Thermal Information

THERMAL METRIC(1) AAV (FCBGA) UNIT
144 PINS
RθJA Junction-to-ambient thermal resistance 25 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 1.0 °C/W
RθJB Junction-to-board thermal resistance 7.7 °C/W
ψJT Junction-to-top characterization parameter 0.1 °C/W
ψJB Junction-to-board characterization parameter 7.7 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

7.5 Electrical Characteristics - DC Specifications

Typical values at TA = 25°C, full temperature range is TMIN = –40°C to TMAX = 85°C, nominal supplies, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DC ACCURACY
Resolution 14 bits
ANALOG OUTPUT
Full scale output signal current 10 30 40 mA

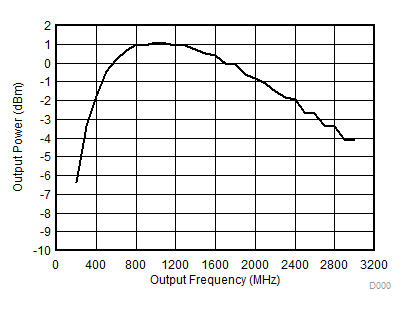

P(OUTFS) Full scale output power 50-Ω load
2.1 GHz output frequency
 0 dBm
Output Compliance Range 1.3 2.3 V
REFERENCE OUTPUT: EXTIO
VREF Reference output voltage 0.9 V
Reference output current 100 nA
Reference voltage drift ±8 ppm/°C
POWER SUPPLY CURRENT AND CONSUMPTION
1 V Digital supplies: VDDDIG1 MODE 1: 2 TX, 1IQ/slice, LMFS = 8411, PLL on, 12x Interpolation, fINPUT = 737.28 MSPS, fDAC = 8847.36 MSPS, NCO’s = 2.14 GHz, CLKTX Disabled 1478 2290 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1510 1758 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 281 290 mA
-1.8 V Supply: VEE18N 159 180 mA
PDIS Power Dissipation 3779 4894 mW
1 V Digital supplies: VDDDIG1 MODE 2: 1 TX, 1IQ/slice, LMFS = 4211, PLL on, 12x Interpolation, fINPUT = 737.28 MSPS, fDAC = 8847.36 MSPS, NCO = 2.14 GHz, CLKTX Disabled 1110 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1303 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 257 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 3162 mW
1V Digital supplies: VDDDIG1 MODE 3: 2 TX, 2 IQ/slice, LMFS = 8821, PLL on, 24x Interpolation, fINPUT = 368.64 MSPS, fDAC = 8847.36 MSPS, NCO1 = 1.84 GHz, NCO2 = 2.15 GHz, CLKTX Disabled 2253 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1522 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 280 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 4565 mW
1 V Digital supplies: VDDDIG1 MODE 4: 1 TX, 2 IQ/slice, LMFS = 4421, PLL on, 24x Interpolation, fINPUT = 368.64 MSPS, fDAC = 8847.36 MSPS, NCO1 = 1.84 GHz, NCO2 = 2.15 GHz, CLKTX Disabled 1701 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1314 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 256 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 3763 mW
1 V Digital supplies: VDDDIG1 MODE 5: 2 TX, 1 IQ/slice, LMFS = 4421, PLL on, 18x Interpolation, fINPUT = 491.52 MSPS, fDAC = 8847.36 MSPS, NCO1 = 2.14 GHz, CLKTX Disabled 1328 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1312 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 249 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 3374 mW
1 V Digital supplies: VDDDIG1 MODE 6: 1 TX, 1 IQ/slice, LMFS = 2221, PLL on, 18x Interpolation, fINPUT = 491.52 MSPS, fDAC = 8847.36 MSPS, NCO1 = 2.14 GHz, CLKTX Disabled 1027 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1206 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 248 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 2964 mW
1 V Digital supplies: VDDDIG1 MODE 7: 2 TX, 1 IQ/slice, LMFS = 8411, PLL on, 6x Interpolation, fINPUT = 983.04 MSPS, fDAC = 5898.24 MSPS, NCO1 = 2.14 GHz, CLKTX Disabled 1157 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1125 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 246 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 3011 mW
1 V Digital supplies: VDDDIG1 MODE 8: 1 TX, 1 IQ/slice, LMFS = 4211, PLL on, 6x Interpolation, fINPUT = 983.04 MSPS, fDAC = 5898.24 MSPS, NCO1 = 2.14 GHz, CLKTX Disabled 848 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 647 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 230 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 2195 mW
1 V Digital supplies: VDDDIG1 MODE 9: 2 TX, 2 IQ/slice, LMFS = 4831, PLL on, 24x Interpolation, fINPUT = 368.64 MSPS, fDAC = 8847.36 MSPS, NCO1 = 2.14 GHz, CLKTX Disabled 2131 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1324 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 251 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 4192 mW
1 V Digital supplies: VDDDIG1 MODE 10: 1 TX, 2 IQ/slice, LMFS = 2431, PLL on, 24x Interpolation, fINPUT = 368.64 MSPS, fDAC = 8847.36 MSPS, NCO1 = 2.14 GHz, CLKTX Disabled 1635 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 1212 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 250 mA
-1.8 V Supply: VEE18N 159 mA
PDIS Power Dissipation 3583 mW
1 V Digital supplies: VDDDIG1 MODE 11: Power down mode, no clock, DACs in sleep, SerDes in sleep 63 568 mA
1 V Analog supplies: VDDA1 VDDACLK1 VDDTX1 VDDAPLL1 VDDT1 VDDE1 18 105 mA
1.8 V Supplies: VDDA18 VDDOUT18 VDDAVCO18 VDDAPLL18 VDDR18 VDDIO18 VDDS18 VDDTX18 47 51 mA
-1.8 V Supply: VEE18N 23 28 mA
PDIS Power Dissipation 208 815 mW
VDDTX1 fDAC = 8847 MSPS, Clock Out Divider Enabled 25 mA
fDAC = 5898 MSPS, Clock Out Divider Enabled 19 mA
VDDTX18 Clock Out Enabled 16 mA

7.6 Electrical Characteristics - Digital Specifications

Typical values at TA = 25°C, full temperature range is TMIN = –40°C to TMAX = 85°C, nominal supplies, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
CML SerDes INPUTS: RX[7:0]+/-
VDIFF Receiver input amplitude 50 1200 mV
VCOM Input common mode voltage TERM = 111 600 mV
TERM = 001 700
TERM = 100 0
TERM = 101 250
ZDDIFF Internal differential termination 85 100 115 Ω
fSerDes SerDes bit rate 0.78125 12.5 Gbps
DIFFERENTIAL CLOCK INPUTS: SYSREF+/-, DACCLK+/-
fDACCLK DACCLK input frequency 0.1 9 GHz
VCOM Differential input common mode voltage 0.5 V
VI(DPP) Differential input peak-to-peak voltage 800 2000 mV
ZT Internal termination 100 Ω
CL Input capacitance 2 pF
Duty cycle (DACCLK only) 40% 60%
LVDS OUTPUT: SYNC0+/-, SYNC1+/-
VCOM Output common mode voltage 1.2 V
ZT Internal termination 100 Ω
VOD Differential output voltage swing 500 mV
CML OUTPUT: CLKTX+/-
VOD CML OUTPUT: CLKTX+/- 1300 mV
CMOS INTERFACE: SDEN, SCLK, SDIO, SDO, TXENABLE, ALARM, RESET, SLEEP, TMS, TCLK, TDI, TDO, TRST, TESTMODE, SYNCSE1, SYNCSE2
VIH High-level input voltage 0.7 x VDDIO V
VIL Low-level input voltage 0.3 x VDDIO V
IIH High-level input current –40 40 µA
IIL Low-level input current –40 40 µA
CI CMOS input capacitance 2 pF
VOH High-level output voltage ILOAD = –100 µA VDDIO – 0.2 V
ILOAD = –2 mA 0.8 x VDDIO
VOL Low-level output voltage ILOAD = 100 µA 0.2 V
ILOAD = 2 mA 0.5
LATENCY
RX SerDes Digital Delay full rate, RATE = “00” 34 UI
half rate, RATE = “01” 29
quarter rate, RATE = “10” 26.5
eighth rate, RATE = “11” 26.25
SerDes output to JED204B elastic buffer input latency 21 - 39 JESD clock cycles
Digital Latency: JESD Buffer to DAC Output LMFSHD = 82121, 6x Interpolation 856 DAC clock cycles
LMFSHD = 82121, 8x Interpolation 1120
LMFSHD = 82121, 12x Interpolation 1602
LMFSHD = 82121, 16x Interpolation 2091
LMFSHD = 42111 or 84111, 6x Interpolation 817
LMFSHD = 42111 or 84111, 8x Interpolation 1057
LMFSHD = 42111 or 84111, 10x Interpolation 1184
LMFSHD = 42111 or 84111, 12x Interpolation 1532
LMFSHD = 42111 or 84111, 16x Interpolation 1997
LMFSHD = 42111 or 84111, 18x Interpolation 2142
LMFSHD = 42111 or 84111, 24x Interpolation 2941
LMFSHD = 22210 or 44210, 8x Interpolation 1020
LMFSHD = 22210 or 44210, 12x Interpolation 1473
LMFSHD = 22210 or 44210, 16x Interpolation 1917
LMFSHD = 22210 or 44210, 18x Interpolation 2050
LMFSHD = 22210 or 44210, 20x Interpolation 2275
LMFSHD = 22210 or 44210, 24x Interpolation 2821
LMFSHD = 12410 or 24410, 16x Interpolation 1912
LMFSHD = 12410 or 24410, 24x Interpolation 2786
LMFSHD = 44210 or 88210, 8x Interpolation 916
LMFSHD = 44210 or 88210, 12x Interpolation 1317
LMFSHD = 44210 or 88210, 16x Interpolation 1709
LMFSHD = 44210 or 88210, 24x Interpolation 2509
LMFSHD = 24410 or 48410, 16x Interpolation 1672
LMFSHD = 24410 or 48410, 24x Interpolation 1593
SYSREF TO JESD LMFC RESET LMFSHD = 82121, 6x Interpolation 5 JESD clock cycles
LMFSHD = 82121, 8x Interpolation 5
LMFSHD = 82121, 12x Interpolation 5
LMFSHD = 82121, 16x Interpolation 5
LMFSHD = 42111 or 84111, 6x Interpolation 16
LMFSHD = 42111 or 84111, 8x Interpolation 16
LMFSHD = 42111 or 84111, 10x Interpolation 15
LMFSHD = 42111 or 84111, 12x Interpolation 15
LMFSHD = 42111 or 84111, 16x Interpolation 13
LMFSHD = 42111 or 84111, 18x Interpolation 15
LMFSHD = 42111 or 84111, 24x Interpolation 15
LMFSHD = 22210 or 44210, 8x Interpolation 8
LMFSHD = 22210 or 44210, 12x Interpolation 7
LMFSHD = 22210 or 44210, 16x Interpolation 6
LMFSHD = 22210 or 44210, 18x Interpolation 7
LMFSHD = 22210 or 44210, 20x Interpolation 5
LMFSHD = 22210 or 44210, 24x Interpolation 4
LMFSHD = 12410 or 24410, 16x Interpolation 9
LMFSHD = 12410 or 24410, 24x Interpolation 7
LMFSHD = 44210 or 88210, 8x Interpolation 29
LMFSHD = 44210 or 88210, 12x Interpolation 27
LMFSHD = 44210 or 88210, 16x Interpolation 26
LMFSHD = 44210 or 88210, 24x Interpolation 25
LMFSHD = 24410 or 48410, 16x Interpolation 8
LMFSHD = 24410 or 48410, 24x Interpolation 6

7.7 Electrical Characteristics - AC Specifications

Typical values at TA = 25°C, full temperature range is TMIN = –40°C to TMAX = 85°C, internal PLL/VCO clock mode, 12x Interpolation, 0 dBFS, fOUT = 2.14 GHz, I(OUTFS) = 40 mA, nominal supplies, LMFSHd = 84111, unless otherwise noted.
PARAMETER TEST CONDITIONS DAC38RF87/97 DAC38RF86/96 UNIT
MIN TYP MAX MIN TYP MAX
ANALOG OUTPUT
fDAC Maximum DAC sample rate 6.2 9 GSPS
AC PERFORMANCE - CW

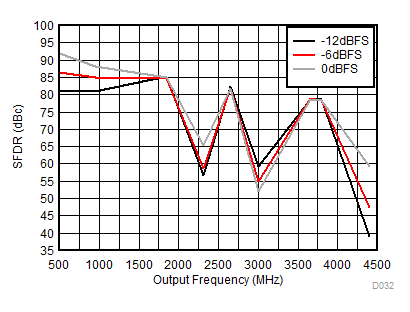

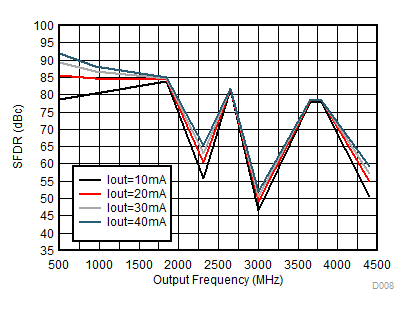

SFDR Spurious Free Dynamic Range 0 – fDAC/2 fCLK = 6.2 GHz, fOUT = 501 MHz 65 dBc
fCLK = 6.2 GHz, fOUT = 951 MHz 63
fCLK = 6.2 GHz, fOUT = 1851 MHz 59
fCLK = 6.2 GHz , fOUT = 2651 MHz 57
fCLK = 9 GHz, fOUT = 501 MHz 64
fCLK = 9 GHz, fOUT = 951 MHz 65
fCLK = 9 GHz, fOUT = 1851 MHz 62
fCLK = 9 GHz, fOUT = 2651 MHz 50
fCLK = 9 GHz , fOUT = 3651 MHz 51

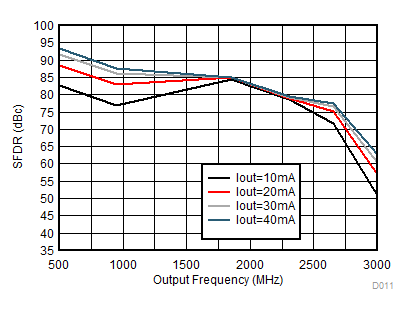

SFDR Spurious Free Dynamic Range within 500 MHz fOUT ± 250 MHz fCLK = 6.2 GHz, fOUT = 501 MHz 94 dBc
fCLK = 6.2 GHz, fOUT = 951 MHz 88
fCLK = 6.2 GHz, fOUT = 1851 MHz 85
fCLK = 6.2 GHz, fOUT = 2651 MHz 78
fCLK = 9 GHz, fOUT = 501 MHz 92
fCLK = 9 GHz, fOUT = 951 MHz 88
fCLK = 9 GHz, fOUT = 1851 MHz 85
fCLK = 9 GHz, fOUT = 2651 MHz 82
fCLK = 9 GHz, fOUT = 3651 MHz 78

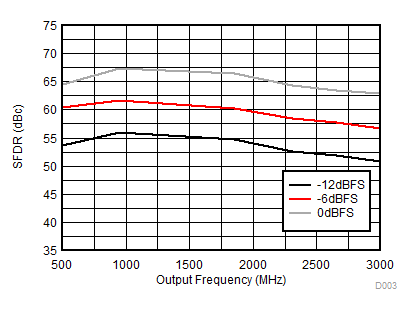

SFDR Spurious Free Dynamic Range excluding HD2, HD3 and CMP2 0 – fDAC/2 fCLK = 6.2 GHz, fOUT = 501 MHz 65 dBc
fCLK = 6.2 GHz, fOUT = 951 MHz 69
fCLK = 6.2 GHz, fOUT = 1851 MHz 66
fCLK = 6.2 GHz, fOUT = 2651 MHz 64
fCLK = 9 GHz, fOUT = 501 MHz 64
fCLK = 9 GHz , fOUT = 951 MHz 66
fCLK = 9 GHz, fOUT = 1851 MHz 65
fCLK = 9 GHz, fOUT = 2651 MHz 64
fCLK = 9 GHz, fOUT = 3651 MHz 62

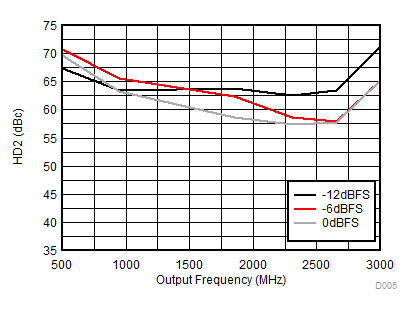

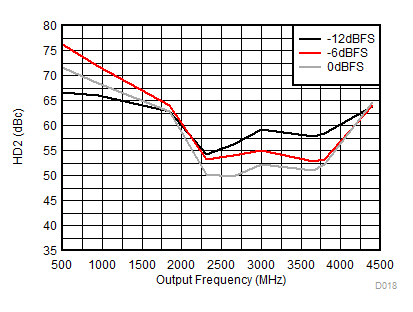

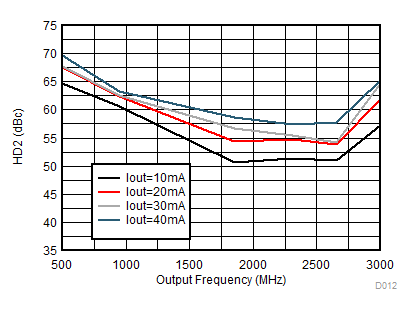

HD2 2nd Order Harmonic fCLK = 6.2 GHz, fOUT = 501 MHz 70 dBc
fCLK = 6.2 GHz, fOUT = 951 MHz 63
fCLK = 6.2 GHz, fOUT = 1851 MHz 59
fCLK = 6.2 GHz, fOUT = 2651 MHz 57
fCLK = 9 GHz, fOUT = 501 MHz 71
fCLK = 9 GHz, fOUT = 951 MHz 67
fCLK = 9 GHz, fOUT = 1851 MHz 62
fCLK = 9 GHz, fOUT = 2651 MHz 49
fCLK = 9 GHz, fOUT = 3651 MHz 51

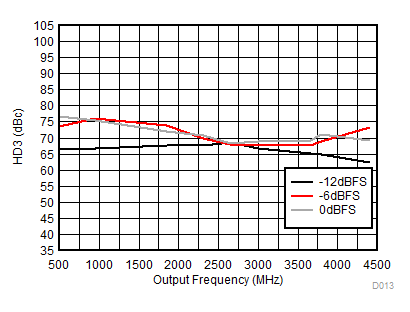

HD3 3rd Order Harmonic fCLK = 6.2 GHz, fOUT = 501 MHz 74 dBc
fCLK = 6.2 GHz, fOUT = 951 MHz 72
fCLK = 6.2 GHz, fOUT = 1851 MHz 72
fCLK = 6.2 GHz, fOUT = 2651 MHz 74
fCLK = 9 GHz, fOUT = 501 MHz 74
fCLK = 9 GHz, fOUT = 951 MHz 73
fCLK = 9 GHz, fOUT = 1851 MHz 72
fCLK = 9 GHz, fOUT = 2651 MHz 69
fCLK = 9 GHz, fOUT = 3651 MHz 69
CMP2 Fs/2 clock mixing product (Fs/2 – fOUT) fCLK = 6.2 GHz, fOUT = 501 MHz 79 dBc
fCLK = 6.2 GHz, fOUT = 951 MHz 80
fCLK = 6.2 GHz, fOUT = 1851 MHz 76
fCLK = 6.2 GHz, fOUT = 2651 MHz 76
fCLK = 9 GHz, fOUT = 501 MHz 70
fCLK = 9 GHz, fOUT = 951 MHz 67
fCLK = 9 GHz, fOUT = 1851 MHz 67
fCLK = 9 GHz, fOUT = 2651 MHz 63
fCLK = 9 GHz, fOUT = 3651 MHz 59
CMP4+ Fs/N (N = 4, 8, 16) clock mixing product (fOUT ± Fs/N) fCLK = 6.2 GHz, fOUT = 501 MHz 90 dBc
fCLK = 6.2 GHz, fOUT = 951 MHz 87
fCLK = 6.2 GHz, fOUT = 1851 MHz 83
fCLK = 6.2 GHz, fOUT = 2651 MHz 76
fCLK = 9 GHz, fOUT = 501 MHz 91
fCLK = 9 GHz, fOUT = 951 MHz 88
fCLK = 9 GHz, fOUT = 1851 MHz 85
fCLK = 9 GHz, fOUT = 2651 MHz 81
fCLK = 9 GHz, fOUT = 3651 MHz 74
IMD3 Third-order two-tone intermodulation distortion fCLK = 6.2 GHz, fOUT = 501 ± 5 MHz, –6 dBFS each tone 83 dBc
fCLK = 6.2 GHz, fOUT = 951 ± 5 MHz, –6 dBFS each tone 78
fCLK = 6.2 GHz, fOUT = 1851 ± 5 MHz, –6 dBFS each tone 76
fCLK = 6.2 GHz, fOUT = 2651 ± 5 MHz, –6 dBFS each tone 76
fCLK = 9 GHz, fOUT = 501 ± 5 MHz, –6 dBFS each tone 84
fCLK = 9 GHz, fOUT = 951 ± 5 MHz, –6 dBFS each tone 80
fCLK = 9 GHz, fOUT = 1851 ± 5 MHz, –6 dBFS each tone 74
fCLK = 9 GHz, fOUT = 2651 ± 5 MHz, –6 dBFS each tone 73
fCLK = 9 GHz, fOUT = 3651 ± 5 MHz, –6 dBFS each tone 71
NSD Noise Spectral Density > 50 MHz offset fCLK = 6.2 GHz, fOUT = 501 MHz –161 dBFS/Hz
fCLK = 6.2 GHz, fOUT = 951 MHz –160
fCLK = 6.2 GHz, fOUT = 1851 MHz –156
fCLK = 6.2 GHz, fOUT = 2651 MHz –151
fCLK = 9 GHz, fOUT = 501 MHz –171
fCLK = 9 GHz, fOUT = 951 MHz –166
fCLK = 9 GHz, fOUT = 1851 MHz –156
fCLK = 9 GHz, fOUT = 2651 MHz –155
fCLK = 9 GHz, fOUT = 3651 MHz –153
fCLK = 6.2 GHz, fOUT = 501 MHz, –9 dBFS –163
fCLK = 6.2 GHz, fOUT = 951 MHz, –9 dBFS –163
fCLK = 6.2 GHz, fOUT = 1851 MHz, –9 dBFS –160
fCLK = 9 GHz, fOUT = 2651 MHz, –9 dBFS –162
fCLK = 9 GHz, fOUT = 3651 MHz, –9 dBFS –160
Isolation Isolation between DAC A and DAC B analog output fOUT = 1856 MHz 60 60 dBc
fOUT = 3105 MHz 55 55
AC PERFORMANCE – Modulated Signals
ACPR WCDMA 1 carrier adjacent channel power ratio fCLK = 5898.24 MHz, fOUT = 950 MHz 77 dBc
fCLK = 5898.24 MHz, fOUT = 2140 MHz 73
fCLK = 8847.36 MHz , fOUT = 950 MHz 75
fCLK = 8847.36 MHz, fOUT = 2140 MHz 69
Alt-ACLR WCDMA 1 carrier alternate channel ACPR fCLK = 5898.24 MHz , fOUT = 950 MHz 82 dBc
fCLK = 5898.24 MHz, fOUT = 2140 MHz 78
fCLK = 8847.36 MHz , fOUT = 950 MHz 81
fCLK = 8847.36 MHz, fOUT = 2140 MHz 77
LTE20 20 MHz LTE adjacent channel power ratio fCLK = 5898.24 MHz, fOUT = 800 MHz 75 dBc
fCLK = 5898.24 MHz, fOUT = 2650 MHz 69
fCLK = 8847.36 MHz , fOUT = 800 MHz 73
fCLK = 8847.36 MHz, fOUT = 2650 MHz 67
fCLK = 8847.36 MHz, fOUT = 3700 MHz 64

7.8 PLL/VCO Electrical Characteristics

Typical values at TA = 25°C, full temperature range is TMIN = –40°C to TMAX = 85°C, internal PLL/VCO clock mode, 12x Interpolation, 0 dBFS, fOUT = 1.8 GHz, I(OUTFS) = 40 mA, nominal supplies, LMFSHd = 84111, unless otherwise noted.
PARAMETER TEST CONDITIONS DAC38RF87/97 DAC38RF86/96 UNIT
MIN TYP MAX MIN TYP MAX
PLL/VCO
fref Reference clock frequency 100 fVCO /4 100 fVCO /4 MHz
fPFD Frequency of phase & frequency detector 100 500 100 500 MHz
fvcoL Low VCO operating frequency 5240 6720 MHz
fvcoH High VCO operating frequency 7970 9000 MHz
fBW Loop filter bandwidth 500 500 KHz
Low VCO Phase Noise
Frequency Offset 600 KHz fvco = 6 GHz,CP = 5, fPFD = 500 MHz, measured at output frequency = 1.8 GHz -125 dBc/Hz
1.2 MHz -132
1.8 MHz -137
6.0 MHz -148
High VCO Phase Noise
Frequency Offset 600 kHz fvco = 9 GHz, CP=5, fPFD= 500 MHz, measured at output frequency = 1.8 GHz -124 dBc/Hz
1.2 MHz -133
1.8 MHz -138
6.0 MHz -149

7.9 Timing Requirements

MIN NOM MAX UNIT
DIGITAL INPUT TIMING SPECIFICATIONS
TIMING: SYSREF+/-
ts(SYSREF) Setup time, SYSREF+/- valid to rising edge of DACCLK+/- SYSREF Capture assist disabled 50 ps
th(SYSREF) Hold time, SYSREF+/- valid after rising edge of DACCLK+/- SYSREF Capture assist disabled 50 ps
TIMING: SERIAL PORT
ts(/SDEN) Setup time, SDEN to rising edge of SCLK 20 ns
ts(SDIO) Setup time, SDIO valid to rising edge of SCLK 10 ns
th(SDIO) Hold time, SDIO valid after rising edge of SCLK 5 ns
t(SCLK) Period of SCLK temperature sensor read 1 µs
All other registers 100 ns
td(Data) Data output delay after falling edge of SCLK 25 ns
tRESET Minimum RESET pulse width 25 ns
ANALOG OUTPUT
ts(DAC) Output settling time to 0.1% 1 ns
tr Output rise time 10% to 90% 50 ns
tf Output fall time 90% to 10% 50 ns
LATENCY
RX SerDes AnalogDelay 250 ps
DAC wake-up time IOUT current settling to 1% of IOUTFS from deep sleep 90 µs
DAC sleep time IOUT current settling to less than 1% of IOUTFS in deep sleep 90 µs

7.10 Typical Characteristics, DAC38RF86 and DAC38RF96

Unless otherwise noted, all plots are at TA = 25°C, nominal supply voltages, fDAC = 9 GSPS, 12x interpolation, 0 dBFS digital input, 40 mA full scale output current , LMFSHd = 84111 and on-chip PLL mode is enabled.

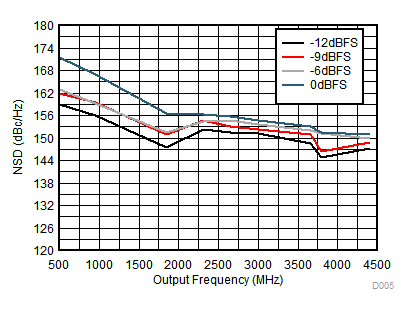

DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D035_NSDvsDigS_DAC38RF80_SLASEA3.gif
Measured 50 MHz from carrier
Figure 1. NSD vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D033_HD2vsDigS_DAC38RF80_SLASEA3.gif
Figure 3. HD2 vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D013_HD3vsDigS_nopeaks_RF80.gif
Figure 5. HD3 vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D001_SFDR_no_HD_CMP__DigS_DAC38RF80_SLASEA3.gif
Excludes HD2, HD3 and CMP2
Figure 7. SFDR vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D002_SFDR250M_DigS_DAC38RF80_SLASEA3.gif
±250 MHz Span
Figure 9. SFDR vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D036_IMD3vsDigS_DAC38RF80_SLASEA3.gif
Figure 11. IMD3 vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D031_Pout_DAC38RF80_SLASEA3.gif
Figure 13. Power vs Output Frequency
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D008_9G_GSMPLL_SLASEA3.gif
VCO frequency = 8.85 GHz Measured at 1.8 GHz
Figure 15. VCO Phase Noise vs Offset Frequency Over Charge pump current
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D040_NSDvsIFS_DAC38RF80_SLASEA3.gif
Measured 50 MHz from carrier
Figure 2. NSD vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D038_HD2vsIFS_DAC38RF80_SLASEA3.gif
Figure 4. HD2 vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D014_HD3vsIFS_nopeaks_RF80.gif
Figure 6. HD3 vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D001_SFDR_no_HD_CMP__IoutFS_DAC38RF80_SLASEA3.gif
Excludes HD2, HD3 and CMP2
Figure 8. SFDR vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D002_SFDR250M_IoutFS_DAC38RF80_SLASEA3.gif
± 250 MHz Span
Figure 10. SFDR vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 IMD3vsIFS_DAC38RF80_SLASEA3.gif
Figure 12. IMD3 vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 RF80_Isolation_SLASEA3.gif
Figure 14. Isolation vs Output Frequency

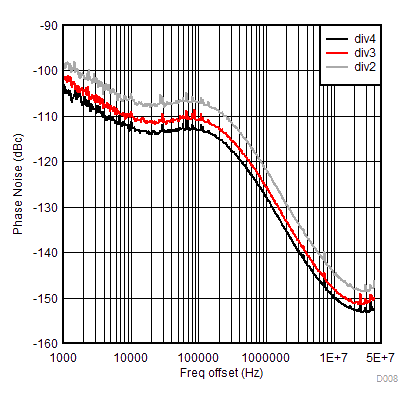

DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D009_9G_GSMPLL_CLKTX_SLASEA3.gif
VCO frequency = 8.85 GHz
Figure 16. VCO1 Output Clock Phase Noise vs Offset frequency Over Divider Ratio

7.10.1 Typical Characteristics, DAC38RF87 and DAC38RF97

Unless otherwise noted, all plots are at TA = 25°C, nominal supply voltages, fDAC = 6.2 GSPS, 12x interpolation, 0dBFS digital input, 40 mA full scale output current , LMFSHd = 84111 and on-chip PLL mode is enabled.

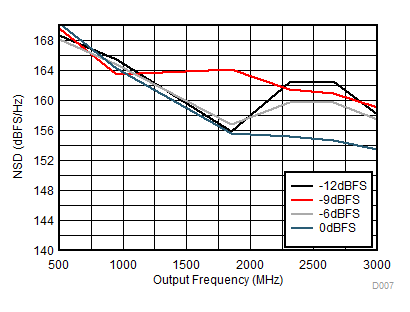

DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D007_NSDvsDigScale_DAC38RF87_SLASEF4.gif
Measured 50 MHz from carrier
Figure 17. NSD vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D005_HD2vsDigScale_DAC38RF87_SLASEF4.gif
Figure 19. HD2 vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D006_HD3vsDigScale_DAC38RF87_SLASEF4.gif
Figure 21. HD3 vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D003_SFDR2_vsDigS_DAC38RF87_SLASEF4.gif
Excludes HD2, HD3 and CMP2
Figure 23. SFDR vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D004_SFDR3_vsDigS_DAC38RF87_SLASEF4.gif
± 250 MHz Span
Figure 25. SFDR vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D008_IMD3vsDigScale_DAC38RF87_SLASEF4.gif
Figure 27. IMD3 vs Output Frequency Over Input Scale
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D001_Pout_DAC38RF87_SLASEF4.gif
Figure 29. Power vs Output Frequency
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D029_6G_nonGSMPLL_SLASEA3.gif
VCO frequency = 5.9 GHz measured at 1.8 GHz
Figure 31. VCO Phase Noise vs Offset Frequency Over Charge Pump Current
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D014_NSDvsIFS_DAC38RF87_SLASEF4.gif
Measured 50 MHz from carrier
Figure 18. NSD vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D012_HD2vsIFS_DAC38RF87_SLASEF4.gif
Figure 20. HD2 vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D013_HD3vsIFS_DAC38RF87_SLASEF4.gif
Figure 22. HD3 vs Output Frequency Over Output Current IoutFS

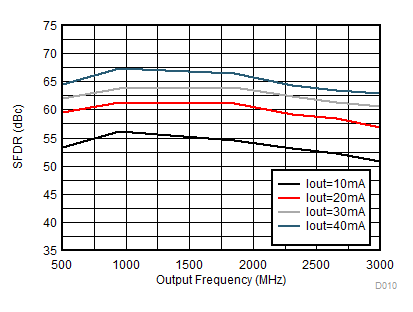

DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D010_SFDR2vsIFS_DAC38RF87_SLASEF4.gif
Excludes HD2, HD3 and CMP2
Figure 24. SFDR vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D011_SFDR3vsIFS_DAC38RF87_SLASEF4.gif
± 250 MHz Span
Figure 26. SFDR vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D015_IMD3vsIFS_DAC38RF87_SLASEF4.gif
Figure 28. IMD3 vs Output Frequency Over Output Current IoutFS
DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 RF80_Isolation_SLASEA3.gif
Figure 30. Isolation vs Output Frequency

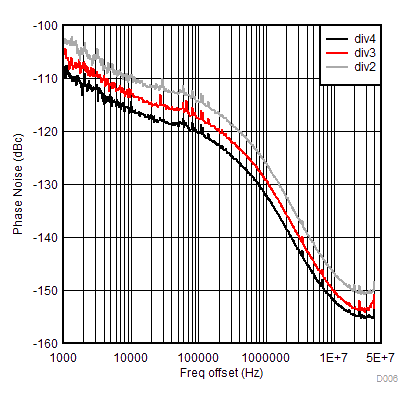

DAC38RF86 DAC38RF96 DAC38RF87 DAC38RF97 D007_6G_GSMPLL_CLKTX_SLASEA3.gif
VCO frequency = 5.9 GHz
Figure 32. VCO Output clock Phase Noise vs Offset Frequency Over Divider Ratio
