7 Specifications

7.1 Absolute Maximum Ratings(1)(2)(3)

MIN MAX UNIT
Supply voltage, VA 6.5 V
Voltage on any input pin −0.3 6.5 V
Input current at any pin(4) 10 mA
Package input current(4) 20 mA
Power consumption at TA = 25°C See(5)
Junction temperature 150 °C
Storage temperature, Tstg −65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltages are measured with respect to GND = 0 V, unless otherwise specified.
(3) If Military/Aerospace specified devices are required, please contact the Texas Instruments Semiconductor Sales Office/Distributors for availability and specifications.
(4) When the input voltage at any pin exceeds 5.5 V or is less than GND, the current at that pin must be limited to 10 mA. The 20 mA maximum package input current rating limits the number of pins that can safely exceed the power supplies with an input current of
10 mA to two.
(5) The absolute maximum junction temperature (TJmax) for this device is 150°C. The maximum allowable power dissipation is dictated by TJmax, the junction-to-ambient thermal resistance (θJA), and the ambient temperature (TA), and can be calculated using the formula PDMAX = (TJmax − TA) / θJA. The values for maximum power dissipation is reached only when the device is operated in a severe fault condition (that is, when input or output pins are driven beyond the operating ratings, or the power supply polarity is reversed).

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)(2) ±2500 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(3) ±250
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) Human body model is 100-pF capacitor discharged through a 1.5-kΩ resistor. Machine model is 220 pF discharged through 0 Ω.
(3) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

See (1)
MIN MAX UNIT
Operating temperature −40 105 °C
Supply voltage, VA 2.7 5.5 V
Reference voltage, VREFIN 1 VA V
Digital input voltage (2) 0 5.5 V
Output load 0 1500 pF
SCLK frequency 40 MHz
(1) All voltages are measured with respect to GND = 0 V, unless otherwise specified.
(2) The inputs are protected as shown below. Input voltage magnitudes up to 5.5 V, regardless of VA, does not cause errors in the conversion result. For example, if VA is 3 V, the digital input pins can be driven with a 5-V logic device.
DAC084S085 20195404.gif

7.4 Thermal Information

THERMAL METRIC(1)(2) DAC084S085 UNIT
DGS (VSSOP) DSC (WSON)
10 PINS 10 PINS
RθJA Junction-to-ambient thermal resistance 240 250 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 53.3 40.7 °C/W
RθJB Junction-to-board thermal resistance 78.9 23.7 °C/W
ψJT Junction-to-top characterization parameter 4.8 0.4 °C/W
ψJB Junction-to-board characterization parameter 77.6 23.8 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A 4.7 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
(2) Reflow temperature profiles are different for lead-free packages..

7.5 Electrical Characteristics

The following specifications apply for VA = 2.7 V to 5.5 V, VREFIN = VA, CL = 200 pF to GND, fSCLK = 30 MHz, input code range 3 to 252. All limits are at TA = 25°C, unless otherwise specified.
PARAMETER TEST CONDITIONS MIN(1) TYP(1) MAX(1) UNIT
STATIC PERFORMANCE
Resolution TMIN ≤ TA ≤ TMAX 8 Bits
Monotonicity TMIN ≤ TA ≤ TMAX 8 Bits
INL Integral non-linearity TA = 25°C ±0.14 LSB
TMIN ≤ TA ≤ TMAX ±0.5
DNL Differential non-linearity VA = 2.7 V to 5.5 V TA = 25°C −0.02 +0.04 LSB
TMIN ≤ TA ≤ TMAX −0.13 +0.18
ZE Zero code error IOUT = 0 mA TA = 25°C +4 mV
TMIN ≤ TA ≤ TMAX +15
FSE Full-scale error IOUT = 0 mA TA = 25°C −0.1 %FSR
TMIN ≤ TA ≤ TMAX −0.75
GE Gain error All ones Loaded to DAC register TA = 25°C −0.2 %FSR
TMIN ≤ TA ≤ TMAX −1
ZCED Zero code error drift −20 µV/°C
TC GE Gain error tempco VA = 3 V −0.7 ppm/°C
VA = 5 V −1
OUTPUT CHARACTERISTICS
Output voltage range See (2), TMIN ≤ TA ≤ TMAX 0 VREFIN V
IOZ High-impedance output leakage current(2) TMIN ≤ TA ≤ TMAX ±1 µA
ZCO Zero code output VA = 3 V, IOUT = 200 µA 1.3 mV
VA = 3 V, IOUT = 1 mA 6
VA = 5 V, IOUT = 200 µA 7
VA = 5 V, IOUT = 1 mA 10
FSO Full scale output VA = 3 V, IOUT = 200 µA 2.984 V
VA = 3 V, IOUT = 1 mA 2.934
VA = 5 V, IOUT = 200 µA 4.989
VA = 5 V, IOUT = 1 mA 4.958
IOS Output short-circuit current (source) VA = 3 V, VOUT = 0 V,
Input Code = FFh
–56 mA
VA = 5 V, VOUT = 0 V,
Input Code = FFh
–69
IOS Output short-circuit current (sink) VA = 3 V, VOUT = 3 V,
Input Code = 00h
52 mA
VA = 5 V, VOUT = 5 V,
Input Code = 00h
75
IO Continuous output
current(2)
Avaliable on each DAC output, TMIN ≤ TA ≤ TMAX 11 mA
CL Maximum load capacitance RL = ∞ 1500 pF
RL = 2 kΩ 1500
ZOUT DC output impedance 7.5 Ω
REFERENCE INPUT CHARACTERISTICS
VREFIN Input range minimum 0.2 V
TMIN ≤ TA ≤ TMAX 1
Input range maximum TMIN ≤ TA ≤ TMAX VA V
Input impedance 30
LOGIC INPUT CHARACTERISTICS
IIN Input current(2) TMIN ≤ TA ≤ TMAX ±1 µA
VIL Input low voltage(2) VA = 3 V TA = 25°C 0.9 V
TMIN ≤ TA ≤ TMAX 0.6
VA = 5 V TA = 25°C 1.5 V
TMIN ≤ TA ≤ TMAX 0.8
VIH Input high voltage(2) VA = 3 V TA = 25°C 1.4 V
TMIN ≤ TA ≤ TMAX 2.1
VA = 5 V TA = 25°C 2.1 V
TMIN ≤ TA ≤ TMAX 2.4
CIN Input capacitance(2) TMIN ≤ TA ≤ TMAX 3 pF
POWER REQUIREMENTS
VA Supply voltage minimum TMIN ≤ TA ≤ TMAX 2.7 V
Supply voltage maximum TMIN ≤ TA ≤ TMAX 5.5 V
IN Normal supply current (output unloaded) fSCLK = 30 MHz VA = 2.7 V
to 3.6 V
TA = 25°C 370 µA
TMIN ≤ TA ≤ TMAX 485
VA = 4.5 V
to 5.5 V
TA = 25°C 500 µA
TMIN ≤ TA ≤ TMAX 650
fSCLK = 0 MHz VA = 2.7 V
to 3.6 V
350 µA
VA = 4.5 V
to 5.5 V
460 µA
IPD Power-down supply current (output unloaded, SYNC = DIN = 0 V after PD mode loaded) All PD Modes(2) VA = 2.7 V
to 3.6 V
TA = 25°C 0.1 µA
TMIN ≤ TA ≤ TMAX 1
VA = 4.5 V
to 5.5 V
TA = 25°C 0.15 µA
TMIN ≤ TA ≤ TMAX 1
PN Normal supply power (output unloaded) fSCLK = 30 MHz VA = 2.7 V
to 3.6 V
TA = 25°C 1.1 mW
TMIN ≤ TA ≤ TMAX 1.7
VA = 4.5 V
to 5.5 V
TA = 25°C 2.5 mW
TMIN ≤ TA ≤ TMAX 3.6
fSCLK = 0 MHz VA = 2.7 V
to 3.6 V
1.1 mW
VA = 4.5 V
to 5.5 V
2.3 mW
PPD Power-down supply power (output unloaded, SYNC = DIN = 0 V after PD mode loaded) All PD Modes(2) VA = 2.7 V
to 3.6 V
TA = 25°C 0.3 µW
TMIN ≤ TA ≤ TMAX 3.6
VA = 4.5 V
to 5.5 V
TA = 25°C 0.8 µW
TMIN ≤ TA ≤ TMAX 5.5
(1) Typical figures are at TJ = 25°C, and represent most likely parametric norms. Test limits are specified to AOQL (Average Outgoing Quality Level).
(2) This parameter is specified by design and/or characterization and is not tested in production.

7.6 Timing Requirements

Values shown in this table are design targets and are subject to change before product release.
The following specifications apply for VA = 2.7 V to 5.5 V, VREFIN = VA, CL = 200 pF to GND, fSCLK = 30 MHz, input code range 3 to 252. All limits are at TA = 25°C, unless otherwise specified.
MIN(1) TYP(1) MAX(1) UNIT
fSCLK SCLK frequency TA = 25°C 40 MHz
TMIN ≤ TA ≤ TMAX 30
ts Output voltage settling time(2) 40h to C0h code change
RL = 2 kΩ, CL = 200 pF
TA = 25°C 3 µs
TMIN ≤ TA ≤ TMAX 4.5
SR Output slew rate 1 V/µs
Glitch impulse Code change from 80h to 7Fh 12 nV-sec
Digital feedthrough 0.5 nV-sec
Digital crosstalk 1 nV-sec
DAC-to-DAC crosstalk 3 nV-sec
Multiplying bandwidth VREFIN = 2.5 V ± 0.1 Vpp 160 kHz
Total harmonic distortion VREFIN = 2.5 V ± 0.1 Vpp
input frequency = 10 kHz
70 dB
tWU Wake-up time VA = 3 V 6 µsec
VA = 5 V 39 µsec
1/fSCLK SCLK cycle time TA = 25°C 25 ns
TMIN ≤ TA ≤ TMAX 33
tCH SCLK high time TA = 25°C 7 ns
TMIN ≤ TA ≤ TMAX 10
tCL SCLK low Time TA = 25°C 7 ns
TMIN ≤ TA ≤ TMAX 10
tSS SYNC set-up time prior to SCLK falling edge TA = 25°C 4 ns
TMIN ≤ TA ≤ TMAX 10
tDS Data set-up time prior to SCLK falling edge TA = 25°C 1.5 ns
TMIN ≤ TA ≤ TMAX 3.5
tDH Data hold time after SCLK falling edge TA = 25°C 1.5 ns
TMIN ≤ TA ≤ TMAX 3.5
tCFSR SCLK fall prior to rise of SYNC TA = 25°C 0 ns
TMIN ≤ TA ≤ TMAX 3
tSYNC SYNC high time TA = 25°C 6 ns
TMIN ≤ TA ≤ TMAX 10
(1) Typical figures are at TJ = 25°C, and represent most likely parametric norms. Test limits are specified to AOQL (Average Outgoing Quality Level).
(2) This parameter is specified by design and/or characterization and is not tested in production.

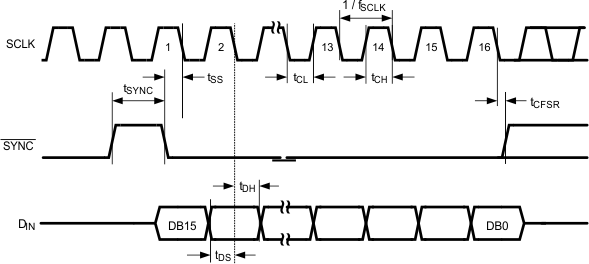

DAC084S085 20195406.gif Figure 1. Serial Timing Diagram
DAC084S085 20195405.gif Figure 2. Input / Output Transfer Characteristic

7.7 Typical Characteristics

VREF = VA, fSCLK = 30 MHz, TA = 25°C, Input Code Range 3 to 252, unless otherwise stated
DAC084S085 20195452.png Figure 3. INL at VA = 3 V
DAC084S085 20195454.png Figure 5. DNL at VA = 3 V
DAC084S085 20195456.png Figure 7. INL/DNL vs VREFIN at VA = 3 V
DAC084S085 20195450.png Figure 9. INL/DNL vs fSCLK at VA = 2.7 V
DAC084S085 20195424.png Figure 11. INL/DNL vs Clock Duty Cycle at VA = 3 V

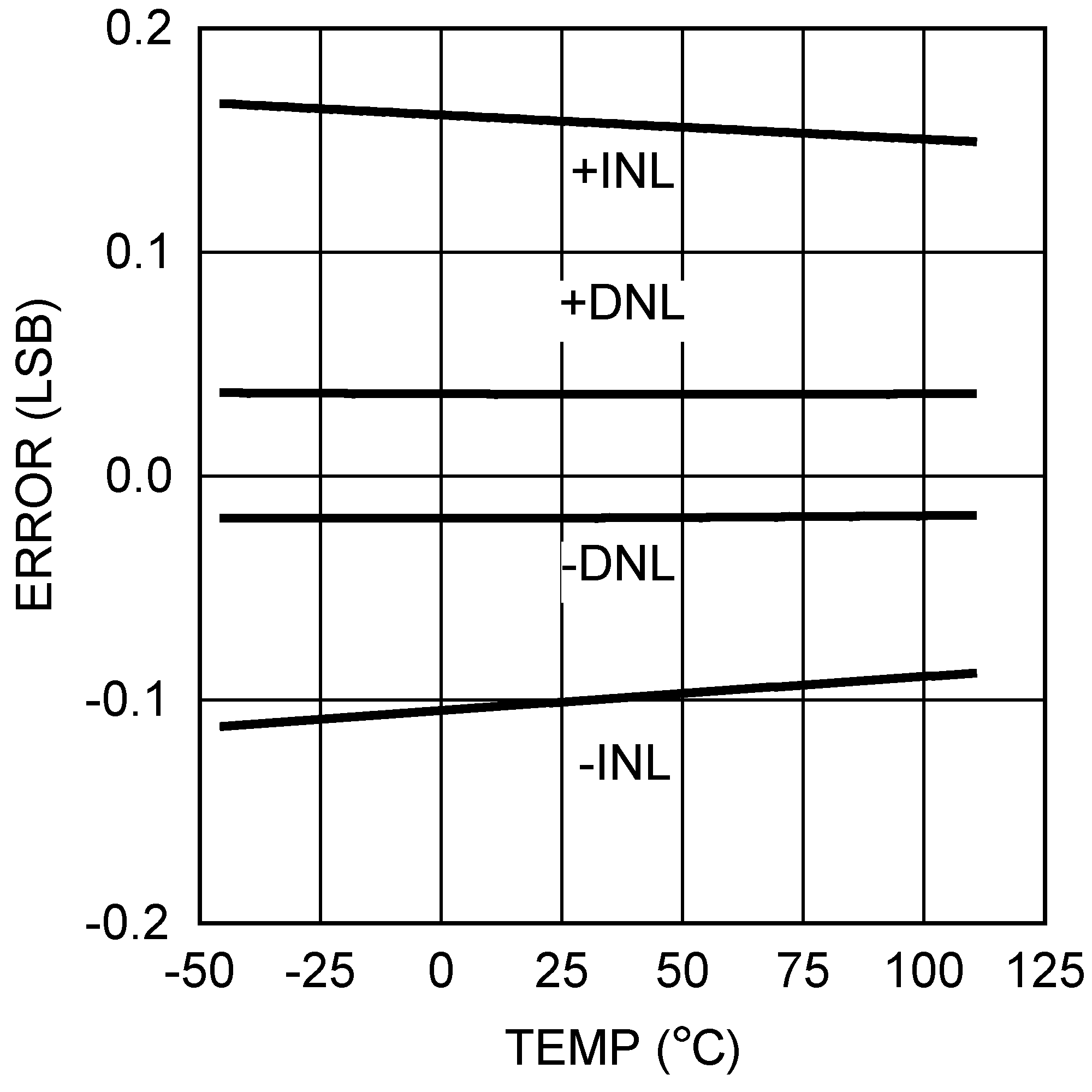

DAC084S085 20195426.png Figure 13. INL/DNL vs Temperature at VA = 3 V
DAC084S085 20195430.png Figure 15. Zero Code Error vs VA
DAC084S085 20195434.png Figure 17. Zero Code Error vs fSCLK
DAC084S085 20195436.png Figure 19. Zero Code Error vs Temperature
DAC084S085 20195432.png Figure 21. Full-Scale Error vs VREFIN

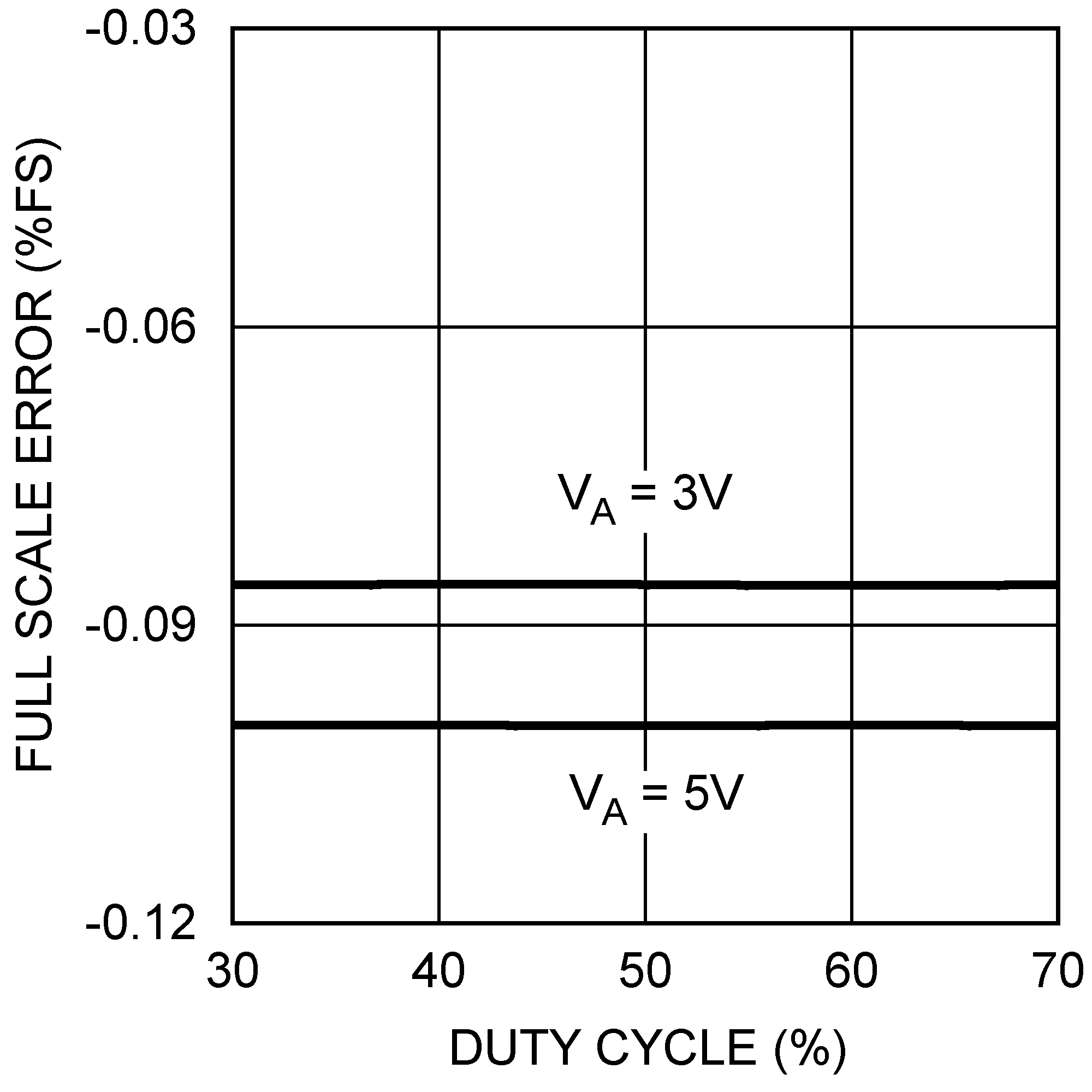

DAC084S085 20195438.png Figure 23. Full-Scale Error vs Clock Duty Cycle
DAC084S085 20195444.png Figure 25. Supply Current vs VA

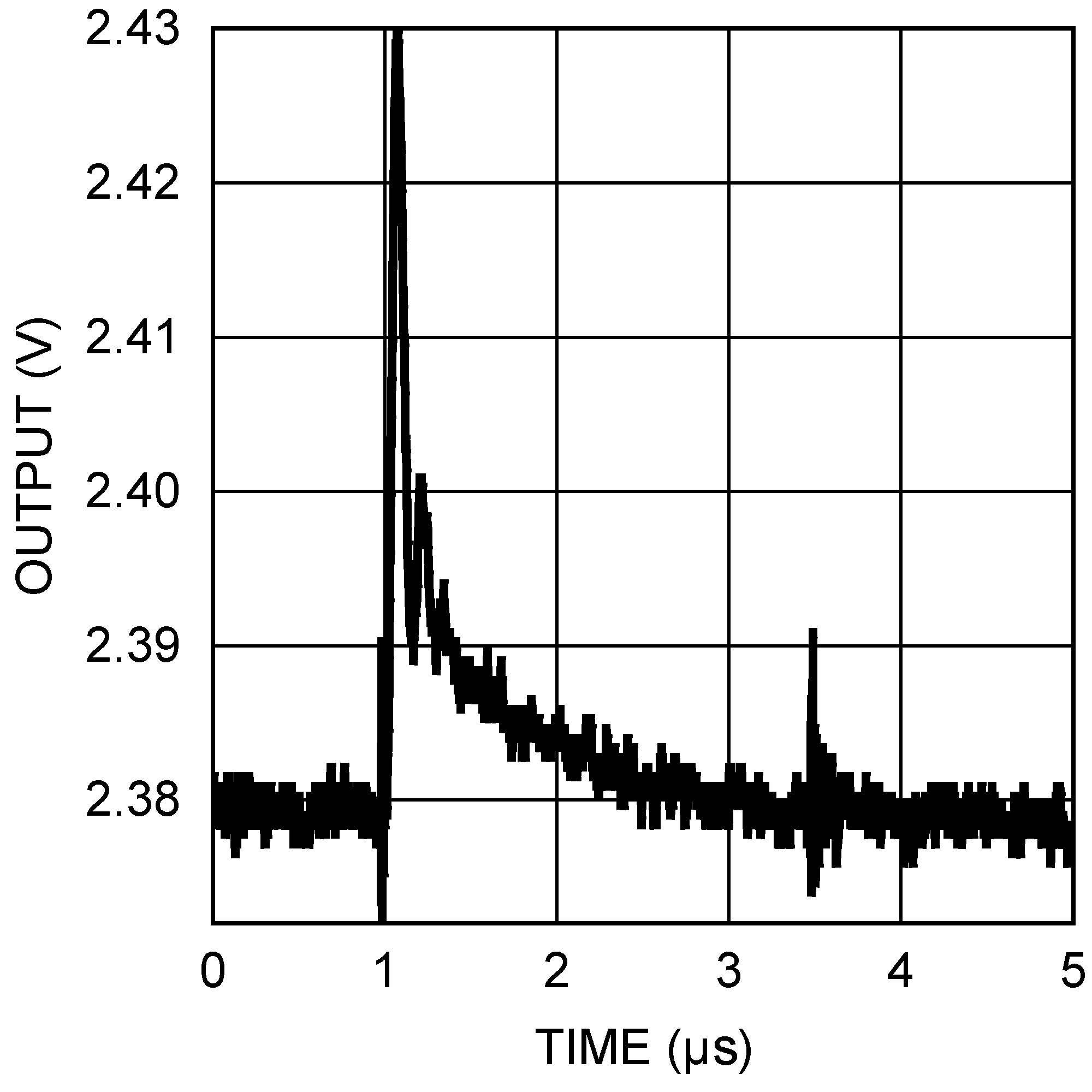

DAC084S085 20195446.png Figure 27. 5V Glitch Response
DAC084S085 20195453.png Figure 4. INL at VA = 5 V

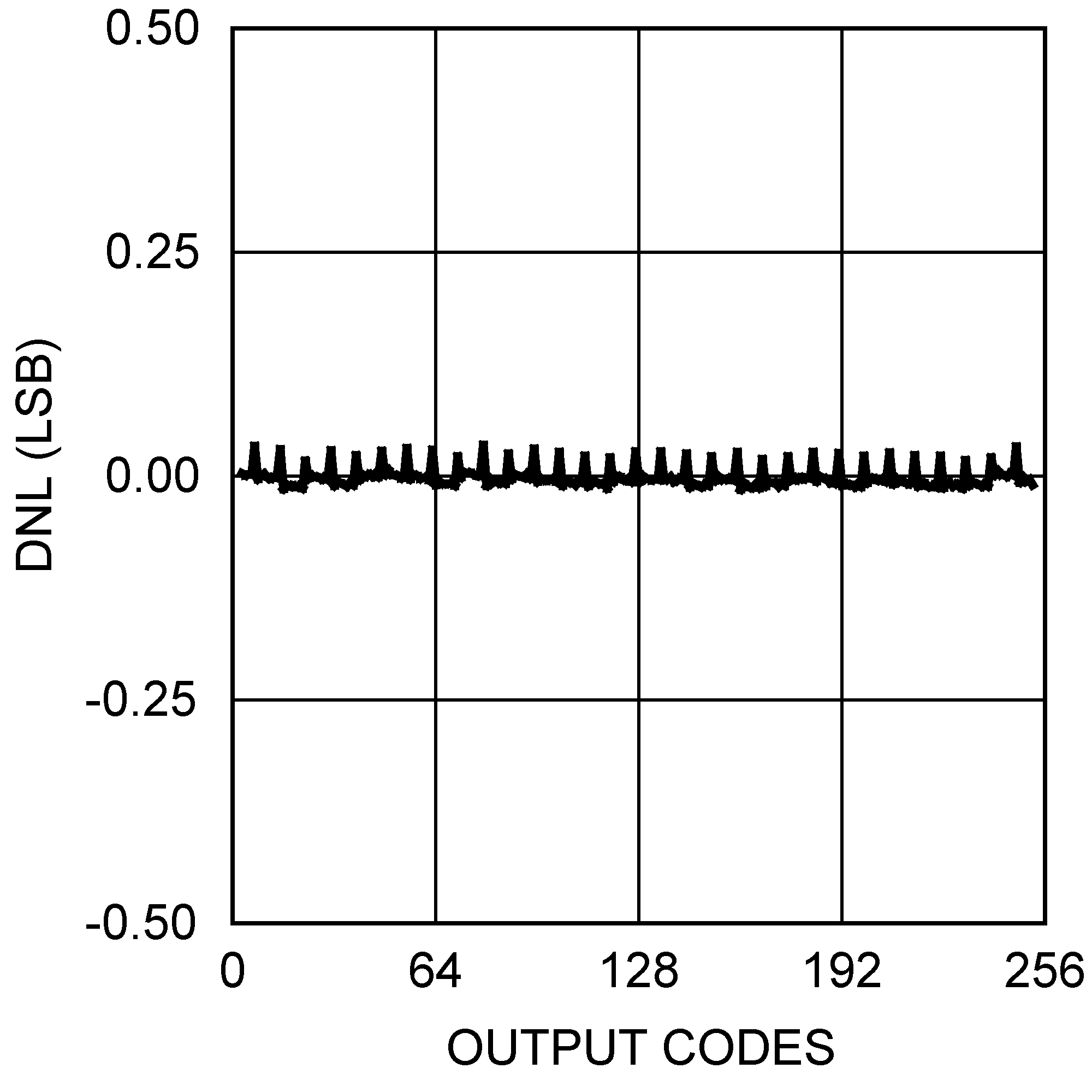

DAC084S085 20195455.png Figure 6. DNL at VA = 5 V

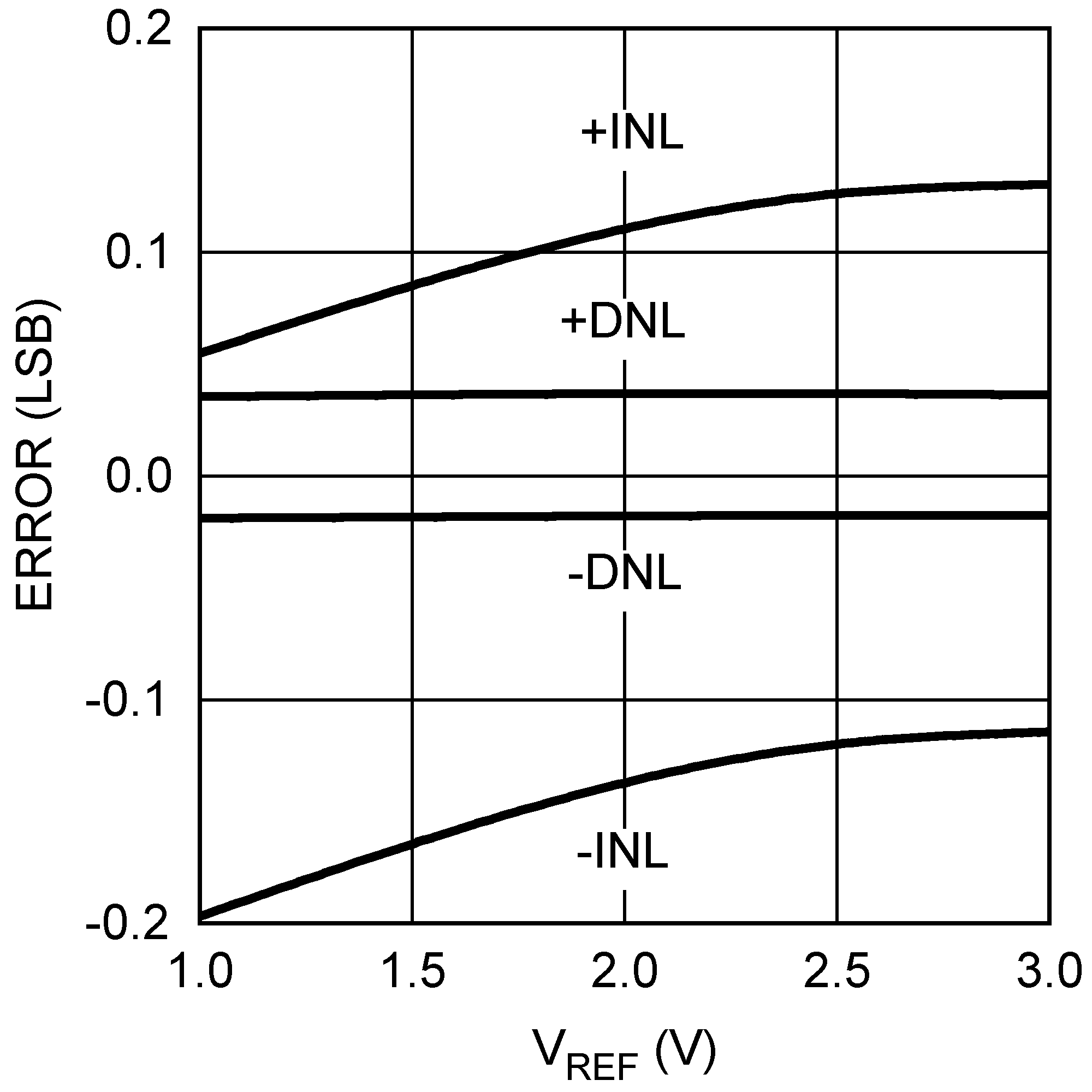

DAC084S085 20195457.png Figure 8. INL/DNL vs VREFIN at VA = 5 V

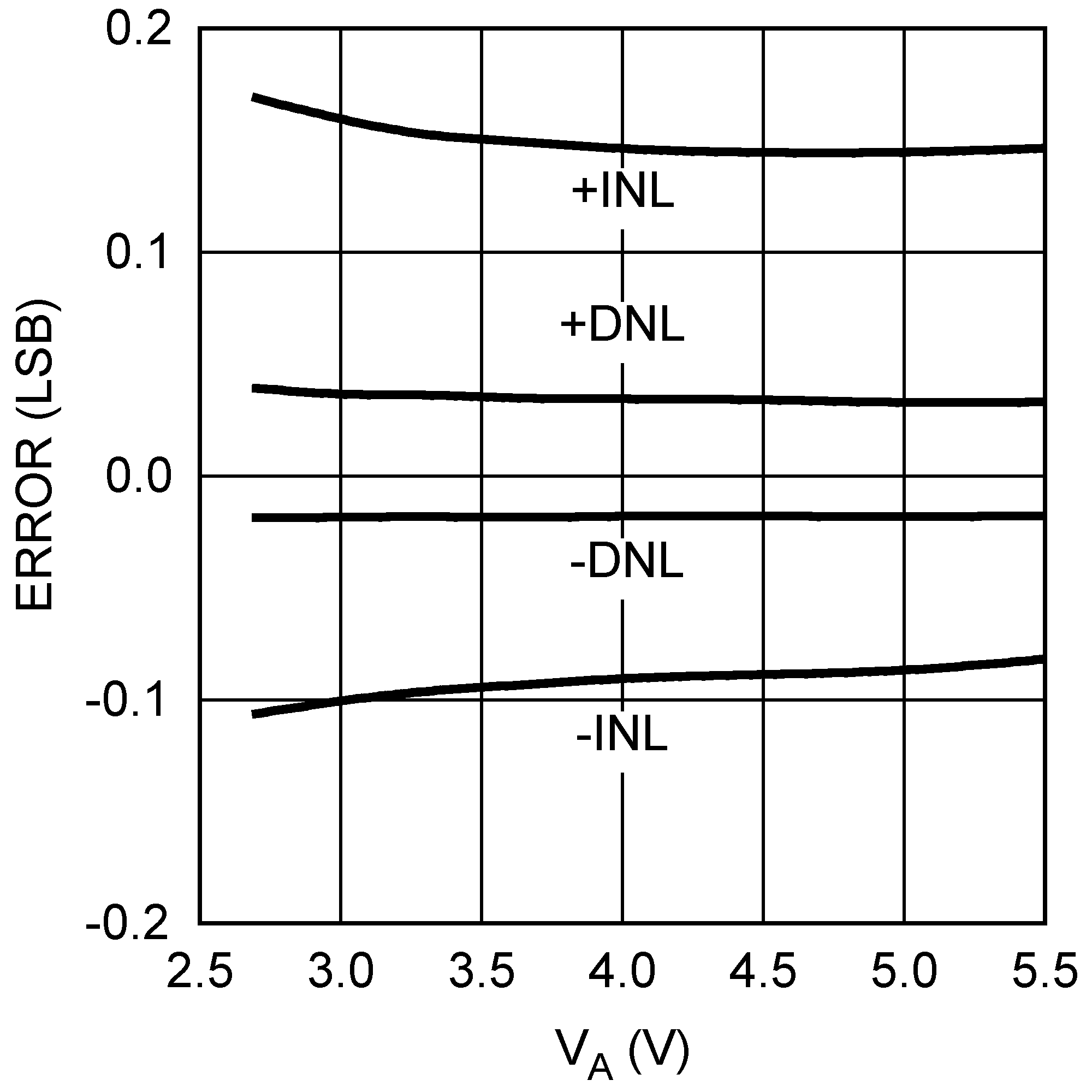

DAC084S085 20195422.png Figure 10. INL/DNL vs VA
DAC084S085 20195425.png Figure 12. INL/DNL vs Clock Duty Cycle at VA = 5 V
DAC084S085 20195427.png Figure 14. INL/DNL vs Temperature at VA = 5 V
DAC084S085 20195431.png Figure 16. Zero Code Error vs VREFIN

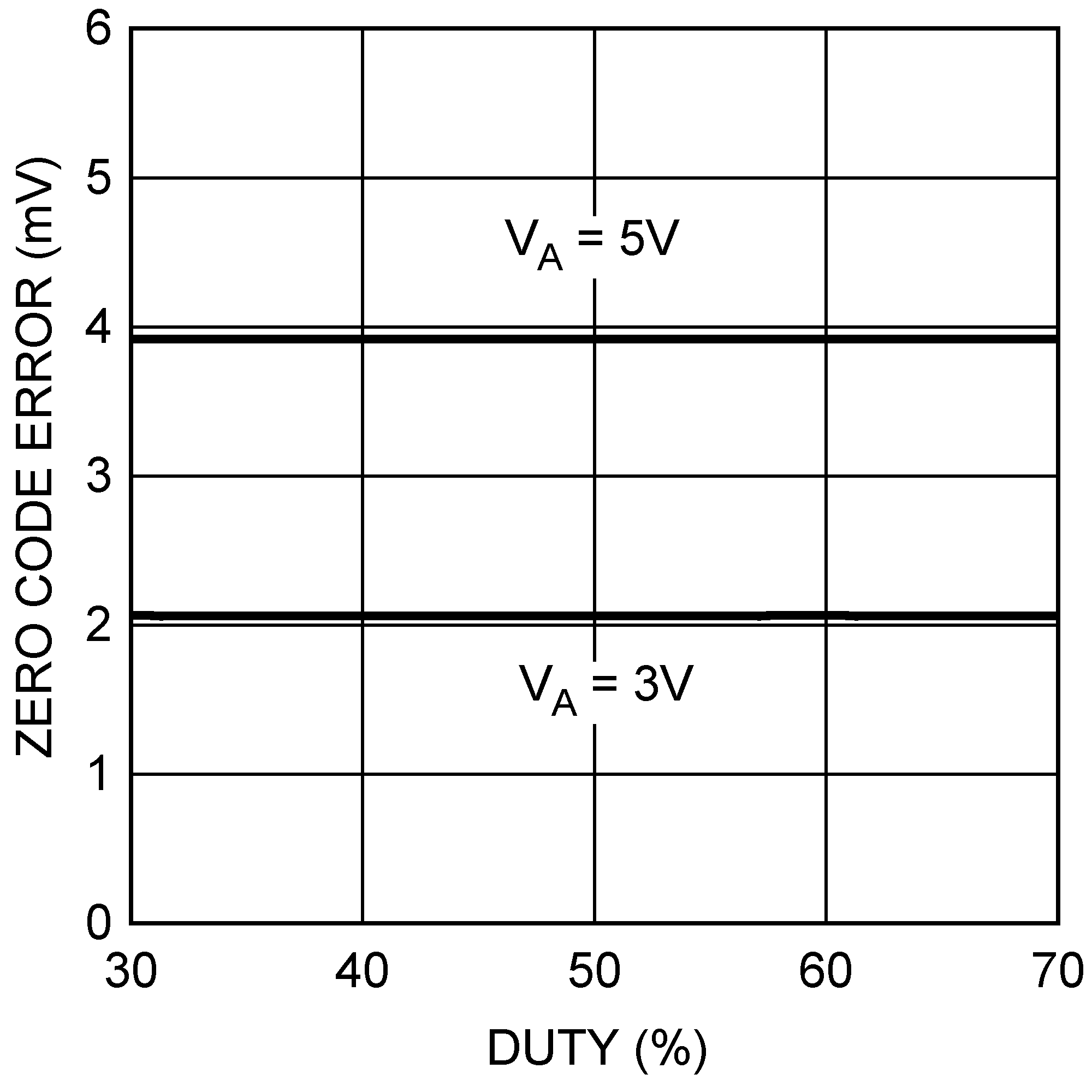

DAC084S085 20195435.png Figure 18. Zero Code Error vs Clock Duty Cycle

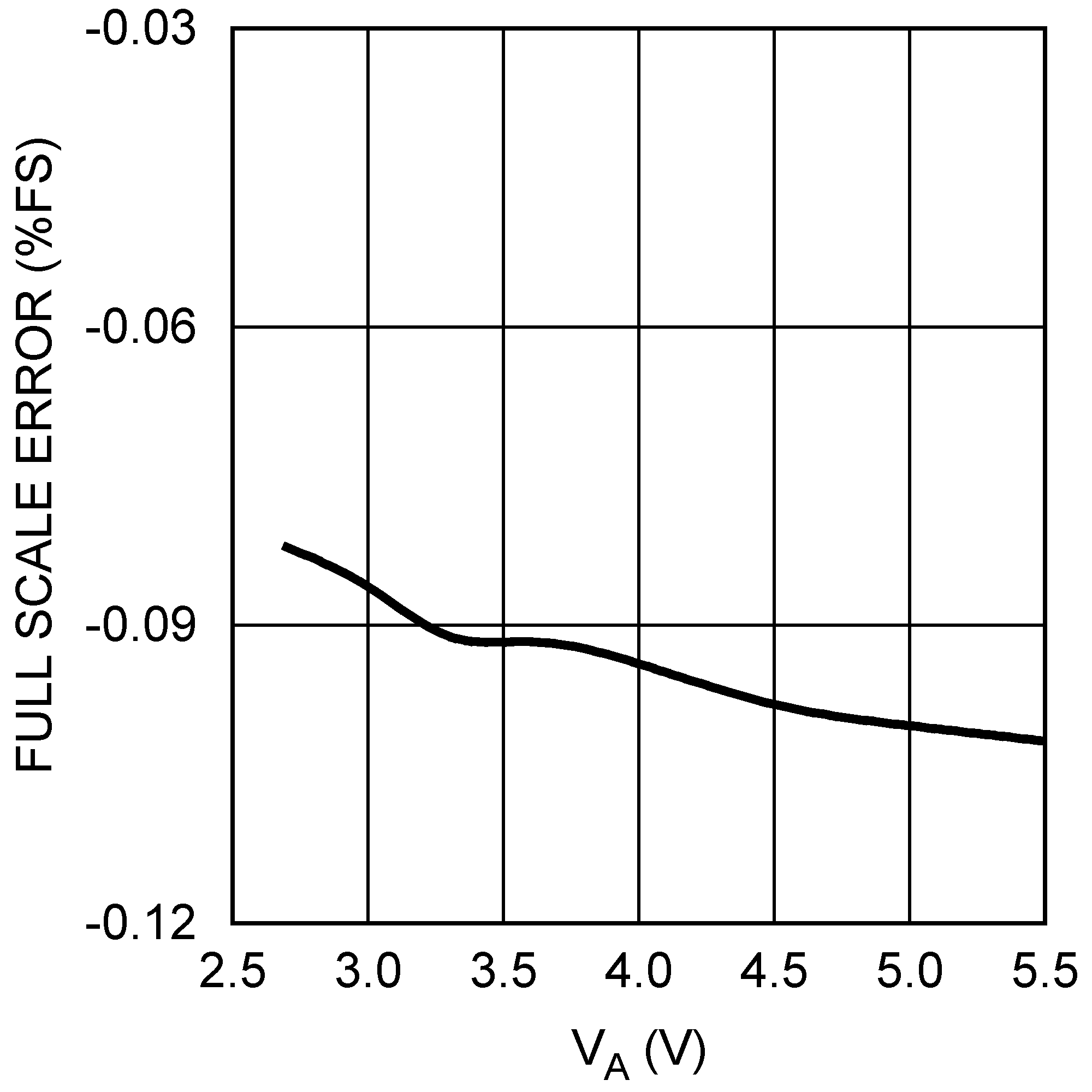

DAC084S085 20195437.png Figure 20. Full-Scale Error vs VA

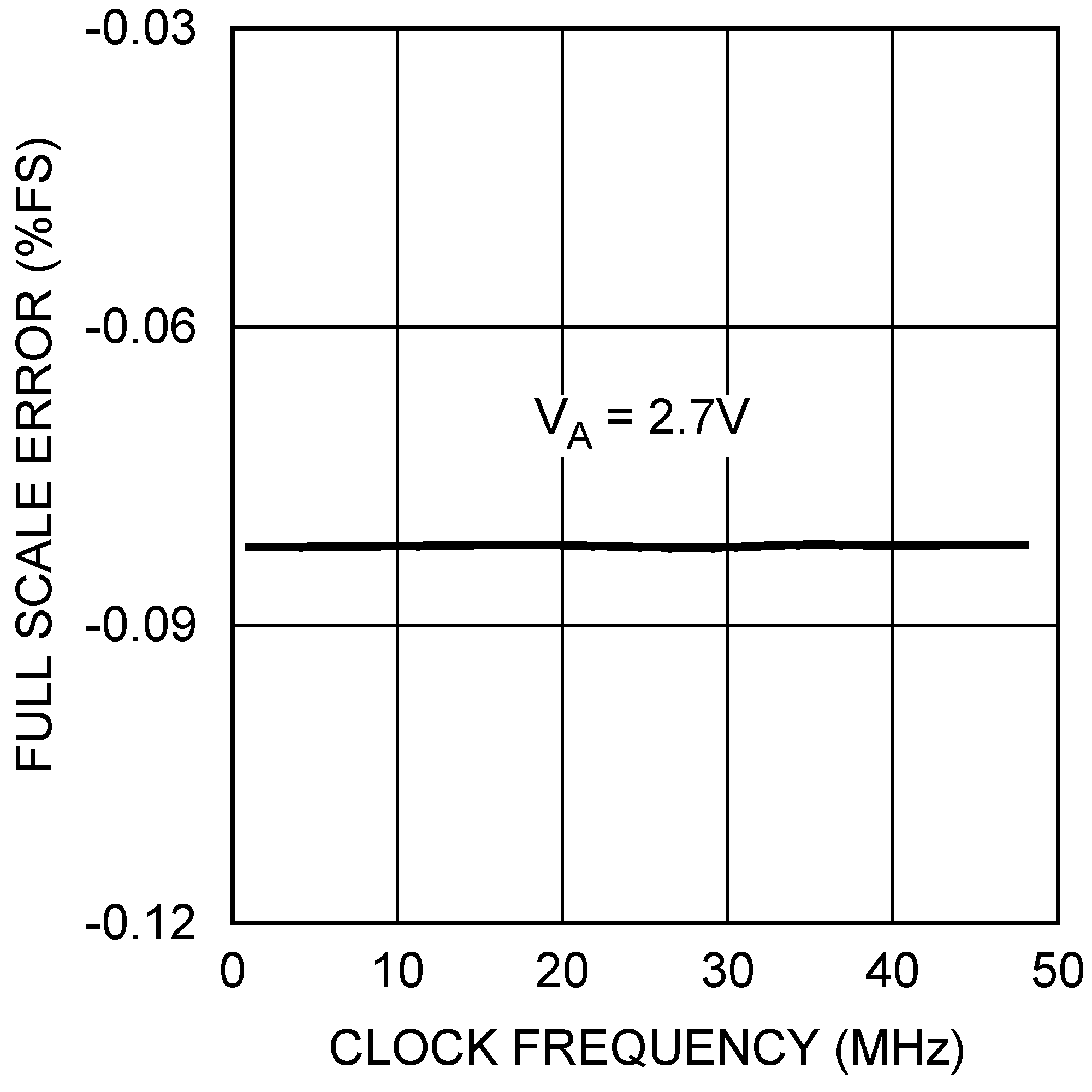

DAC084S085 20195433.png Figure 22. Full-Scale Error vs fSCLK

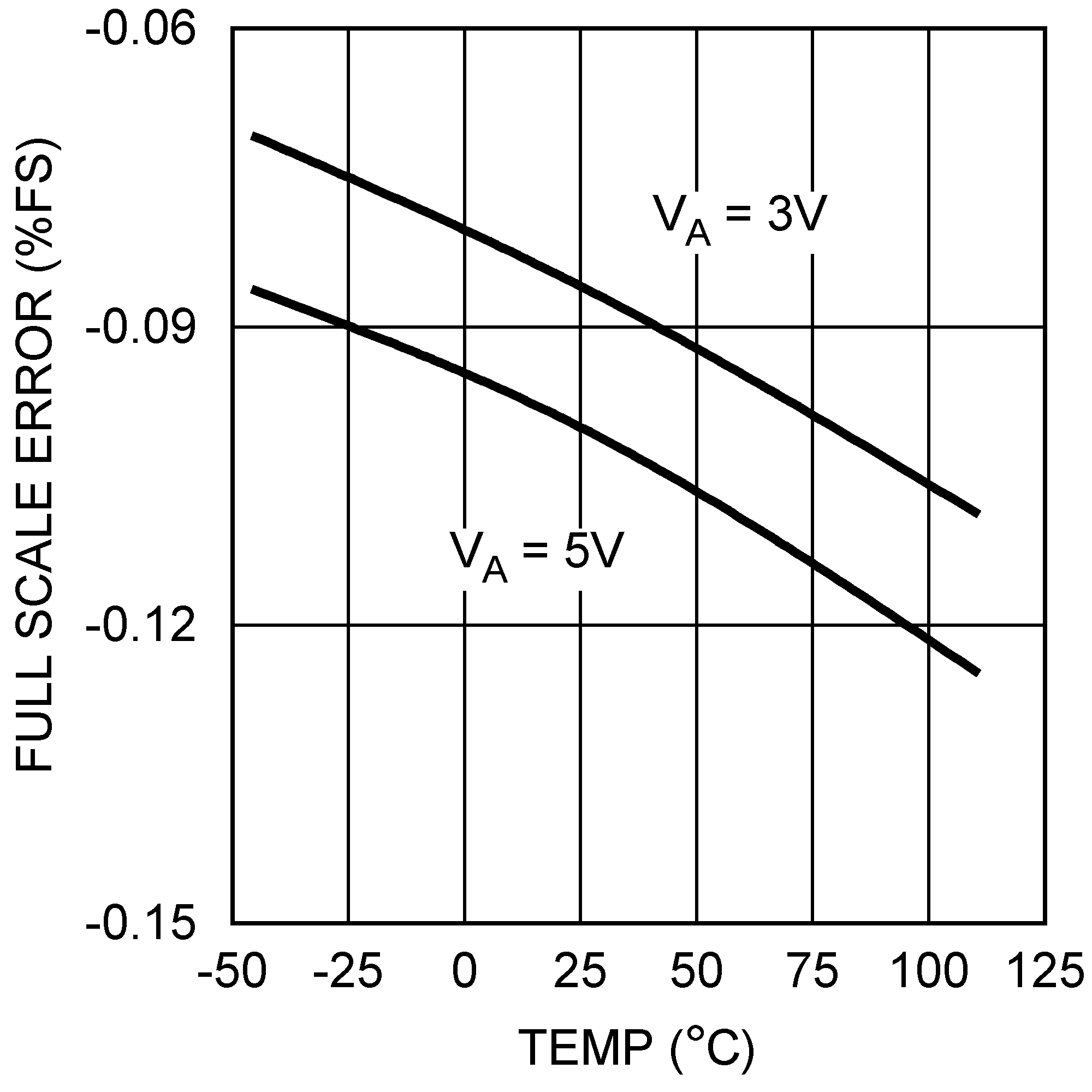

DAC084S085 20195439.png Figure 24. Full-Scale Error vs Temperature

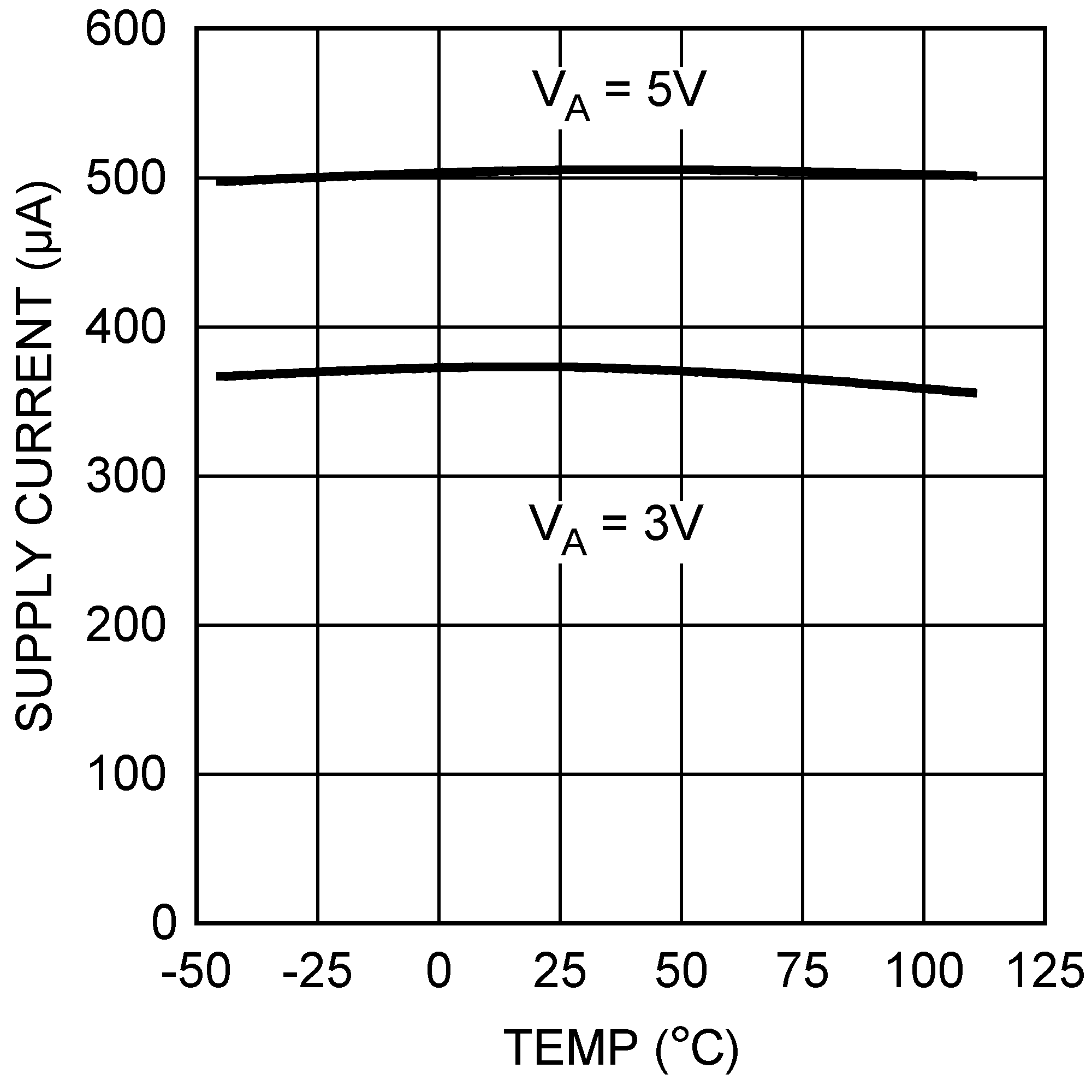

DAC084S085 20195445.png Figure 26. Supply Current vs Temperature

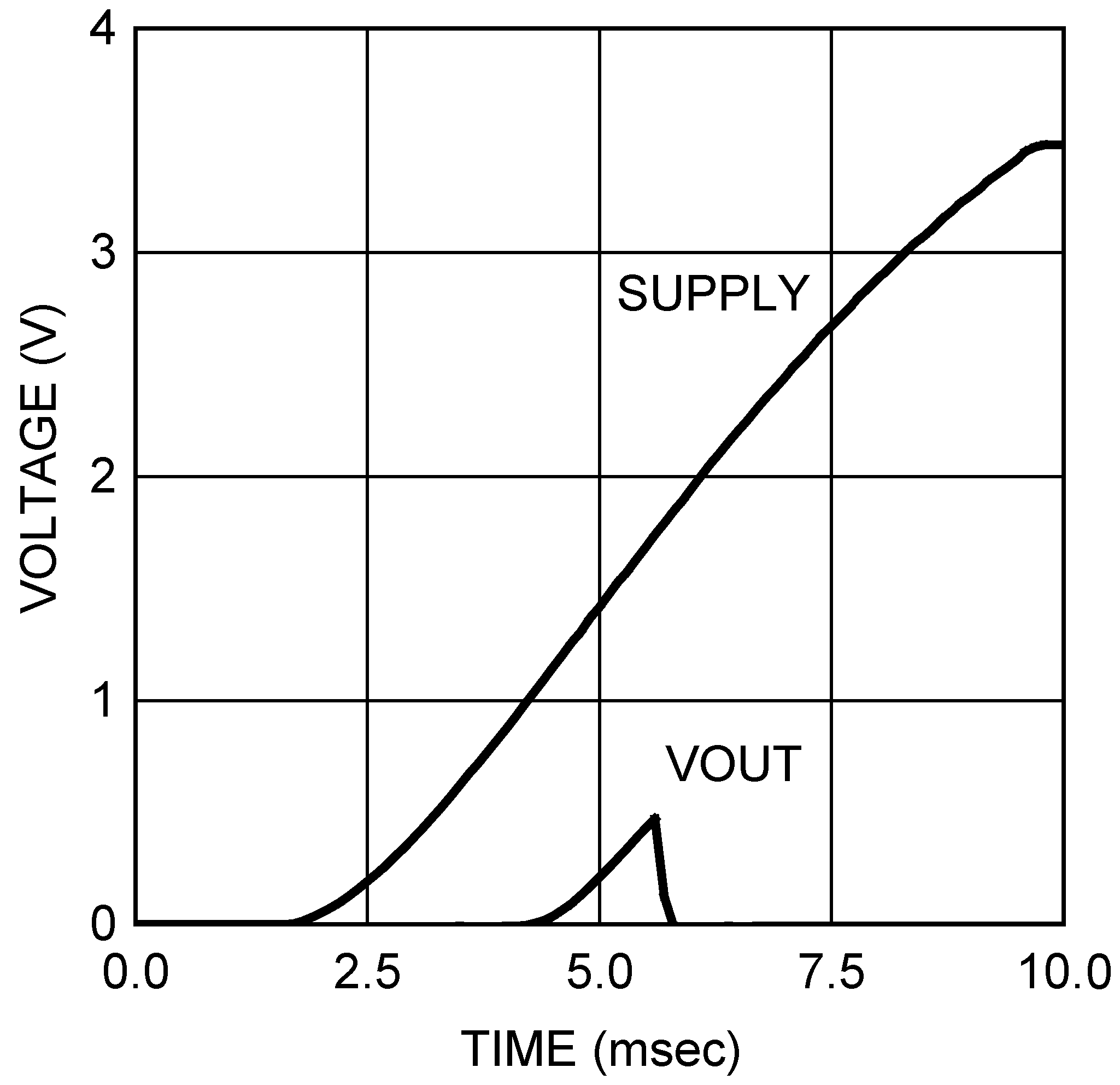

DAC084S085 20195447.png Figure 28. Power-On Reset
