5.8 Typical Power Block MOSFET Characteristics

TA = 25°C, unless stated otherwise.
CSD86336Q3D D010_SLPS678.gif
Figure 8. Control MOSFET Saturation
CSD86336Q3D D012_SLPS678.gif
VDS = 5 V
Figure 10. Control MOSFET Transfer
CSD86336Q3D D014_SLPS678.gif
ID = 14 A VDD = 12.5 V

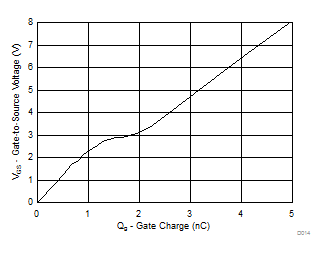

Figure 12. Control MOSFET Gate Charge
CSD86336Q3D D016_SLPS678.gif
Figure 14. Control MOSFET Capacitance
CSD86336Q3D D018_SLPS678.gif
ID = 250 µA
Figure 16. Control MOSFET VGS(th)
CSD86336Q3D D020_SLPS678.gif

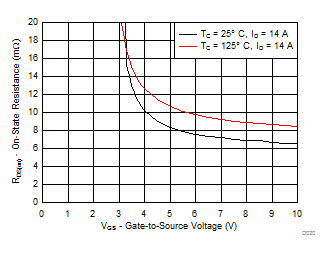

Figure 18. Control MOSFET RDS(on) vs VGS
CSD86336Q3D D022_SLPS678.gif
ID = 14 A VGS = 4.5 V

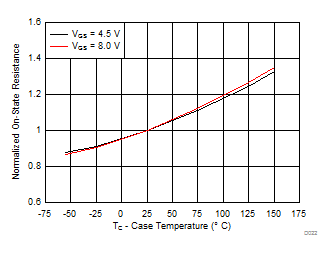

Figure 20. Control MOSFET Normalized RDS(on)
CSD86336Q3D D024_SLPS678.gif

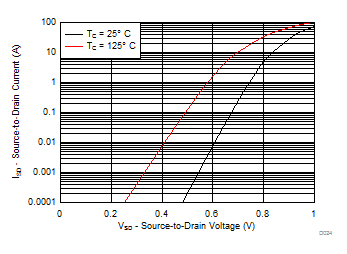

Figure 22. Control MOSFET Body Diode
CSD86336Q3D D026_SLPS678.gif

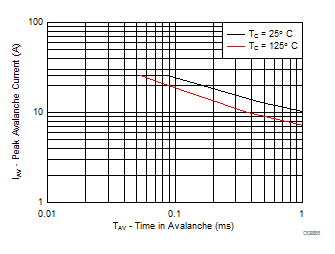

Figure 24. Control MOSFET Unclamped Inductive Switching
CSD86336Q3D D011_SLPS678.gif
Figure 9. Sync MOSFET Saturation
CSD86336Q3D D013_SLPS678.gif
VDS = 5 V
Figure 11. Sync MOSFET Transfer
CSD86336Q3D D015_SLPS678.gif
ID = 14 A VDD = 12.5 V
Figure 13. Sync MOSFET Gate Charge
CSD86336Q3D D017_SLPS678.gif
Figure 15. Sync MOSFET Capacitance
CSD86336Q3D D019_SLPS678.gif
ID = 250 µA
Figure 17. Sync MOSFET VGS(th)
CSD86336Q3D D021_SLPS678.gif

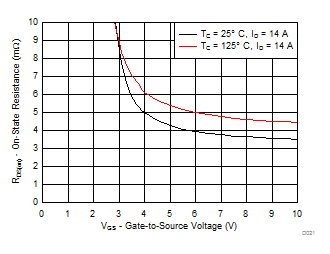

Figure 19. Sync MOSFET RDS(on) vs VGS
CSD86336Q3D D023_SLPS678.gif
ID = 14 A VGS = 4.5 V
Figure 21. Sync MOSFET Normalized RDS(on)
CSD86336Q3D D025_SLPS678.gif
Figure 23. Sync MOSFET Body Diode
CSD86336Q3D D027_SLPS678.gif
Figure 25. Sync MOSFET Unclamped Inductive Switching
