5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated). Specifications and graphs are Per MOSFET unless otherwise stated. Drain to Drain measurements are done with both MOSFETs in series (common source configuration.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVD1D2 Drain-to-Drain Voltage VGS = 0 V, ID1D2 = –250 μA –20 V
BVGSS Gate-to-Source Voltage VD1D2 = 0 V, IG = -250 μA –6 V
IDDS Drain-to-Drain Leakage Current VGS = 0 V, VD1D2 = –16 V –1 μA
IGSS Gate-to-Source Leakage Current VD1D2 = 0 V, VGS = –6 V –100 nA
VGS(th) Gate-to-Source Threshold Voltage VD1D2 = VGS, IDS = –250 μA –0.6 –0.8 –1.1 V
RD1D2(on) Drain-to-Drain On-Resistance VGS = –1.8 V, ID1D2 = –1 A 119 162 mΩ
VGS = –2.5 V, ID1D2 = –1 A 64 77 mΩ
VGS = –4.5 V, ID1D2 = –1 A 45 54 mΩ
gfs Transconductance VD1D2 = –10 V, ID1D2 = –1 A 6.2 S
DYNAMIC CHARACTERISTICS
CISS Input Capacitance VGS = 0 V, VD1D2 = –10 V,
ƒ = 1 MHz		 458 595 pF
COSS Output Capacitance 225 293 pF
CRSS Reverse Transfer Capacitance 10.4 13.5 pF
Rg Series Gate Resistance 27 Ω
Qg Gate Charge Total (–4.5 V) VD1D2 = –10 V,
ID1D2 = –1 A		 2.9 3.7 nC
Qgd Gate Charge – Gate to Drain 0.4 nC
Qgs Gate Charge – Gate to Source 0.7 nC
Qg(th) Gate Charge at Vth 0.4 nC
QOSS Output Charge VD1D2 = –9.5 V, VGS = 0 V 3.1 nC
td(on) Turn On Delay Time VD1D2 = –10 V, VGS = –4.5 V,
ID1D2 = –1 A, RG = 30 Ω		 12.8 ns
tr Rise Time 8.6 ns
td(off) Turn Off Delay Time 32.1 ns
tf Fall Time 16.0 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ID1D2 = –1 A, VGS = 0 V –0.8 –1 V
Qrr Reverse Recovery Charge Vdd = –10 V, IF = –1 A, di/dt = 200 A/μs 10.5 nC
trr Reverse Recovery Time Vdd = –10 V, IF = –1 A, di/dt = 200 A/μs 23 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC TYPICAL VALUE UNIT
R θJA Junction-to-Ambient Thermal Resistance(1)(3) 70 °C/W
Junction-to-Ambient Thermal Resistance (2)(3) 165
(1) Device mounted on FR4 material with Minimum Cu mounting area.
(2) Device mounted on FR4 material with 1-inch2 of Cu (2 oz).
(3) Measured with both devices biased in a parallel condition.
 Typ RθJA = 70°C/W when mounted on
1-inch2 of 2 oz. Cu.
 Typ RθJA = 165°C/W when mounted on minimum pad area of
2-oz. Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

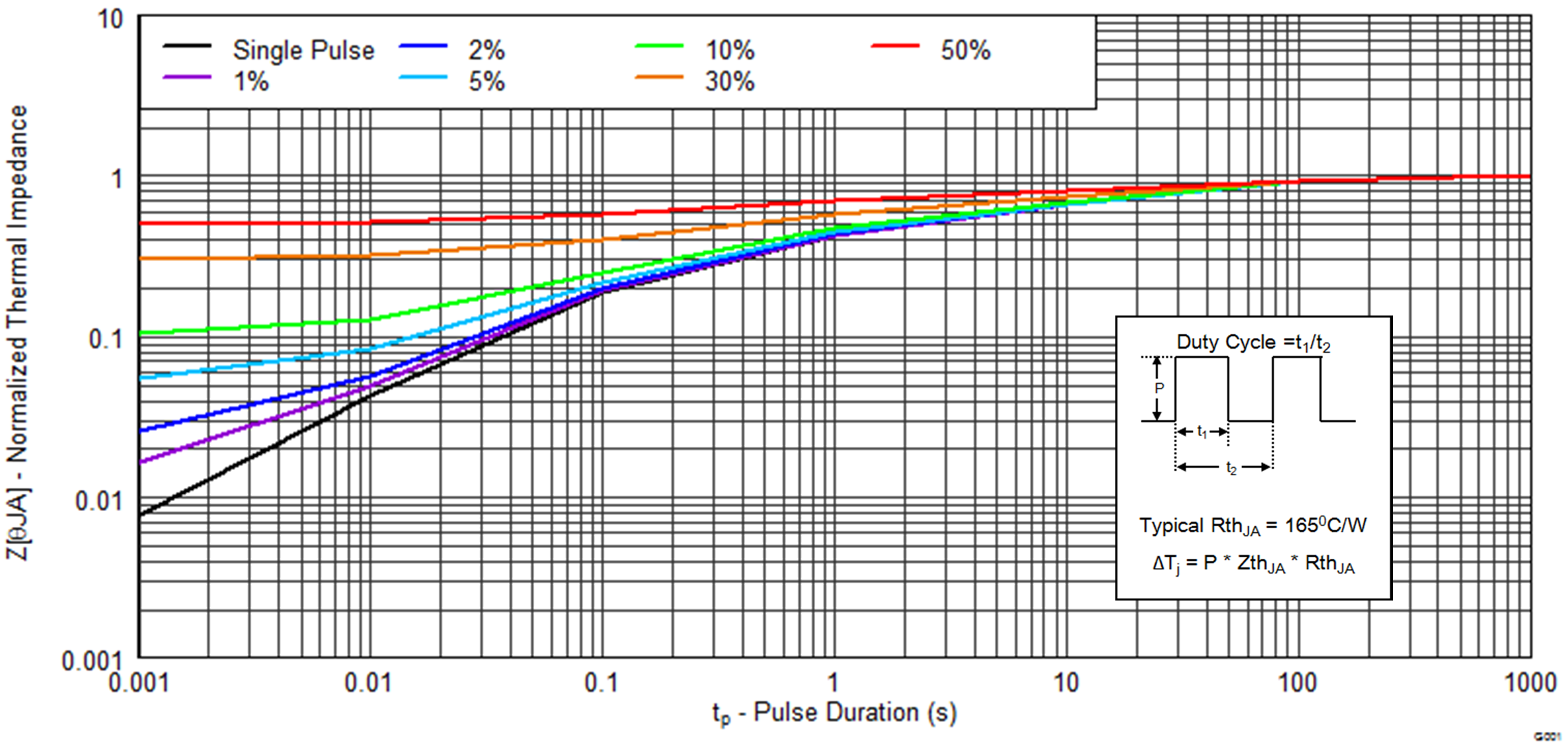

Figure 1. Transient Thermal Impedance

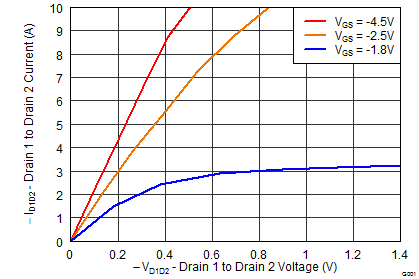

Figure 2. Saturation Characteristics

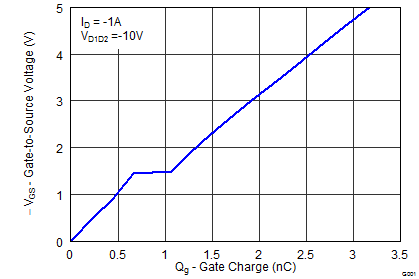

Figure 4. Gate Charge

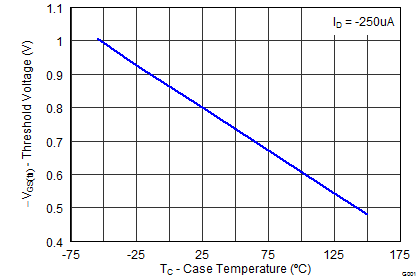

Figure 6. Threshold Voltage vs Temperature

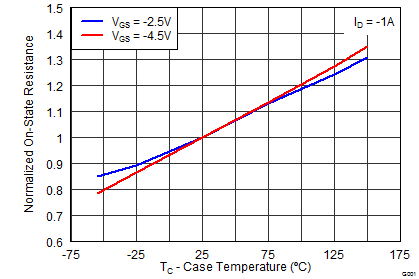

Figure 8. Normalized On-State Resistance vs Temperature

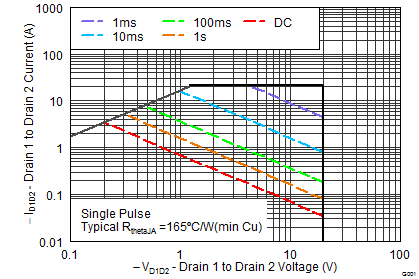

Figure 10. Maximum Safe Operating Area

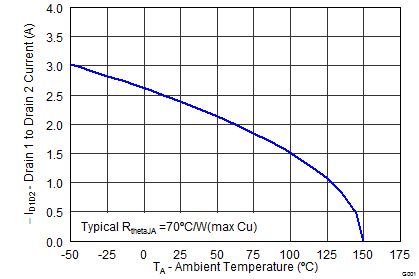

Figure 12. Maximum Drain Current vs Temperature

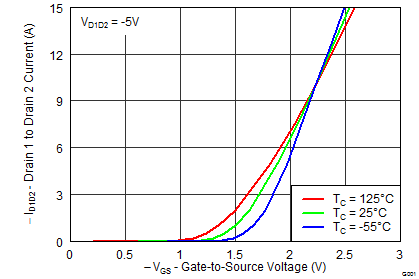

Figure 3. Transfer Characteristics

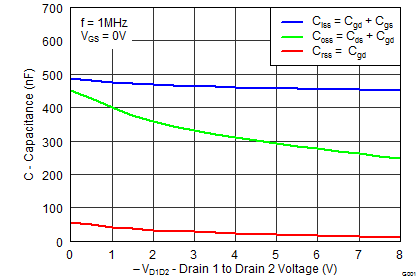

Figure 5. Capacitance
Figure 7. On-State Resistance vs Gate-to-Source Voltage

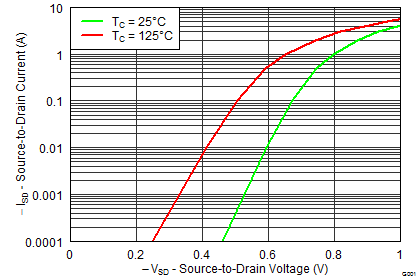

Figure 9. Typical Diode Forward Voltage

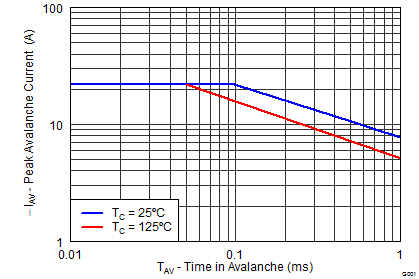

Figure 11. Single Pulse Unclamped Inductive Switching
