5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = –250 μA –20 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = –16 V –1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = ±12 V –100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = –250 μA –0.65 –0.90 –1.15 V
RDS(on) Drain-to-source on resistance VGS = –1.8 V, ID = –1 A 40 150 mΩ
VGS = –2.5 V, ID = –10 A 10.1 12.1 mΩ
VGS = –4.5 V, ID = –10 A 5.5 6.5 mΩ
gfs Transconductance VDS = –10 V, ID = –10 A 47 S
DYNAMIC CHARACTERISTICS
CISS Input capacitance VGS = 0 V, VDS = –10 V,
ƒ = 1 MHz		 1630 2120 pF
COSS Output capacitance 902 1170 pF
CRSS Reverse transfer capacitance 52 68 pF
RG Series gate resistance 0.8 2.4 Ω
Qg Gate charge total (–4.5 V) VDS = –10 V, ID = –10 A 10.8 14.1 nC
Qgd Gate charge gate to drain 2.2 nC
Qgs Gate charge gate to source 2.8 nC
Qg(th) Gate charge at Vth 1.5 nC
QOSS Output charge VDS = –10 V, VGS = 0 V 9.0 nC
td(on) Turn on delay time VDS = –10 V, VGS = –4.5 V,
ID = –10 A , RG = 5 Ω		 13 ns
tr Rise time 8 ns
td(off) Turn off delay time 35 ns
tf Fall time 13 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage IS = –10 A, VGS = 0 V –0.8 –1 V
Qrr Reverse recovery charge VDS = –10 V, IF = –10 A,
di/dt = 200 A/μs		 20.5 nC
trr Reverse recovery time 26 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance(1) 1.3 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 55 °C/W
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inch × 1.5 inch (3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.

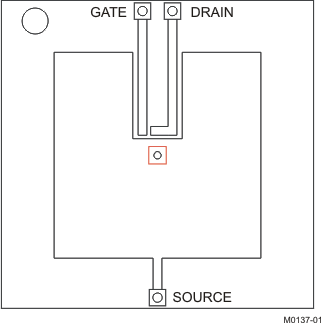

CSD25404Q3 m0137-01_lps211.gif
Max RθJA = 55°C/W when mounted on
1 inch2 of 2 oz. Cu.

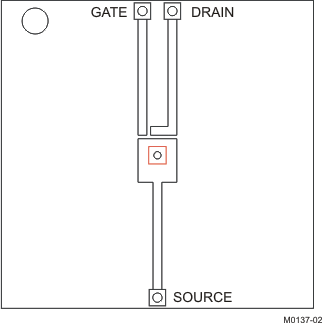

CSD25404Q3 m0137-02_lps211.gif
Max RθJA = 160°C/W when mounted on minimum pad area of
2 oz. Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD25404Q3 D001_SLPS570.png

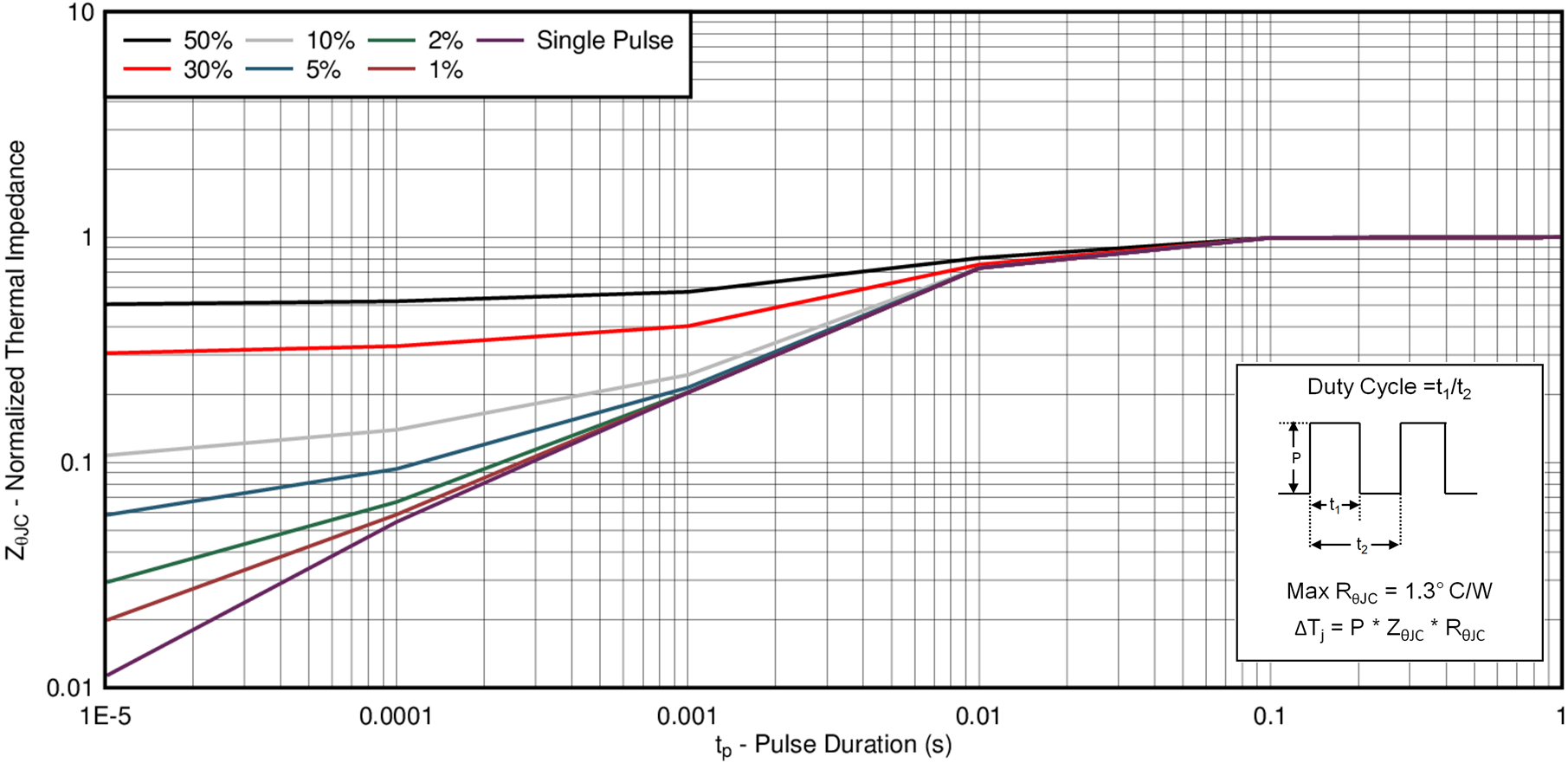

Figure 1. Transient Thermal Impedance
CSD25404Q3 D002_SLPS570.gif
Figure 2. Saturation Characteristics
CSD25404Q3 D004_SLPS570.gif
ID = –10 A VDS = –10 V
Figure 4. Gate Charge
CSD25404Q3 D006_SLPS570.gif
ID = –250 µA
Figure 6. Threshold Voltage vs Temperature
CSD25404Q3 D008_SLPS570.gif
ID = –10 A

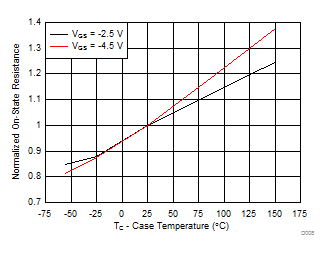

Figure 8. Normalized On-State Resistance vs Temperature
CSD25404Q3 D010_SLPS570_r2.gif
Single Pulse, Max RθJC = 1.3 °C/W
Figure 10. Maximum Safe Operating Area
CSD25404Q3 D003_SLPS570.gif
VDS = –5 V

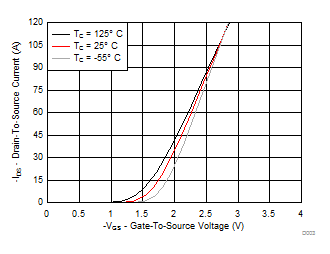

Figure 3. Transfer Characteristics
CSD25404Q3 D005_SLPS570.gif

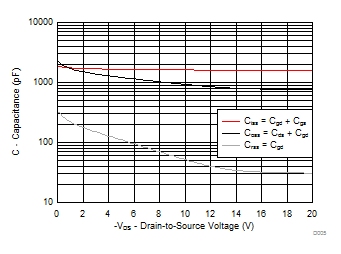

Figure 5. Capacitance
CSD25404Q3 D007_SLPS570.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD25404Q3 D009_SLPS570.gif
Figure 9. Typical Diode Forward Voltage
CSD25404Q3 D011_SLPS570_r2.gif

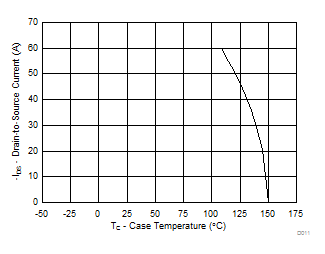

Figure 11. Maximum Drain Current vs Temperature
