5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = –250 μA –20 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = –16 V –1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = ±12 V –100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = –250 μA –0.65 –0.90 –1.15 V
RDS(on) Drain-to-source on resistance VGS = –1.8 V, ID = –1 A 74 300
VGS = –2.5 V, ID = –10 A 13.3 15.9
VGS = –4.5 V, ID = –10 A 7.7 8.9
gfs Transconductance VDS = –10 V, ID = –10 A 59 S
DYNAMIC CHARACTERISTICS
CISS Input capacitance VGS = 0 V, VDS = –10 V,
ƒ = 1 MHz
1380 1790 pF
COSS Output capacitance 763 992 pF
CRSS Reverse transfer capacitance 39 51 pF
RG Series gate resistance 3.7 7.4 Ω
Qg Gate charge total (–4.5 V) VDS = –10 V, ID = –10 A 7.5 9.7 nC
Qgd Gate charge gate to drain 1.1 nC
Qgs Gate charge gate to source 2.4 nC
Qg(th) Gate charge at Vth 1.0 nC
QOSS Output charge VDS = –10 V, VGS = 0 V 7.6 nC
td(on) Turn on delay time VDS = –10 V, VGS = –4.5 V,
ID = –10 A , RG = 5 Ω
10 ns
tr Rise time 7 ns
td(off) Turn off delay time 25 ns
tf Fall time 12 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage IS = –10 A, VGS = 0 V –0.8 –1 V
Qrr Reverse recovery charge VDS = –8.5 V, IF = –10 A,
di/dt = 200 A/μs
10.3 nC
trr Reverse recovery time 21 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance(1) 2.3 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 55 °C/W
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inch × 1.5 inch (3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.
CSD25402Q3A m0137-01_lps211.gif
Max RθJA = 55°C/W when mounted on
1 inch2 of 2 oz. Cu.
CSD25402Q3A m0137-02_lps211.gif
Max RθJA = 175°C/W when mounted on minimum pad area of
2 oz. Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD25402Q3A D001_SLPS454.png

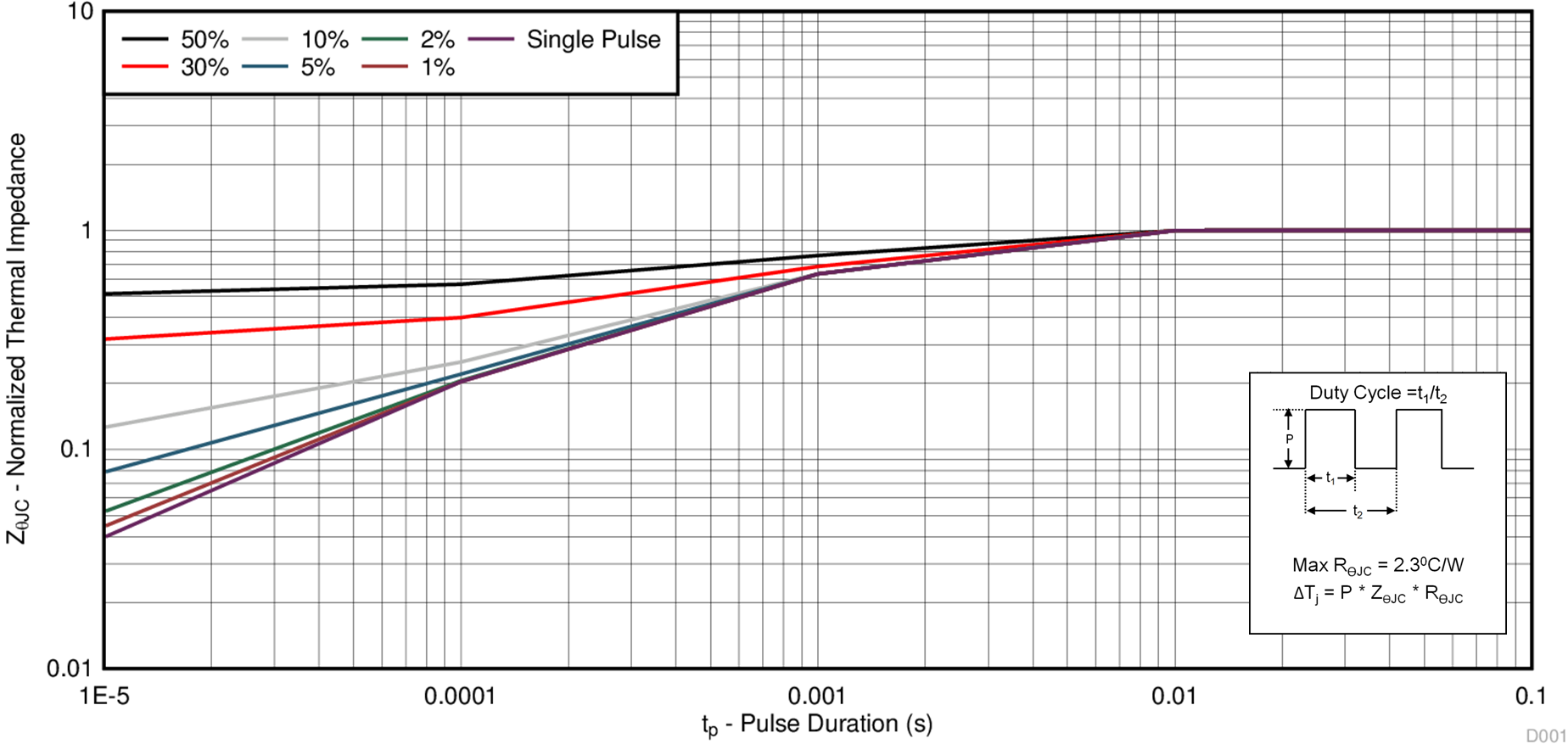

Figure 1. Transient Thermal Impedance
CSD25402Q3A D002_SLPS454.gif
Figure 2. Saturation Characteristics
CSD25402Q3A D004_SLPS454.gif
ID = –10 A VDS = –10 V

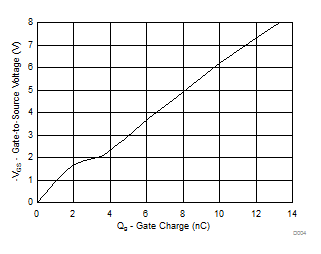

Figure 4. Gate Charge
CSD25402Q3A D006_SLPS454.gif
ID = –250 µA
Figure 6. Threshold Voltage vs Temperature
CSD25402Q3A D008_SLPS454.gif
ID = –10 A

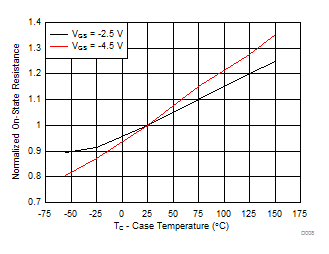

Figure 8. Normalized On-State Resistance vs Temperature
CSD25402Q3A D010_SLPS454.gif
Single Pulse, Max RθJC = 2.3°C/W
Figure 10. Maximum Safe Operating Area
CSD25402Q3A D003_SLPS454.gif
VDS = –5 V
Figure 3. Transfer Characteristics
CSD25402Q3A D005_SLPS454.gif

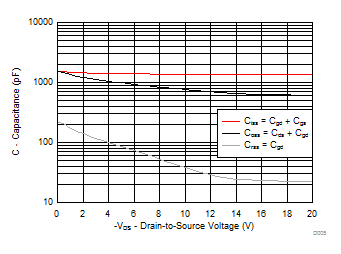

Figure 5. Capacitance
CSD25402Q3A D007_SLPS454.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD25402Q3A D009_SLPS454.gif
Figure 9. Typical Diode Forward Voltage
CSD25402Q3A D011_SLPS454.gif
Figure 11. Maximum Drain Current vs Temperature
