5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, ID = 250 μA 100 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 80 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, ID = 250 μA 2.2 2.8 3.4 V
RDS(on) Drain-to-Source On Resistance VGS = 6 V, ID = 13 A 8.7 11.1
VGS = 10 V, ID = 13 A 7.8 9.4
gfs Transconductance VDS = 10 V, ID = 13 A 63 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 50 V, ƒ = 1 MHz 2050 2670 pF
Coss Output Capacitance 395 514 pF
Crss Reverse Transfer Capacitance 9.6 12.5 pF
RG Series Gate Resistance 1.2 2.4 Ω
Qg Gate Charge Total (10 V) VDS = 50 V, ID = 13 A 27 35 nC
Qgd Gate Charge Gate to Drain 4.9 nC
Qgs Gate Charge Gate to Source 7.9 nC
Qg(th) Gate Charge at Vth 5.7 nC
Qoss Output Charge VDS = 50 V, VGS = 0 V 75 nC
td(on) Turn On Delay Time VDS = 50 V, VGS = 10 V,
IDS = 13 A, RG = 0 Ω
6 ns
tr Rise Time 6 ns
td(off) Turn Off Delay Time 16 ns
tf Fall Time 5 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ISD = 13 A, VGS = 0 V 0.8 1.0 V
Qrr Reverse Recovery Charge VDS= 50 V, IF = 13 A,
di/dt = 300 A/μs
163 nC
trr Reverse Recovery Time 62 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance(1) 1.3 °C/W
RθJA Junction-to-Ambient Thermal Resistance(1)(2) 50
(1) RθJC is determined with the device mounted on a 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu pad on a 1.5-inches × 1.5-inches (3.81-cm × 3.81-cm), 0.06-inch (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu.
Max RθJA = 50°C/W when mounted on 1 inch2 (6.45 cm2) of
2-oz. (0.071-mm thick) Cu.
Max RθJA = 115°C/W when mounted on a minimum pad area of 2-oz. (0.071-mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

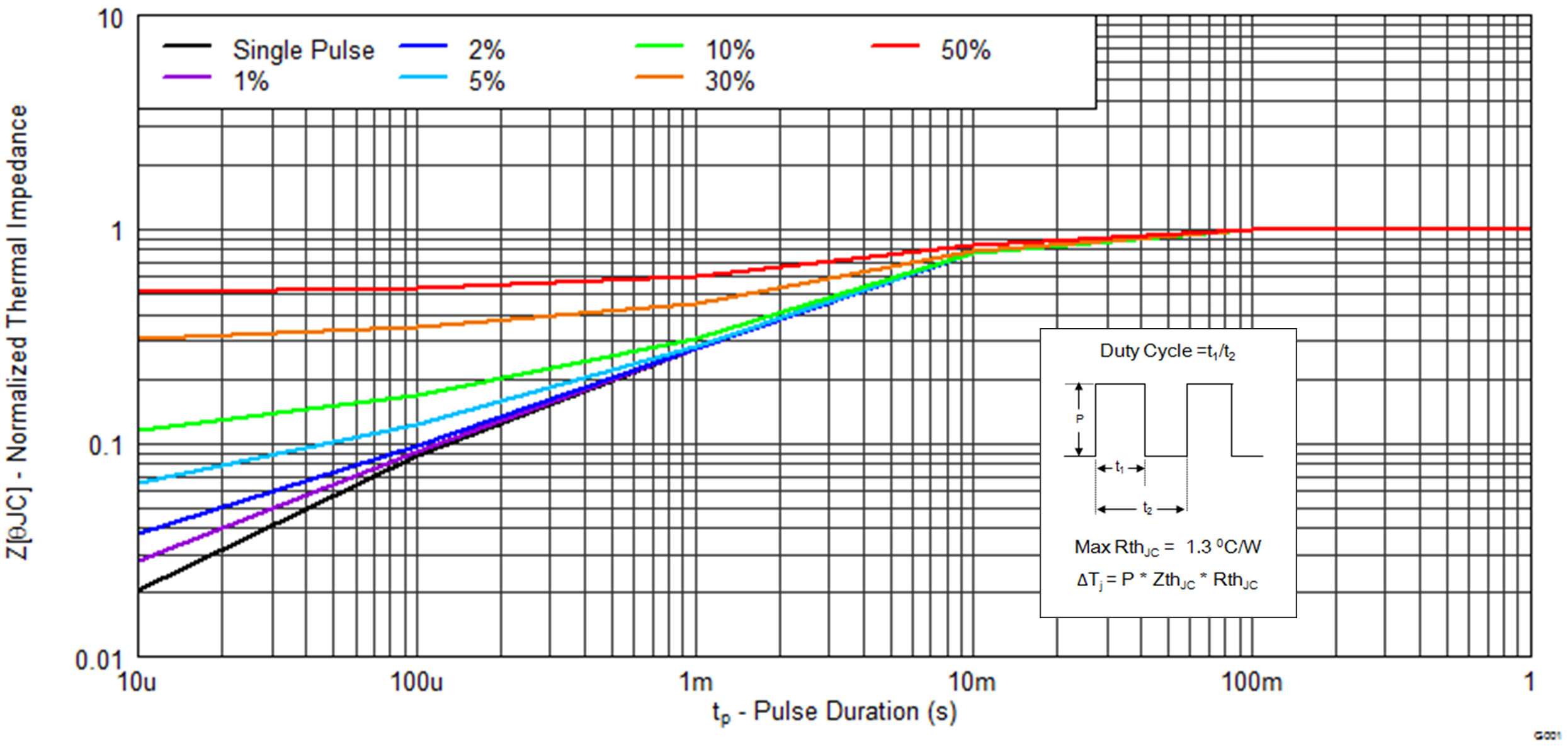

Figure 1. Transient Thermal Impedance

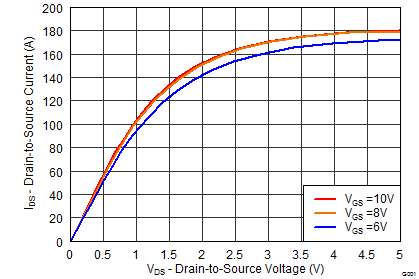

Figure 2. Saturation Characteristics
Figure 4. Gate Charge

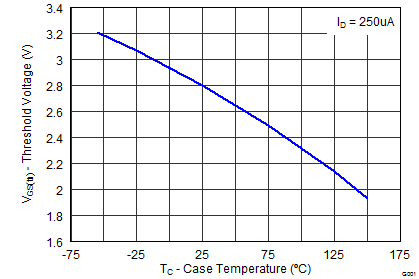

Figure 6. Threshold Voltage vs Temperature

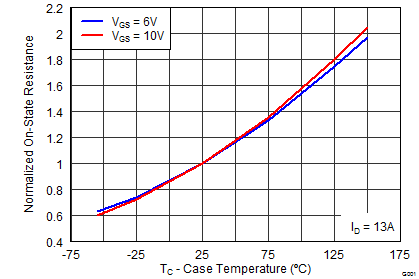

Figure 8. Normalized On-State Resistance vs Temperature

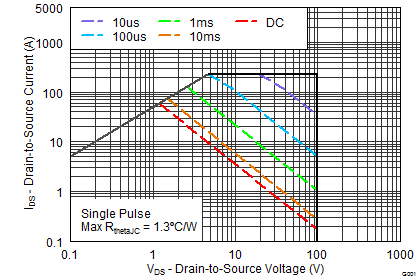

Figure 10. Maximum Safe Operating Area

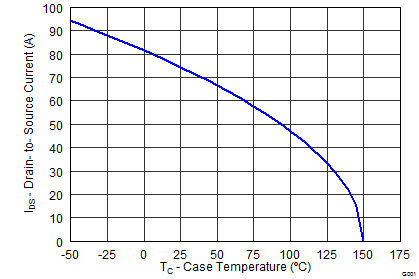

Figure 12. Maximum Drain Current vs Temperature

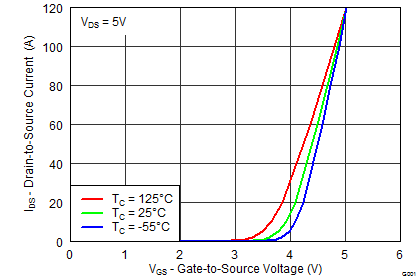

Figure 3. Transfer Characteristics

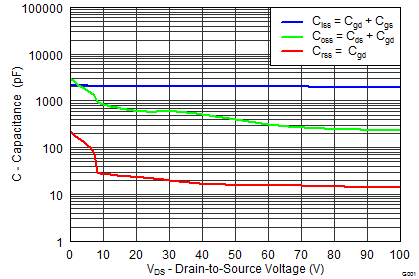

Figure 5. Capacitance
Figure 7. On-State Resistance vs Gate-to-Source Voltage
Figure 9. Typical Diode Forward Voltage

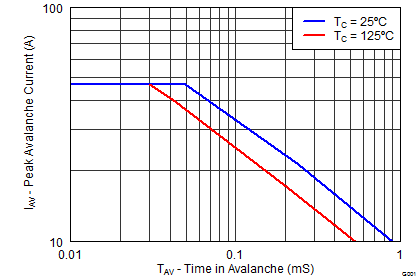

Figure 11. Single Pulse Unclamped Inductive Switching
