Specifications

Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, ID = 250 μA 40 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 32 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, ID = 250 μA 1.5 1.8 2.4 V
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V, ID = 24 A 2.7 3.5
VGS = 10 V, ID = 24 A 1.9 2.3
gƒs Transconductance VDS = 20 V, ID = 24 A 5.2 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 20 V,
ƒ = 1 MHz
4500 5850 pF
Coss Output Capacitance 452 588 pF
Crss Reverse Transfer Capacitance 238 309 pF
RG Series Gate Resistance 0.7 1.4 Ω
Qg Gate Charge Total (10 V) VDS = 20 V, ID = 24 A 63 82 nC
Qg Gate Charge Total (4.5 V) 31 41 nC
Qgd Gate Charge Gate-to-Drain 11.2 nC
Qgs Gate Charge Gate-to-Source 13.2 nC
Qg(th) Gate Charge at Vth 8.2 nC
Qoss Output Charge VDS = 20 V, VGS = 0 V 20 nC
td(on) Turn On Delay Time VDS = 20 V, VGS = 10 V,
IDS = 24 A, RG = 0
6 ns
tr Rise Time 15 ns
td(off) Turn Off Delay Time 24 ns
tƒ Fall Time 5 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage IDS = 24 A, VGS = 0 V 0.75 1 V
Qrr Reverse Recovery Charge VDS= 20 V, IF = 24 A, di/dt = 300 A/μs 17 nC
trr Reverse Recovery Time 14 ns

Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance(1) 1.2 °C/W
RθJA Junction-to-Ambient Thermal Resistance(1)(2) 50
RθJC is determined with the device mounted on a 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu pad on a 1.5-inches × 1.5-inches
(3.81-cm × 3.81-cm), 0.06-inch (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
Device mounted on FR4 material with 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu.

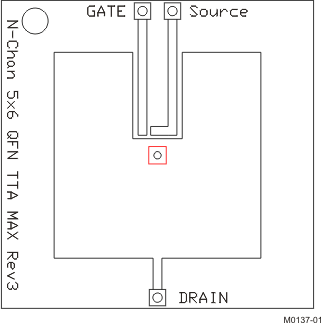

CSD18511Q5A M0137-01_LPS198.gif
Max RθJA = 50°C/W when mounted on 1 inch2 (6.45-cm2) of
2-oz. (0.071-mm thick) Cu.
CSD18511Q5A M0137-02_LPS198.gif
Max RθJA = 125°C/W when mounted on a minimum pad area of 2-oz.
(0.071-mm thick) Cu.

Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

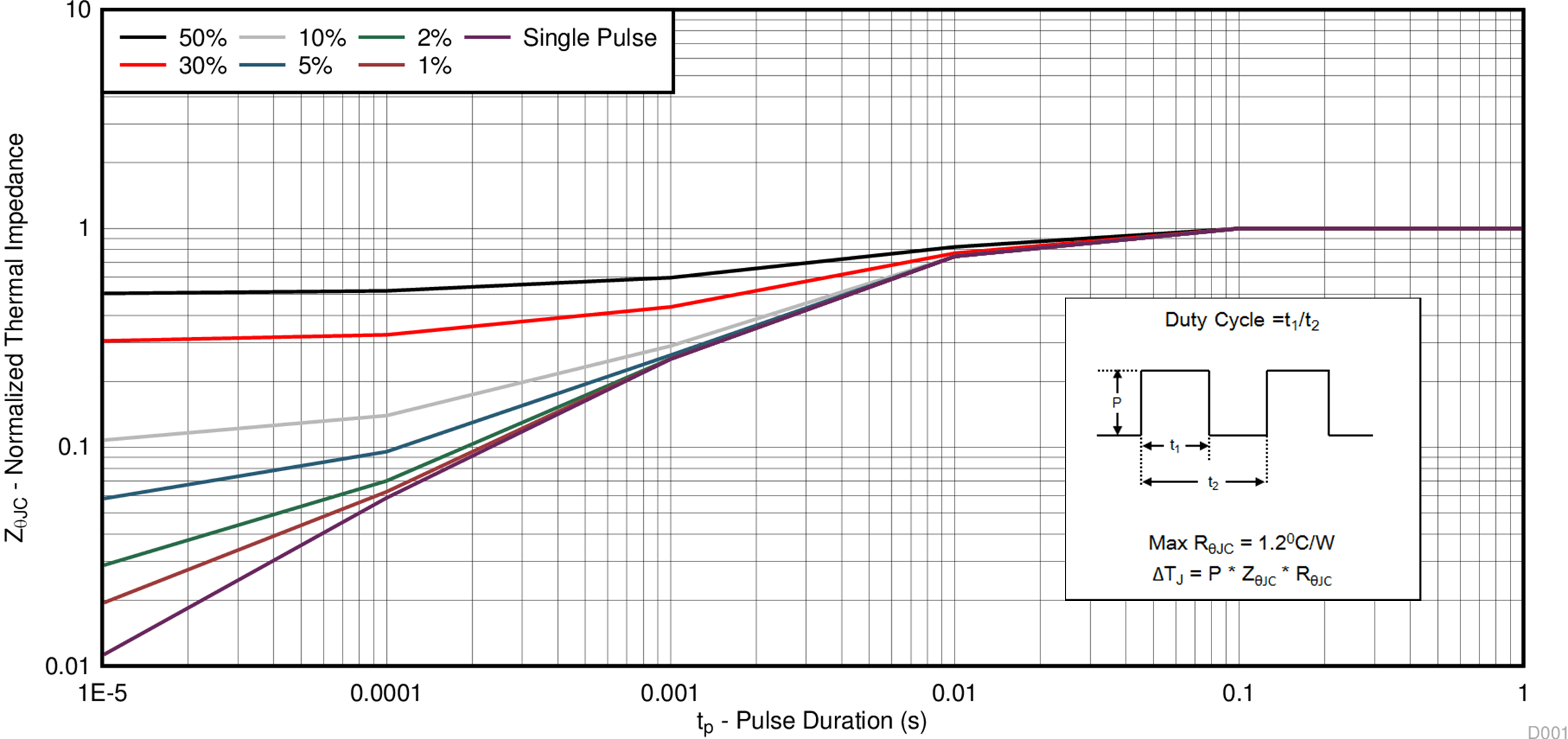

CSD18511Q5A D001_SLPS631.png
Figure 1. Transient Thermal Impedance

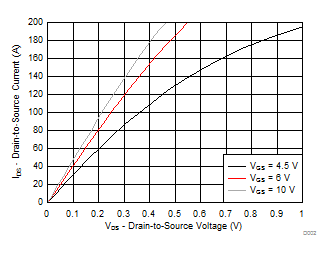

CSD18511Q5A D002_SLPS631.gif
Figure 2. Saturation Characteristics

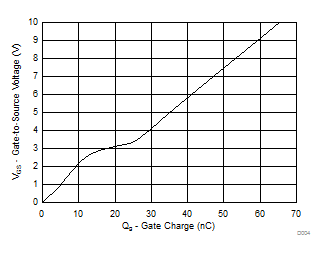

CSD18511Q5A D004_SLPS631.gif
ID = 24 A, VDS = 20 V
Figure 4. Gate Charge

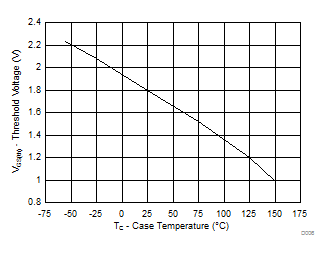

CSD18511Q5A D006_SLPS631.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature

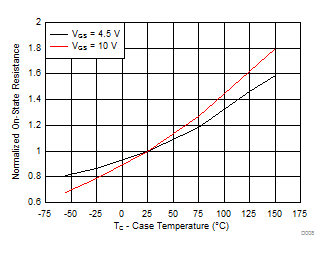

CSD18511Q5A D008_SLPS631.gif
ID = 24 A
Figure 8. Normalized On-State Resistance vs Temperature

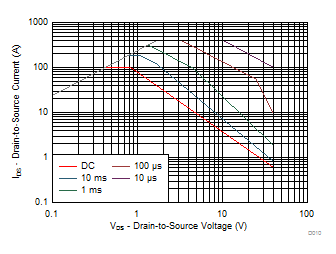

CSD18511Q5A D010_SLPS631.gif
Single pulse, max RθJC= 1.2°C/W
Figure 10. Maximum Safe Operating Area

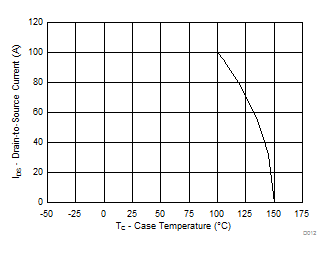

CSD18511Q5A D012_SLPS631.gif
Max RθJC= 1.2°C/W
Figure 12. Maximum Drain Current vs Temperature

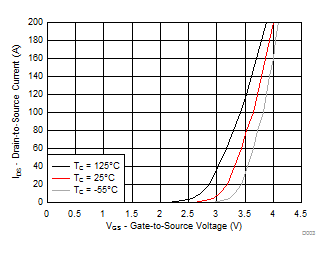

CSD18511Q5A D003_SLPS631.gif
VDS = 5 V
Figure 3. Transfer Characteristics

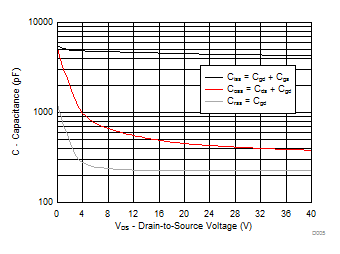

CSD18511Q5A D005_SLPS631.gif
Figure 5. Capacitance
CSD18511Q5A D007_SLPS631.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18511Q5A D009_SLPS631.gif
Figure 9. Typical Diode Forward Voltage

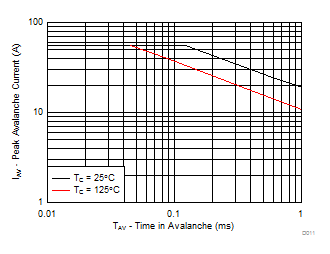

CSD18511Q5A D011_SLPS631.gif
Figure 11. Single Pulse Unclamped Inductive Switching
