5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = 250 μA 30 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 24 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = 250 μA 1.1 1.5 1.9 V
RDS(on) Drain-to-source on-resistance VGS = 4.5 V, ID = 8 A 11.8 14.2 mΩ
VGS = 10 V, ID = 8 A 8.7 10.2 mΩ
gfs Transconductance VDS = 3 V, ID = 8 A 37 S
DYNAMIC CHARACTERISTICS
Ciss Input capacitance VGS = 0 V, VDS = 15 V, ƒ = 1 MHz 768 998 pF
Coss Output capacitance 93 121 pF
Crss Reverse transfer capacitance 38 49 pF
RG Series gate resistance 1.9 3.8 Ω
Qg Gate charge total (4.5 V) VDS = 15 V, ID = 8 A 5.3 6.9 nC
Qg Gate charge total (10 V) 11.5 15.0 nC
Qgd Gate charge gate-to-drain 1.2 nC
Qgs Gate charge gate-to-source 2.2 nC
Qg(th) Gate charge at Vth 1.1 nC
Qoss Output charge VDS = 15 V, VGS = 0 V 3.0 nC
td(on) Turn on delay time VDS = 15 V, VGS = 10 V,
IDS = 8 A, RG = 0 Ω		 2 ns
tr Rise time 5 ns
td(off) Turn off delay time 11 ns
tf Fall time 1 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage ISD = 8 A, VGS = 0 V 0.8 1.0 V
Qrr Reverse recovery charge VDS= 15 V, IF = 8 A,
di/dt = 300 A/μs		 3.4 nC
trr Reverse recovery time 5 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance (1) 5.4 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 60 °C/W
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inch × 1.5 inch
(3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.

CSD17579Q3A m0161-01_lps202.gif
Max RθJA = 60°C/W when mounted on 1 inch2 (6.45 cm2) of
2 oz. (0.071 mm thick) Cu.
CSD17579Q3A m0161-02_lps202.gif
Max RθJA = 145°C/W when mounted on a minimum pad area of 2 oz. (0.071 mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

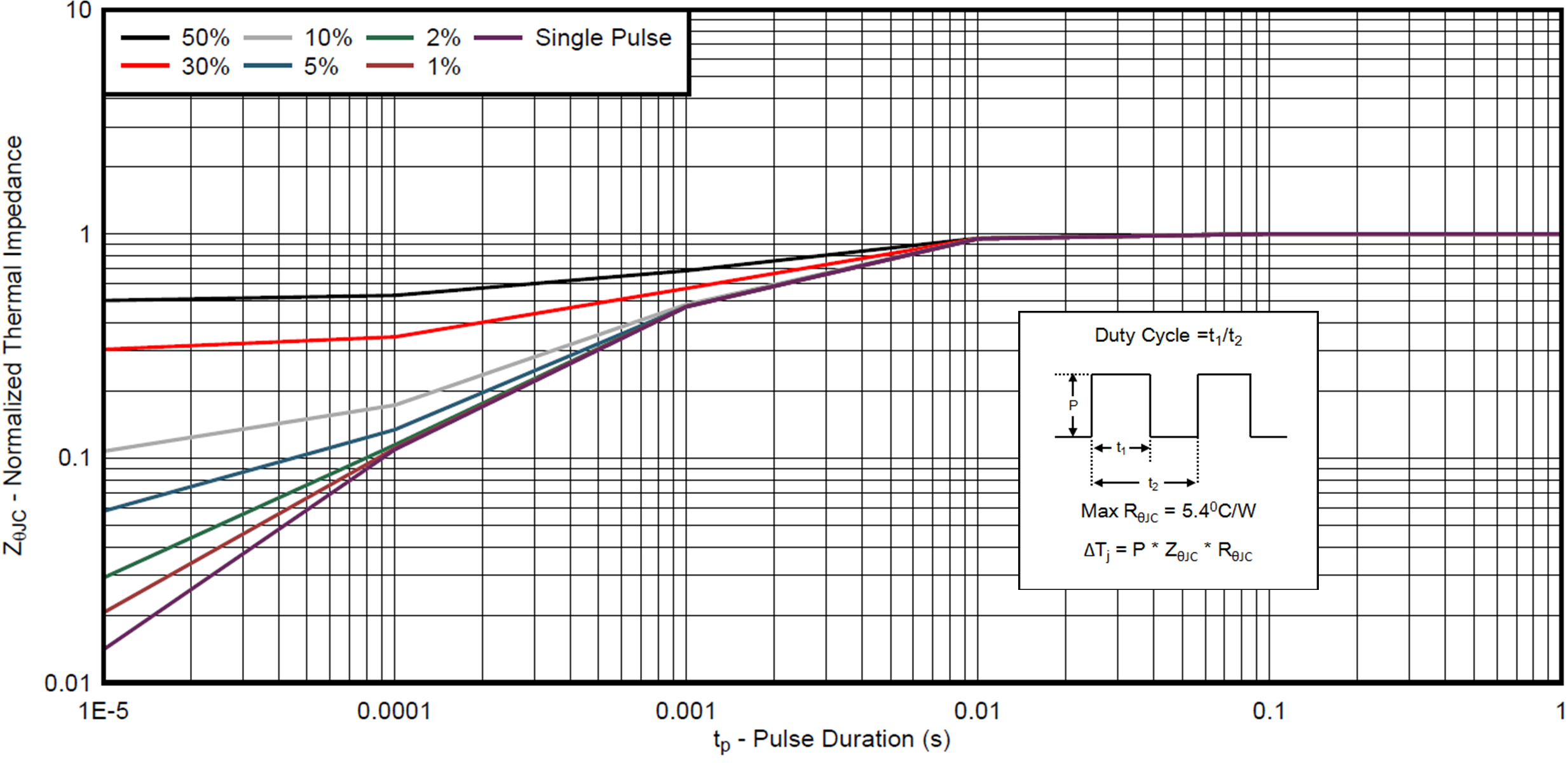

CSD17579Q3A D001_SLPS527_mod.png
Figure 1. Transient Thermal Impedance

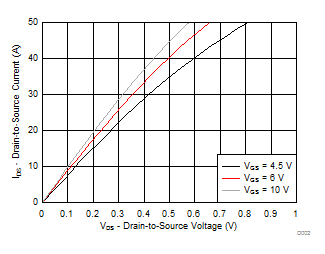

CSD17579Q3A D002_SLPS527.gif
Figure 2. Saturation Characteristics
CSD17579Q3A D004_SLPS527.gif
ID = 8 A VDS = 15 V
Figure 4. Gate Charge
CSD17579Q3A D006_SLPS527.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD17579Q3A D008_SLPS527.gif
ID = 8 A
Figure 8. Normalized On-State Resistance vs Temperature

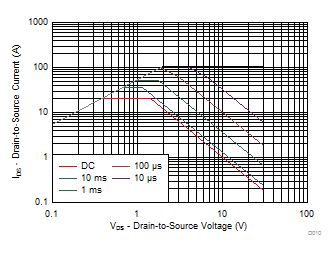

CSD17579Q3A D010_SLPS527p2.gif
Single Pulse, Max RθJC = 5.4°C/W
Figure 10. Maximum Safe Operating Area

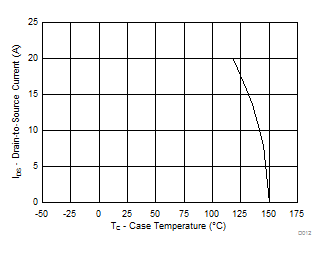

CSD17579Q3A D012_SLPS527.gif
Figure 12. Maximum Drain Current vs Temperature
CSD17579Q3A D003_SLPS527.gif
VDS = 5 V
Figure 3. Transfer Characteristics

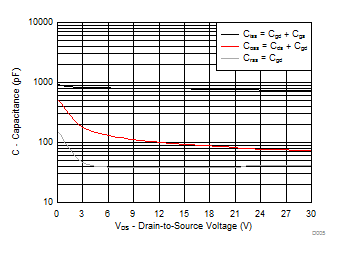

CSD17579Q3A D005_SLPS527.gif
Figure 5. Capacitance
CSD17579Q3A D007_SLPS527.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage

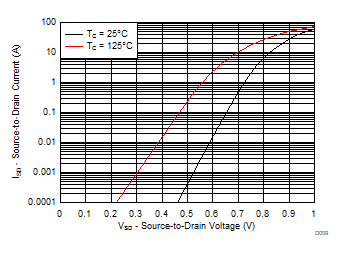

CSD17579Q3A D009_SLPS527.gif
Figure 9. Typical Diode Forward Voltage
CSD17579Q3A D011_SLPS527.gif
Figure 11. Single Pulse Unclamped Inductive Switching
