5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, ID = 250 μA 30 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 24 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, ID = 250 μA 1.1 1.5 1.9 V
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V, ID = 10 A 7.9 9.3
VGS = 10 V, ID = 10 A 5.9 6.9
gƒs Transconductance VDS = 3 V, ID = 10 A 44 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 15 V, ƒ = 1 MHz 1170 1510 pF
Coss Output Capacitance 136 177 pF
Crss Reverse Transfer Capacitance 58 75 pF
RG Series Gate Resistance 1.8 3.6 Ω
Qg Gate Charge Total (4.5 V) VDS = 15 V, ID = 10 A 7.9 10.3 nC
Qg Gate Charge Total (10 V) 17.2 22.3 nC
Qgd Gate Charge Gate-to-Drain 2.0 nC
Qgs Gate Charge Gate-to-Source 3.1 nC
Qg(th) Gate Charge at Vth 1.7 nC
Qoss Output Charge VDS = 15 V, VGS = 0 V 4.2 nC
td(on) Turn On Delay Time VDS = 15 V, VGS = 10 V,
IDS = 10 A, RG = 0 Ω
4 ns
tr Rise Time 22 ns
td(off) Turn Off Delay Time 17 ns
tƒ Fall Time 2 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ISD = 10 A, VGS = 0 V 0.8 1.0 V
Qrr Reverse Recovery Charge VDS= 15 V, IF = 10 A,
di/dt = 300 A/μs
6.5 nC
trr Reverse Recovery Time 6.8 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance (1) 3.8 °C/W
RθJA Junction-to-Ambient Thermal Resistance(1)(2) 50
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inch × 1.5 inch (3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.
CSD17578Q5A M0137-01_LPS198.gif
Max RθJA = 50°C/W when mounted on 1 inch2 (6.45 cm2) of
2 oz. (0.071 mm thick) Cu.
CSD17578Q5A M0137-02_LPS198.gif
Max RθJA = 140°C/W when mounted on a minimum pad area of
2 oz. (0.071 mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD17578Q5A D001_SLPS526_r2.png
Figure 1. Transient Thermal Impedance
CSD17578Q5A D002_SLPS526.gif
Figure 2. Saturation Characteristics
CSD17578Q5A D004_SLPS526.gif
ID = 10 A VDS = 15 V
Figure 4. Gate Charge

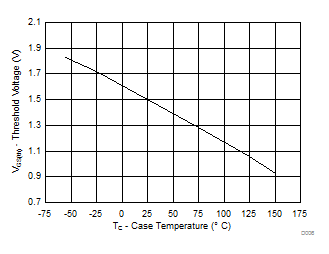

CSD17578Q5A D006_SLPS526.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD17578Q5A D008_SLPS526.gif
ID = 10 A
Figure 8. Normalized On-State Resistance vs Temperature

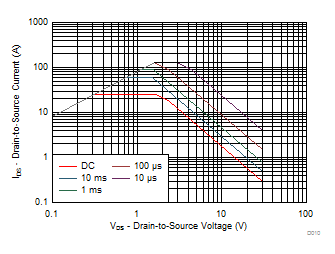

CSD17578Q5A D010_SLPS526_r3.gif
Single Pulse, Max RθJC = 3.8°C/W
Figure 10. Maximum Safe Operating Area
CSD17578Q5A D012_SLPS526.gif
Figure 12. Maximum Drain Current vs Temperature
CSD17578Q5A D003_SLPS526.gif
VDS = 5 V
Figure 3. Transfer Characteristics
CSD17578Q5A D005_SLPS526.gif
Figure 5. Capacitance
CSD17578Q5A D007_SLPS526.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD17578Q5A D009_SLPS526.gif
Figure 9. Typical Diode Forward Voltage
CSD17578Q5A D011_SLPS526.gif
Figure 11. Single Pulse Unclamped Inductive Switching
