5 Specifications

5.1 Electrical Characteristics

TA = 25°C (unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, IDS = 250 μA 30 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 24 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, IDS = 250 μA 1.1 1.6 2.1 V
RDS(on) Drain-to-source on resistance VGS = 4.5 V, IDS = 11 A 11.8 16.1 mΩ
VGS = 10 V, IDS = 11 A 9.0 10.8
gfs Transconductance VDS = 15 V, IDS = 11 A 44 S
DYNAMIC CHARACTERISTICS
Ciss Input capacitance VGS = 0 V, VDS = 15 V,
ƒ = 1 MHz		 410 530 pF
Coss Output capacitance 270 350 pF
Crss Reverse transfer capacitance 23 30 pF
RG Series gate resistance 0.7 1.4 Ω
Qg Gate charge total (4.5 V) VDS = 15 V, IDS = 11 A 2.8 3.6 nC
Qgd Gate charge gate-to-drain 0.7 nC
Qgs Gate charge gate-to-source 1.3 nC
Qg(th) Gate charge at Vth 0.7 nC
Qoss Output charge VDS = 13 V, VGS = 0 V 7.2 nC
td(on) Turnon delay time VDS = 15 V, VGS = 4.5 V,
IDS = 11 A, RG = 2 Ω		 4.7 ns
tr Rise time 5.2 ns
td(off) Turnoff delay time 5.7 ns
tf Fall time 2.3 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage ISD = 11 A, VGS = 0 V 0.85 1 V
Qrr Reverse recovery charge VDS= 13 V, IF = 11 A, di/dt = 300 A/μs 11 nC
trr Reverse recovery time 16 ns

5.2 Thermal Information

TA = 25°C (unless otherwise stated)
PARAMETER MIN TYP MAX UNIT
RθJC Thermal resistance junction-to-case(1) 2.1 °C/W
RθJA Thermal resistance junction-to-ambient(1)(2) 50 °C/W
(1) RθJC is determined with the device mounted on a 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 1.5-in × 1.5-in (3.81-cm × 3.81-cm), 0.06-in (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu.
CSD17507Q5A M0137-01_LPS198.gif
Max RθJA = 50°C/W when mounted on 1 in2 (6.45 cm2) of 2-oz (0.071-mm) thick Cu.
CSD17507Q5A M0137-02_LPS198.gif
Max RθJA = 125°C/W when mounted on a minimum pad area of 2-oz (0.071-mm) thick Cu.

5.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)
CSD17507Q5A D001_SLPS243.png
Figure 1. Transient Thermal Impedance
CSD17507Q5A D002_SLPS243E.gif

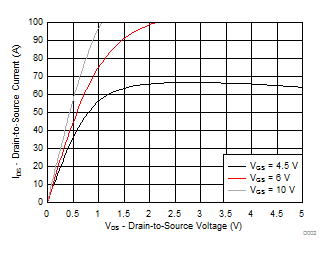

Figure 2. Saturation Characteristics
CSD17507Q5A D004_SLPS243E.gif
ID = 11 A VDS = 15 V
Figure 4. Gate Charge
CSD17507Q5A D006_SLPS243E.gif
ID = 250 µA

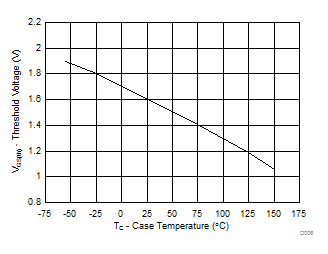

Figure 6. Threshold Voltage vs Temperature
CSD17507Q5A D008_SLPS243.gif
ID = 11 A, VGS = 10 V

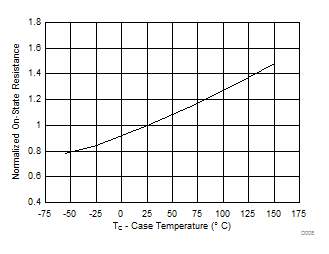

Figure 8. Normalized On-State Resistance vs Temperature
CSD17507Q5A D010_SLPS243.gif
Single pulse, max RθJC = 2.1°C/W

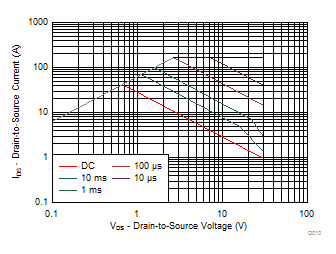

Figure 10. Maximum Safe Operating Area
CSD17507Q5A D012_SLPS243.gif

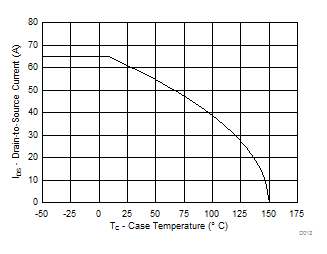

Figure 12. Maximum Drain Current vs Temperature
CSD17507Q5A D003_SLPS243E.gif
VDS = 5 V

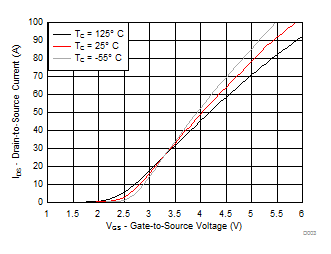

Figure 3. Transfer Characteristics
CSD17507Q5A D005_SLPS243E.gif

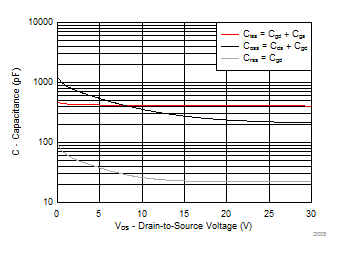

Figure 5. Capacitance
CSD17507Q5A D007_SLPS243E.gif
ID = 11 A
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD17507Q5A D009_SLPS243E.gif
Figure 9. Typical Diode Forward Voltage
CSD17507Q5A D011_SLPS243.gif
Figure 11. Single Pulse Unclamped Inductive Switching
