7 Mechanical, Packaging, and Orderable Information

7.1 Q2 Package Dimensions

CSD17313Q2 M0175-02_LPS260.gif
DIM MILLIMETERS INCHES
MIN NOM MAX MIN NOM MAX
A 0.700 0.750 0.800 0.028 0.030 0.032
A1 0.000 0.050 0.000 0.002
b 0.250 0.300 0.350 0.010 0.012 0.014
C 0.203 TYP 0.008 TYP
D 2.000 TYP 0.080 TYP
D1 0.900 0.950 1.000 0.036 0.038 0.040
D2 0.300 TYP 0.012 TYP
E 2.000 TYP 0.080 TYP
E1 0.900 1.000 1.100 0.036 0.040 0.044
E2 0.280 TYP 0.0112 TYP
E3 0.470 TYP 0.0188 TYP
e 0.650 BSC 0.026 TYP
K 0.280 TYP 0.0112 TYP
K1 0.350 TYP 0.014 TYP
K2 0.200 TYP 0.008 TYP
K3 0.200 TYP 0.008 TYP
K4 0.470 TYP 0.0188 TYP
L 0.200 0.25 0.300 0.008 0.010 0.012

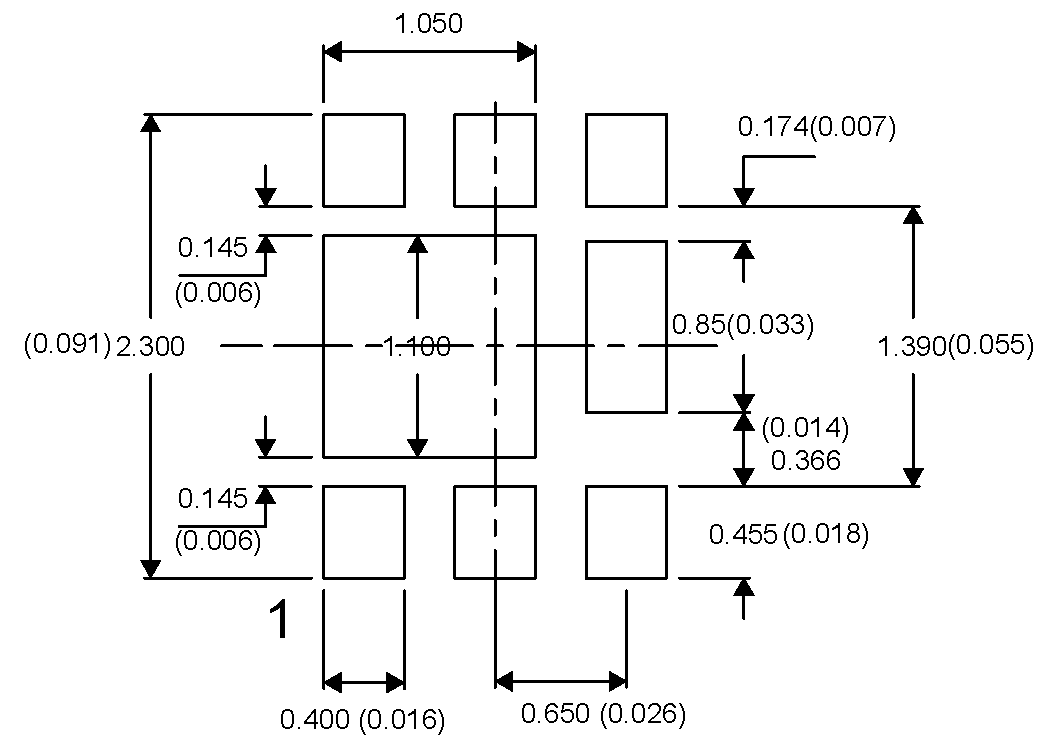

7.2 Recommended PCB Pattern

CSD17313Q2 Recommended_PCB_Pattern.png

For recommended circuit layout for PCB designs, see application note SLPA005 – Reducing Ringing through PCB Layout Techniques.

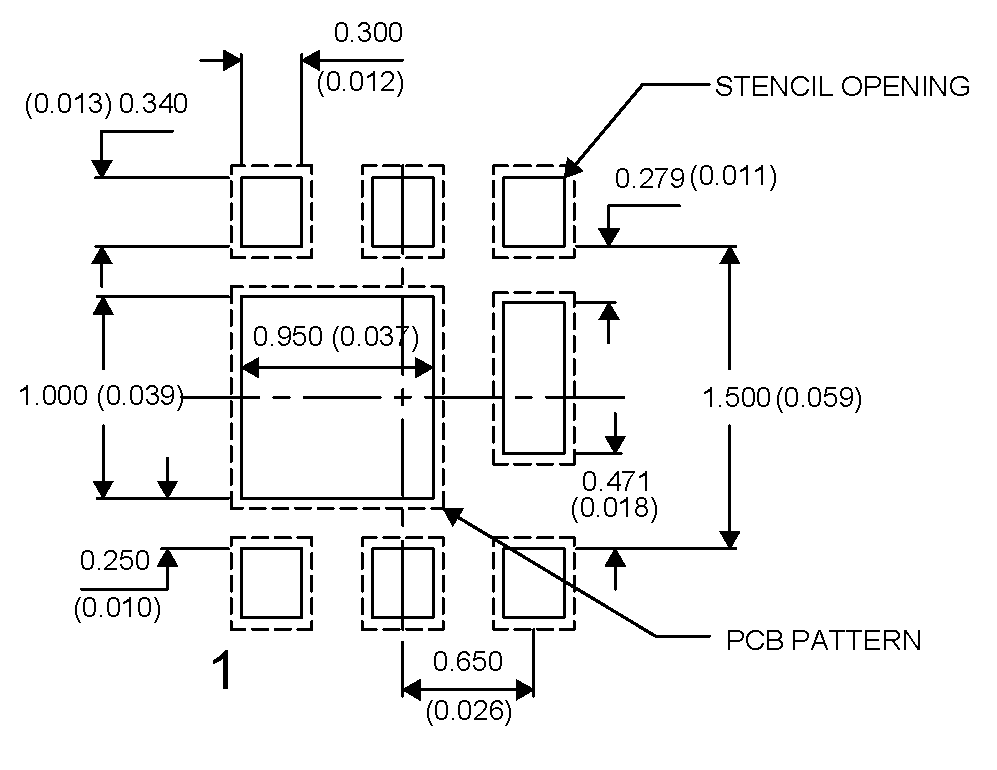

7.3 Recommended Stencil Pattern

CSD17313Q2 Recommended_Stencil_Pattern.png

NOTE:

All dimensions are in mm, unless otherwise specified.

7.4 Q2 Tape and Reel Information

CSD17313Q2 M0168-01_LPS235.gif

NOTES:

1. Measured from centerline of sprocket hole to centerline of pocket
2. Cumulative tolerance of 10 sprocket holes is ±0.20
3. Other material available
4. Typical SR of form tape Max 108 OHM/SQ
5. All dimensions are in mm, unless otherwise specified.
