Specifications

Electrical Characteristics

TA = 25°C (unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = 250 μA 25 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 20 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = +16 / –12 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = 250 μA 1.7 2 2.3 V
RDS(on) Drain-to-source on resistance VGS = 4.5 V, ID = 10 A 12 15
VGS = 10 V, ID = 10 A 8 10
gfs Transconductance VDS = 15 V, ID = 10 A 30 S
DYNAMIC CHARACTERISTICS
CISS Input capacitance VGS = 0 V, VDS = 12.5 V, f = 1 MHz 440 570 pF
COSS Output capacitance 330 430 pF
CRSS Reverse transfer capacitance 33 43 pF
Rg Series gate resistance 0.8 1.6 Ω
Qg Gate charge total (4.5 V) VDS = 12.5 V, ID = 10 A 2.9 3.8 nC
Qgd Gate charge gate-to-drain 0.7 nC
Qgs Gate charge gate-to-source 1.5 nC
Qg(th) Gate charge at Vth 0.9 nC
QOSS Output charge VDS = 12.5 V, VGS = 0 V 6.5 nC
td(on) Turnon delay time VDS = 12.5 V, VGS = 4.5 V, ID = 10 A
RG = 2 Ω
5.3 ns
tr Rise time 7.8 ns
td(off) Turnoff delay time 6 ns
tf Fall time 3.1 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage IS = 10 A, VGS = 0 V 0.85 1 V
Qrr Reverse recovery charge VDD = 12.5 V, IF = 10 A, di/dt = 300 A/μs 11.7 nC
trr Reverse recovery time VDD = 12.5 V, IF = 10 A, di/dt = 300 A/μs 15.5 ns

Thermal Information

TA = 25°C (unless otherwise stated)
PARAMETER MIN TYP MAX UNIT
R θJC Junction-to-case thermal resistance(1) 3.5 °C/W
R θJA Junction-to-ambient thermal resistance(1) (2) 55 °C/W
RθJC is determined with the device mounted on a 1-in2 2-oz Cu pad on a 1.5-in × 1.5-in 0.06-in thick FR4 board. RθJC is specified by design while RθJA is determined by the user’s board design.
Device mounted on FR4 Material with 1-in2 of 2-oz Cu.
CSD16411Q3 m0161-01_lps202.gif
Max RθJA = 55°C/W when mounted on 1-in2 of 2-oz Cu.
CSD16411Q3 m0161-02_lps202.gif
Max RθJA = 160°C/W when mounted on minimum pad area of 2-oz Cu.

Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)
CSD16411Q3 D001_SLPS206.png
Figure 1. Transient Thermal Impedance
CSD16411Q3 D002_SLPS206A.gif
Figure 2. Saturation Characteristics
CSD16411Q3 D004_SLPS206A.gif
VDS = 12.5 V, ID = 10 A
Figure 4. Gate Charge
CSD16411Q3 D006_SLPS206A.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD16411Q3 D008_SLPS206.gif
ID = 10 A, VGS = 10 V
Figure 8. On Resistance vs Temperature
CSD16411Q3 D010_SLPS206.gif

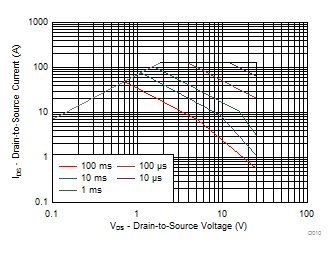

Single pulse, max RθJC = 3.5°C/W
Figure 10. Maximum Safe Operating Area
CSD16411Q3 D012_SLPS206A.gif
Figure 12. Maximum Drain Current vs Temperature
CSD16411Q3 D003_SLPS206A.gif
VDS = 5 V
Figure 3. Transfer Characteristics
CSD16411Q3 D005_SLPS206A.gif
Figure 5. Capacitance
CSD16411Q3 D007_SLPS206A.gif
Figure 7. On Resistance vs Gate Voltage
CSD16411Q3 D009_SLPS206A.gif
Figure 9. Typical Diode Forward Voltage
CSD16411Q3 D011_SLPS206.gif
Figure 11. Single Pulse Unclamped Inductive Switching
