5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = 250 μA 25 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 20 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = +16/–12 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = 250 μA 1.4 1.8 2.2 V
RDS(on) Drain-to-source on-resistance VGS = 4.5 V, ID = 20 A 5.9 7.4 mΩ
VGS = 10 V, ID = 20 A 4.2 5.3 mΩ
gfs Transconductance VDS = 15 V, ID = 20 A 53 S
DYNAMIC CHARACTERISTICS
CISS Input capacitance VGS = 0 V, VDS = 12.5 V, ƒ = 1 MHz 840 1100 pF
COSS Output capacitance 680 950 pF
CRSS Reverse transfer capacitance 57 80 pF
Rg Series gate resistance 1.2 2.4 Ω
Qg Gate charge total (4.5 V) VDS = 12.5 V, ID = 20 A 5.8 8.1 nC
Qgd Gate charge gate to drain 1.5 nC
Qgs Gate charge gate to source 2.5 nC
Qg(th) Gate charge at Vth 1.5 nC
QOSS Output charge VDS = 13.6 V, VGS = 0 V 13.9 nC
td(on) Turn on delay time VDS = 12.5 V, VGS = 4.5 V ID = 20 A
RG = 2 Ω		 7.3 ns
tr Rise time 12.9 ns
td(off) Turn off delay time 8.5 ns
tf Fall time 4.8 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage IS = 20 A, VGS = 0 V 0.85 1.0 V
Qrr Reverse recovery charge VDD = 13.6 V, IF = 20 A, di/dt = 300 A/μs 18 nC
trr Reverse recovery time VDD = 13.6 V, IF = 20 A, di/dt = 300 A/μs 22 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance (1) 2.7 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 55 °C/W
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inch × 1.5 inch (3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.
CSD16406Q3 m0161-01_lps202.gif
Max RθJA = 55°C/W when mounted on 1 inch2 of 2 oz. Cu.
CSD16406Q3 m0161-02_lps202.gif
Max RθJA = 160°C/W when mounted on minimum pad area of 2 oz. Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD16406Q3 D001_SLPS202.png
Figure 1. Transient Thermal Impedance

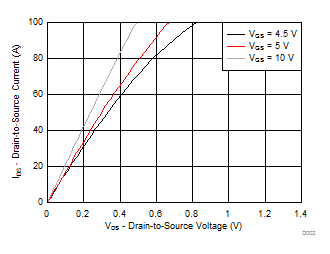

CSD16406Q3 D002_SLPS202.gif
Figure 2. Saturation Characteristics
CSD16406Q3 D004_SLPS202.gif
ID = 20 A VDS = 12.5 V
Figure 4. Gate Charge
CSD16406Q3 D006_SLPS202.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature

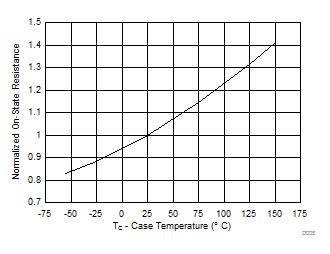

CSD16406Q3 D008_SLPS202.gif
ID = 20 A VGS = 10 V
Figure 8. Normalized On-Resistance vs Temperature

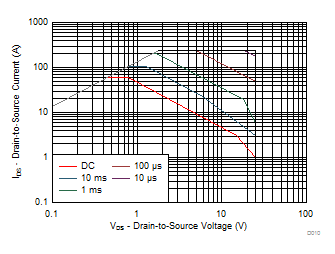

CSD16406Q3 D010_SLPS202.gif
Single Pulse, Max RθJC = 2.7°C/W
Figure 10. Maximum Safe Operating Area

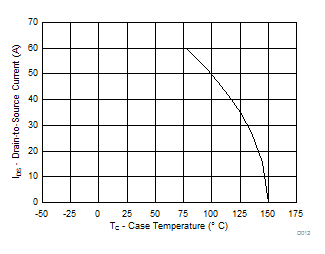

CSD16406Q3 D012_SLPS202.gif
Figure 12. Maximum Drain Current vs Temperature
CSD16406Q3 D003_SLPS202.gif
VDS = 5 V
Figure 3. Transfer Characteristics
CSD16406Q3 D005_SLPS202.gif
Figure 5. Capacitance
CSD16406Q3 D007_SLPS202.gif
Figure 7. On Resistance vs Gate Voltage
CSD16406Q3 D009_SLPS202.gif
Figure 9. Typical Diode Forward Voltage
CSD16406Q3 D011_SLPS202.gif
Figure 11. Single Pulse Unclamped Inductive Switching
