7 Parameter Measurement Information

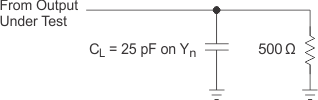

CDCVF2310 test_load_cktcas666.gif
A. CL includes probe and jig capacitance.
B. All input pulses are supplied by generators having the following characteristics: PRR ≤ 200 MHz, ZO = 50 Ω,
tr < 1.2 ns, tf < 1.2 ns.
Figure 2. Test Load Circuit

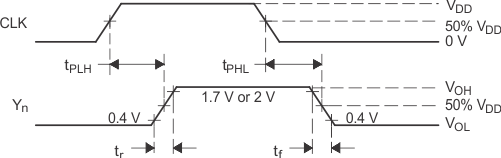

CDCVF2310 prop_delay_cas666.gif Figure 3. Voltage Waveforms Propagation Delay Times
CDCVF2310 output_skew_cas666.gif Figure 4. Output Skew
CDCVF2310 pulse_skew_cas666.gif

NOTE:

tsk(p) = | tPLH – tPHL |
Figure 5. Pulse Skew
