7 Parameter Measurement Information

7.1 Test Configurations

This section describes the function of each block for the CDCLVP1102. Figure 3 through Figure 9 illustrate how the device should be setup for a variety of test configurations.

CDCLVP1102 ai_test_lvcmos_dc_in_cas884.gif Figure 3. DC-Coupled LVCMOS Input During Device Test
CDCLVP1102 ai_vth_var_lvcmos_in_cas884.gif Figure 4. Vth Variation Over LVCMOS Levels
CDCLVP1102 ai_test_lvpecl_dc_in_cas884.gif Figure 5. DC-Coupled LVPECL Input During Device Test
CDCLVP1102 ai_test_lvds_dc_in_cas884.gif Figure 6. DC-Coupled LVDS Input During Device Test

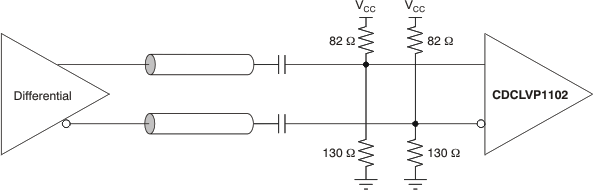

CDCLVP1102 ai_test_diff_ac_in_cas884.gif Figure 7. AC-Coupled Differential Input to Device
CDCLVP1102 ai_test_lvpecl_dc_out_cas884.gif Figure 8. LVPECL Output DC Configuration During Device Test
CDCLVP1102 ai_test_lvpecl_ac_out_cas884.gif Figure 9. LVPECL Output AC Configuration During Device Test

Figure 10 shows the output voltage and rise/fall time. Output and part-to-part skew are shown in Figure 11.

CDCLVP1102 ai_vo_tr_tf_cas884.gif Figure 10. Output Voltage and Rise/Fall Time
CDCLVP1102 ai_vo_skew_cas884.gif
1. Output skew is calculated as the greater of the following: As the difference between the fastest and the slowest tPLHn (n = 0, 1), or as the difference between the fastest and the slowest tPHLn (n = 0, 1).
2. Part-to-part skew is calculated as the greater of the following: As the difference between the fastest and the slowest tPLHn (n = 0, 1) across multiple devices, or the difference between the fastest and the slowest tPHLn (n = 0, 1) across multiple devices.
Figure 11. Output and Part-to-Part Skew
