8.26.4 RX Performance

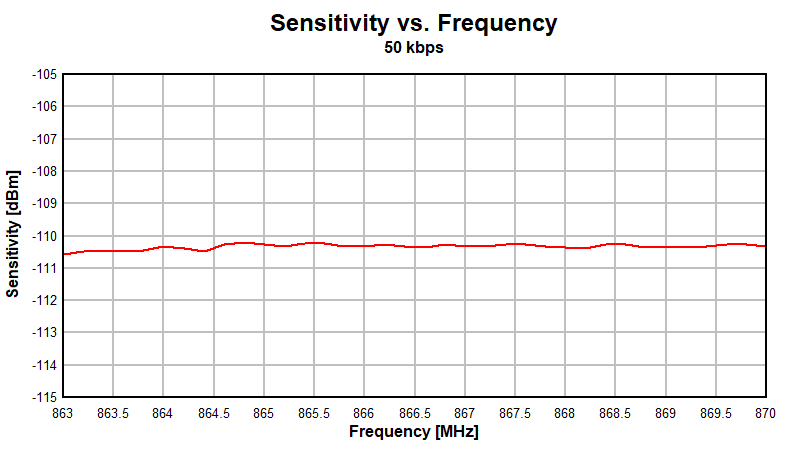

Figure 8-17 Sensitivity vs. Frequency (50 kbps, 868 MHz)

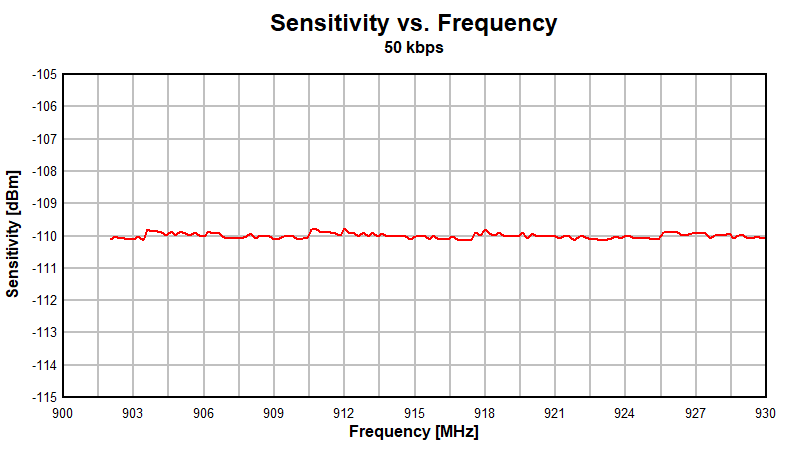

Figure 8-18 Sensitivity vs. Frequency (50 kbps, 915 MHz)
Figure 8-19 Sensitivity vs. Frequency (BLE 1 Mbps, 2.44 GHz)

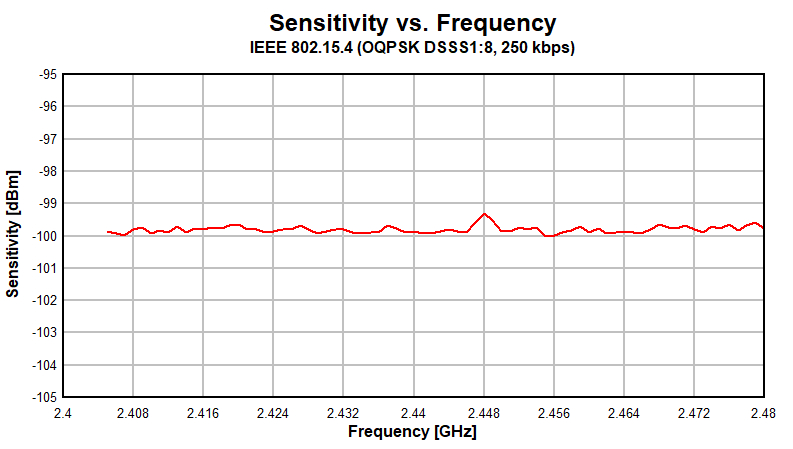

Figure 8-20 Sensitivity vs. Frequency (250 kbps, 2.44 GHz)

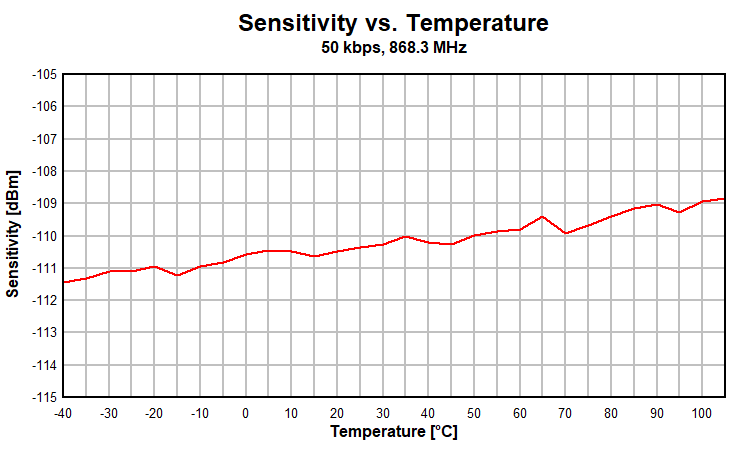

Figure 8-21 Sensitivity vs. Temperature (50 kbps, 868.3 MHz)
Figure 8-22 Sensitivity vs. Temperature (BLE 1 Mbps, 2.44 GHz)

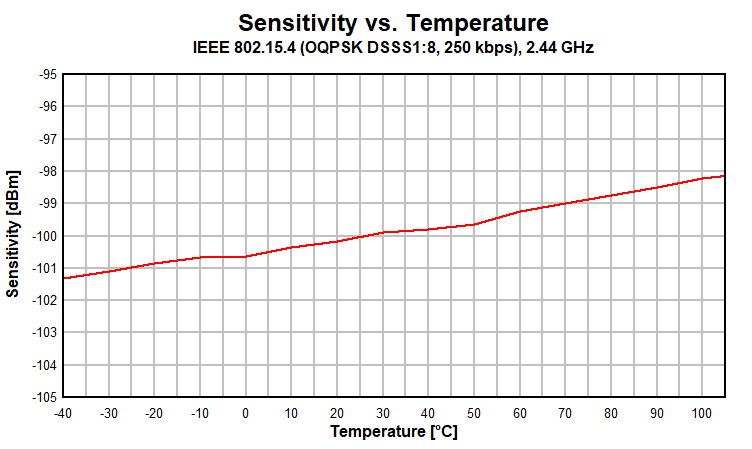

Figure 8-23 Sensitivity vs. Temperature (250 kbps, 2.44 GHz)
Figure 8-24 Sensitivity vs. Supply Voltage (VDDS) (50 kbps, 868.3 MHz)
Figure 8-25 Sensitivity vs. Supply Voltage (VDDS) (BLE 1 Mbps, 2.44 GHz)

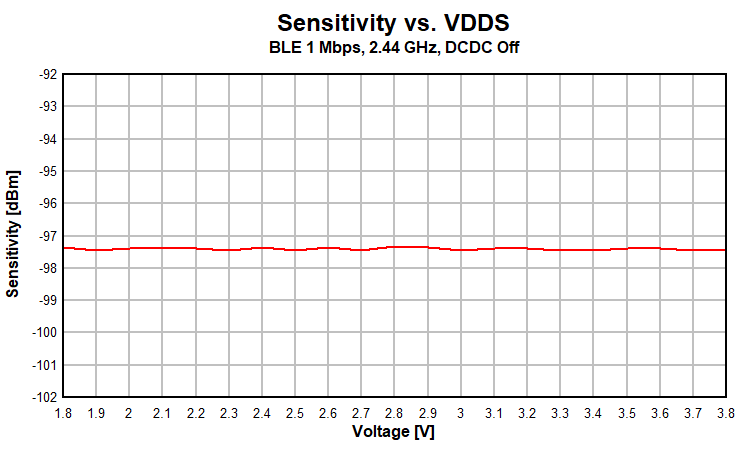

Figure 8-26 Sensitivity vs. Supply Voltage (VDDS) (BLE 1 Mbps, 2.44 GHz, DCDC
Off)

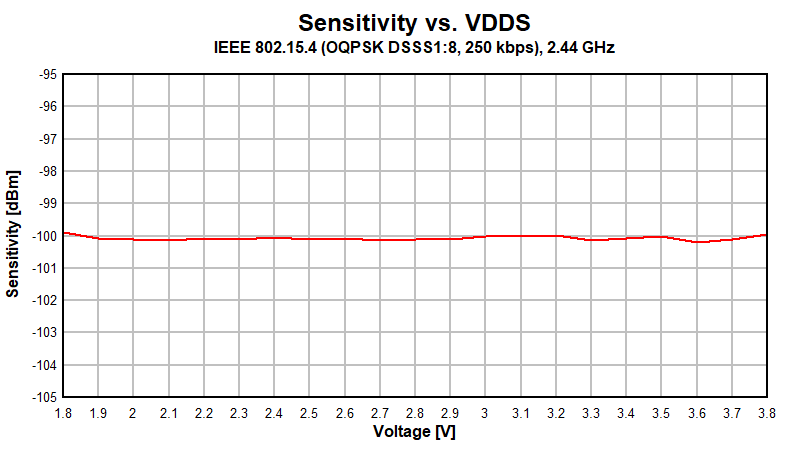

Figure 8-27 Sensitivity vs. Supply Voltage (VDDS) (250 kbps, 2.44 GHz)

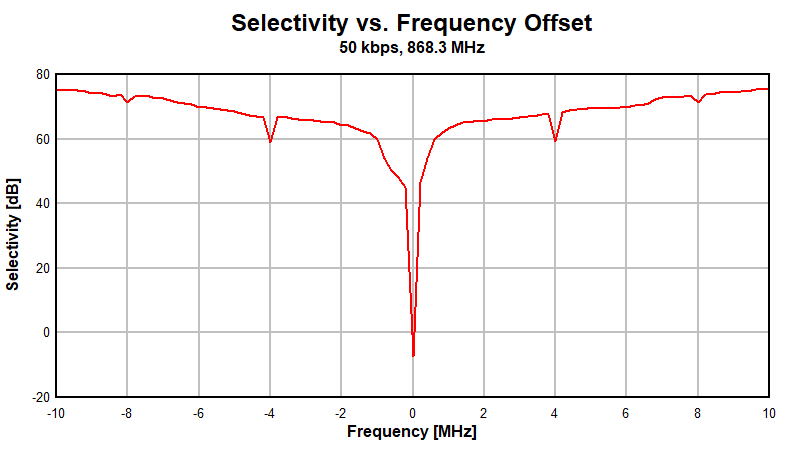

Figure 8-28 Selectivity vs. Frequency Offset (50 kbps, 868.3 MHz)

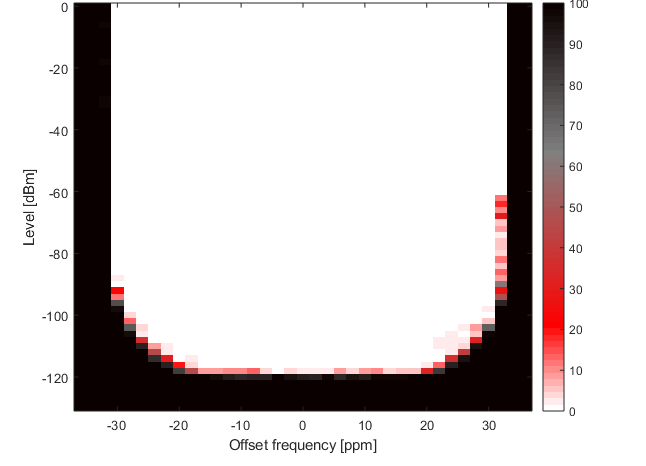

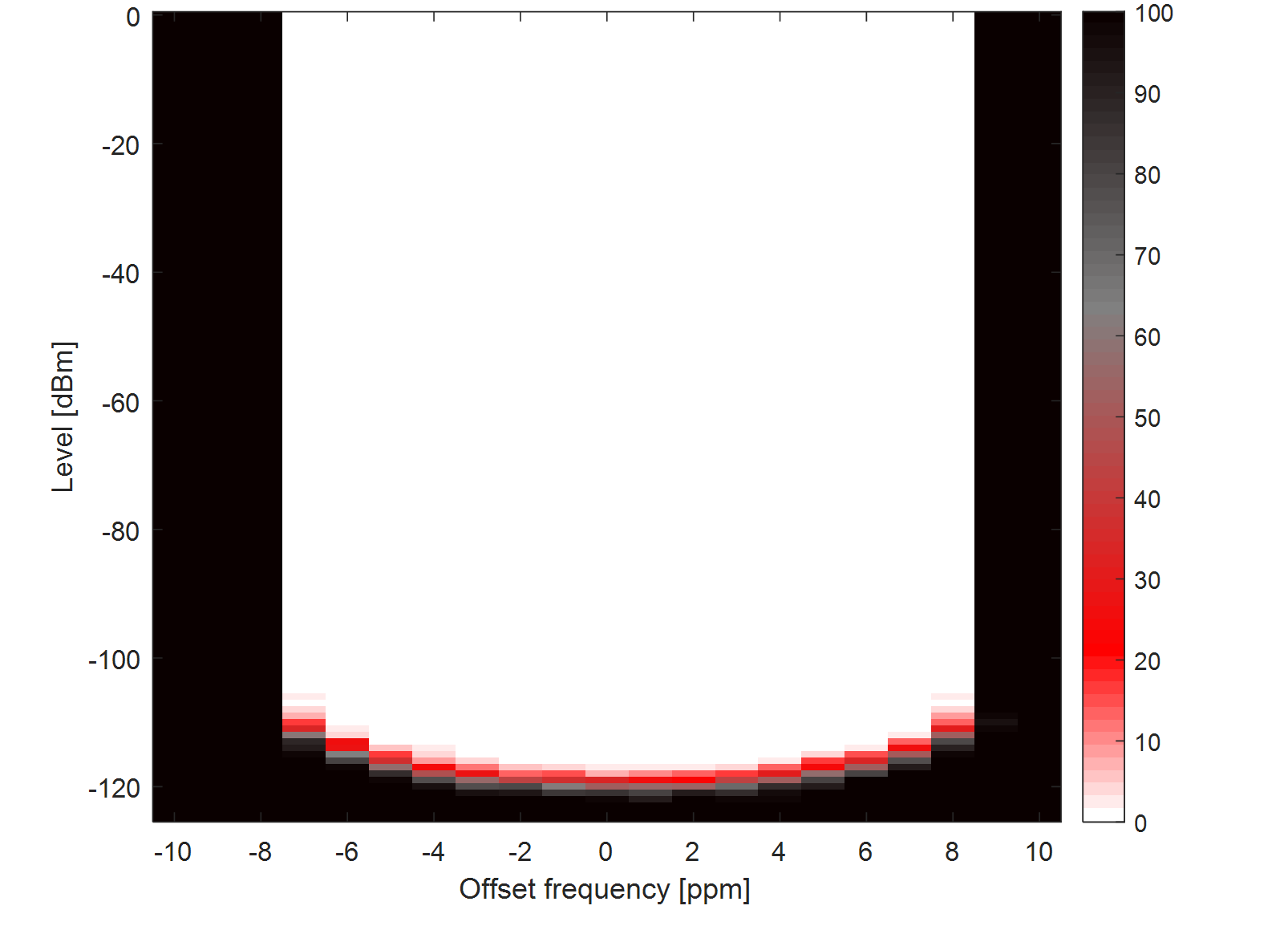

Figure 8-29 PER vs. Level vs. Frequency (SimpleLink™ Long Range 5 kbps, 868
MHz)
Figure 8-30 Narrowband, 9.6 kbps ±2.4 kHz deviation, 2-GFSK, 868 MHz, 17.1 kHz RX Bandwidth
Figure 8-31 Narrowband, 4.8 kbps ±2 kHz deviation, 2-GFSK, 426.1 MHz, 10.1 kHz RX Bandwidth
Figure 8-32 Narrowband, WMBUS N-MODE, 2.4 kbps, 169 MHz
