5 Pin Configuration and Functions

PW Package
24-Pin TSSOP
Top View

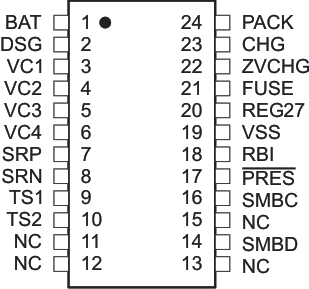

bq3060 po_lus928.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
BAT 1 P Power input from battery
DSG 2 O P-CH FET Drive controlling discharge
VC1 3 IA Sense voltage input terminal and external cell balancing drive output for most positive cell, and battery stack measurement input.
VC2 4 IA Sense voltage input terminal and external cell balancing drive output for second most positive cell.
VC3 5 IA Sense voltage input terminal and external cell balancing drive output for third most positive cell.
VC4 6 IA Sense voltage input terminal and external cell balancing drive output for least positive cell.
SRP 7 IA Analog input pin connected to the internal coulomb-counter peripheral for integrating a small voltage between SRP and SRN where SRP is the top of the sense resistor.
SRN 8 IA Analog input pin connected to the internal coulomb-counter peripheral for integrating a small voltage between SRP and SRN where SRN is the bottom of the sense resistor.
TS1 9 I/O,IA Thermistor input TS1
TS2 10 I/O,IA Thermistor input TS2
NC 11 — Keep this pin floating
NC 12 — Keep this pin floating
NC 13 — Keep this pin floating
SMBD 14 I/OD SMBus data pin
NC 15 — Keep this pin floating
SMBC 16 I/OD SMBus clock pin
PRES 17 I/OD Active low input to sense system insertion and typically requires additional ESD protection
RBI 18 P RAM backup pin to provide backup potential to the internal DATA RAM if power is momentarily lost by using a capacitor attached between RBI and VSS
VSS 19 P Device ground
REG27 20 P Internal power supply 2.7V bias output
FUSE 21 I/OD Push-pull fuse drive and secondary protector activation input sensing
ZVCHG 22 O P-CH precharge FET Drive controlling pre-charge and zero-volt charge
CHG 23 O P-CH FET Drive controlling charge
PACK 24 P PACK positive terminal and alternative power source
