6.5 Electrical Characteristics

Typical values stated where TA = 25°C and VBAT = VPACK = 14.4 V, Minimum/Maximum values stated where TA = –40°C to 85°C and VBAT = VPACK = 3.8 V to 25 V (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
GENERAL PURPOSE I/O
VIH High-level input voltage /PRES, SMBD, SMBC, TS1, TS2 2 V
VIL Low-level input voltage /PRES, SMBD, SMBC, TS1, TS2 0.8 V
VOH Output voltage high /PRES, SMBD, SMBC, TS1, TS2, IL = –0.5 mA VREG27–0.5 V
VOH(FUSE) High level fuse output VBAT = 3.8 V to 9 V, CL = 1 nF 3 VBAT–0.3 8.6 V
VBAT = 9 V to 25 V, CL = 1nF 7.5 8 9
tR(FUSE) FUSE output rise time CL = 1 nF,
VOH(FUSE) = 0 V to 5 V		 10 μs
ZO(FUSE) FUSE output impedance 2 6 kΩ
VFUSE_DET FUSE detect input voltage 0.8 2 3.2 V
VOL Low-level output voltage /PRES, SMBD, SMBC, TS1, TS2, IL = 7 mA 0.4 V
CIN Input capacitance 5 pF
Ilkg Input leakage current /PRES, SMBD, SMBC, TS1, TS2
SMBD and SMBC pull-down disabled		 1 μA
RPD(SMBx) SMBD and SMBC pull-down TA = –40°C to 100°C 600 950 1300 kΩ
RPAD Pad resistance TS1, TS2 87 110 Ω
SUPPLY CURRENT
ICC Normal mode Firmware running, no flash writes 441 μA
ISLEEP Sleep mode Discharge FET ON, Charge FET ON ([NR]=1, [NRCHG]=1) 69 μA
Discharge FET ON, Charge FET OFF ([NR]=1, [NRCHG]=0) 66
Discharge FET OFF, Charge FET OFF ([NR]=0, System not present) 61
ISHUTDOWN Shutdown mode TA = –40°C to 110°C 0.5 1 μA
REG27 POWER ON RESET
VREG27IT– Negative-going voltage input At REG27 2.22 2.35 2.34 V
VREG27IT+ Positive-going voltage input At REG27 2.25 2.5 2.6 V
INTERNAL LDO
VREG Regulator output voltage IREG27 = 10 mA; TA = –40°C to 85°C 2.5 2.7 2.75 V
ΔV(REGTEMP) Regulator output change with temperature IREG = 10 mA; TA = –40°C to 85°C ±0.5%
ΔV(REGLINE) Line regulation IREG = 10 mA ±2 ±4 mV
ΔV(REGLOAD) Load regulation IREG = 0.2 to 10 mA ±20 ±40 mV
I(REGMAX) Current limit 25 50 mA
SRx WAKE FROM SLEEP
VWAKE_ACR Accuracy of VWAKE VWAKE = 1.2 mV 0.2 1.2 2 mV
VWAKE = 2.4 mV 0.4 2.4 3.6
VWAKE = 5 mV 2 5 6.8
VWAKE = 10 mV 5.3 10 13
VWAKE_TCO Temperature drift of VWAKE accuracy 0.5 %/°C
tWAKE Time from application of current and wake of bq3060 0.2 1 ms
COULOMB COUNTER
Input voltage range –0.20 0.25 V
Conversion time Single conversion 250 ms
Effective resolution Single conversion 15 Bits
Integral nonlinearity TA = –25°C to 85°C ±0.007 ±0.034 %FSR
Offset error (1) TA = –25°C to 85°C 10 μV
Offset error drift 0.3 0.5 μV/°C
Full-scale error(2) –0.8% 0.2% 0.8%
Full-scale error drift 150 PPM/°C
Effective input resistance 2.5 MΩ
ADC
Input voltage range –0.2 0.8×VREG27 V
Conversion time 31.5 ms
Resolution (no missing codes) 16 Bits
Effective resolution 14 15 Bits
Integral nonlinearity ±0.020 %FSR
Offset error (3) 70 160 μV
Offset error drift 1 μV/°C
Full-scale error VIN = 1 V –0.8% ±0.2% 0.4%
Full –scale error drift 150 PPM/°C
Effective input resistance 8 MΩ
EXTERNAL CELL BALANCE DRIVE
RBAL_drive Internal pull-down resistance for external cell balance Cell balance ON for VC1, VCi-VCi+1 = 4 V, where i = 1~4 5.7 kΩ
Cell balance ON for VC2, VCi-VCi+1 = 4 V, where = i = 1~4 3.7
Cell balance ON for VC3, VCi-VCi+1 = 4 V, where = i = 1~4 1.75
Cell balance ON for VC4, VCi-VCi+1 = 4 V, where = i = 1~4 0.85
CELL VOLTAGE MONITOR
CELL Voltage Measurement Accuracy(4) TA = –10°C to 60°C ±10 ±20 mV
TA = –40°C to 85°C ±10 ±35
INTERNAL TEMPERATURE SENSOR
T(TEMP) Temperature sensor accuracy ±3% °C
THERMISTOR MEASUREMENT SUPPORT
RERR Internal resistor drift –230 ppm/°C
R Internal resistor TS1, TS2 17 20 kΩ
INTERNAL THERMAL SHUTDOWN(5)
TMAX Maximum REG27 temperature 125 175 °C
TRECOVER Recovery hysteresis temperature 10 °C
HIGH FREQUENCY OSCILLATOR
f(OSC) Operating frequency of CPU clock 2.097 MHz
f(EIO) Frequency error(6) TA = –20°C to 70°C –2% ±0.25% 2%
TA = –40°C to 85°C –3% ±0.25% 3%
t(SXO) Start-up time(7) TA = –25°C to 85°C 3 6 ms
LOW FREQUENCY OSCILLATOR
f(LOSC) Operating frequency 32.768 MHz
f(LEIO) Frequency error(6) TA = –20°C to 70°C –1.5% ±0.25% 1.5%
TA = –40°C to 85°C –2.5% ±0.25% 2.5%
t(LSXO) Start-up time(8) TA = –25°C to 85°C 100 ms
FLASH(9)
Data retention 10 Years
Flash programming write-cycles 20k Cycles
t(ROWPROG) Row programming time 2 ms
t(MASSERASE) Mass-erase time 250 ms
t(PAGEERASE) Page-erase time 25 ms
ICC(PROG) Flash-write supply current 4 6 mA
ICC(ERASE) Flash-erase supply current TA = –40°C to 0°C 8 22 mA
TA = 0°C to 85°C 3 15
RAM BACKUP
I(RBI) RBI data-retention input current VRBI > V(RBI)MIN, VREG27 < VREG27IT-, TA = 70°C to 110°C 20 1500 nA
VRBI > V(RBI)MIN, VREG27 < VREG27IT-, TA = –40°C to 70°C 500
V(RBI) RBI data-retention voltage(9) 1 V
CURRENT PROTECTION THRESHOLDS
V(OCD) OCD detection threshold voltage range, typical RSNS = 0; RSNS is set in STATE_CTL register 50 200 mV
RSNS = 1; RSNS is set in STATE_CTL register 25 100
ΔV(OCDT) OCD detection threshold voltage program step RSNS = 0; RSNS is set in STATE_CTL register 10 mV
RSNS = 1; RSNS is set in STATE_CTL register 5
V(SCCT) SCC detection threshold voltage range, typical RSNS = 0; RSNS is set in STATE_CTL register –100 –300 mV
RSNS = 1; RSNS is set in STATE_CTL register –50 –225
ΔV(SCCT) SCC detection threshold voltage program step RSNS = 0; RSNS is set in STATE_CTL register –50 mV
RSNS = 1; RSNS is set in STATE_CTL register –25
V(SCDT) SCD detection threshold voltage range, typical RSNS = 0; RSNS is set in STATE_CTL register 100 450 mV
RSNS = 1; RSNS is set in STATE_CTL register 50 225
ΔV(SCDT) SCD detection threshold voltage program step RSNS = 0; RSNS is set in STATE_CTL register 50 mV
RSNS = 1; RSNS is set in STATE_CTL register 25
V(OFFSET) SCD, SCC and OCD offset –10 10 mV
V(Scale_Err) SCD, SCC and OCD scale error –10% 10%
CURRENT PROTECTION TIMING
t(OCDD) Overcurrent in discharge delay 1 31 ms
t(OCDD_STEP) OCDD step options 2 ms
t(SCDD) Short circuit in discharge delay AFE.STATE_CNTL[SCDDx2] = 0 0 915 µs
AFE.STATE_CNTL[SCDDx2] = 1 0 1830
t(SCDD_STEP) SCDD step options AFE.STATE_CNTL[SCDDx2] = 0 61 µs
AFE.STATE_CNTL[SCDDx2] = 1 122
t(SCCD) Short circuit in charge delay 0 915 µs
t(SCCD_STEP) SCCD step options 61 µs
t(DETECT) Current fault detect time VSRP-SRN = VTHRESH + 12.5 mV,
TA = –40°C to 85°C		 35 160 µs
tACC Overcurrent and short circuit delay time accuracy Accuracy of typical delay time with WDI active –20% 20%
Accuracy of typical delay time with no WDI input –50% 50%
P-CH FET DRIVE
VO(FETON) Output voltage, charge and discharge FETs on VO(FETONDSG) = V(BAT)–V(DSG), RGS = 1MΩ,
TA = –40°C to 110°C, BAT = 20 V(10) 		12 15 18 V
VO(FETONCHG) = V(PACK)–V(CHG), RGS =1MΩ,
TA = –40°C to 110°C, PACK = 20 V(10) 		12 15 18
VO(FETOFF) Output voltage, charge and discharge FETs off VO(FETOFFDSG) = V(BAT)–V(DSG),
TA = –40°C to 110°C, BAT = 16 V		 0.2 V
VO(FETOFFCHG) = V(PACK)–V(CHG),
TA = –40°C to 110°C, PACK = 16 V		 0.2
tr Rise time CL = 4700 pF; VDSG: 10% to 90% 70 200 µs
CL = 4700 pF; VCHG: 10% to 90% 70 200
tf Fall time CL = 4700 pF; VDSG: 10% to 90% 70 200 µs
CL = 4700 pF; VCHG: 10% to 90% 70 200
PRE-CHARGE/ZVCHG FET DRIVE
V(PreCHGON) VO(PreCHGON) = V(PACK)–V(ZVCHG), pre-charge FET on(11) RGS =1 MΩ, TA = –40°C to 110°C 12 15 18 V
V(PreCHGOFF) Output voltage, pre-charge FET off(11) RGS =1 MΩ, TA = –40°C to 110°C VBAT–0.5 V
tr Rise time CL = 4700 pF, RG = 5.1 kΩ, VZVCHG: 10% to 90% 80 200 µs
tf Fall time CL = 4700 pF, RG = 5.1 kΩ, VZVCHG : 90% to 10% 1.7 ms
SMBus
fSMB SMBus operating frequency Slave mode, SMBC 50% duty cycle 10 100 kHz
fMAS SMBus master clock frequency Master mode, no clock low slave extend 51.2 kHz
tBUF Bus free time between start and stop 4.7 µs
tHD:STA Hold time after (repeated) start 4 µs
tSU:STA Repeated start setup time 4.7 µs
tSU:STO Stop setup time 4 µs
tHD:DAT Data hold time Receive mode 0 ns
Transmit mode 300
tSU:DAT Data setup time 250 ns
tTIMEOUT Error signal/detect See (12) 25 35 ms
tLOW Clock low period 4.7 µs
tHIGH Clock high period See (13) 4 50 µs
tLOW:SEXT Cumulative clock low slave extend time See (14) 10 ms
tLOW:MEXT Cumulative clock low master extend time See (15) 300 ns
tF Clock/data fall time See (16) 300 ns
tR Clock/data rise time See (17) 1000 ns
SMBus XL
fSMBXL SMBus XL operating frequency Slave mode 40 400 kHz
tBUF Bus free time between start and stop 4.7 µs
tHD:STA Hold time after (repeated) start 4 µs
tSU:STA Repeated start setup time 4.7 µs
tSU:STO Stop setup time 4 µs
tTIMEOUT Error signal/detect See (12) 25 35 ms
tLOW Clock low period 1 1 µs
tHIGH Clock high period See (13) 1 2 µs
(1) Post Calibration Performance
(2) Uncalibrated performance. This gain error can be eliminated with external calibration.
(3) Channel to channel offset
(4) This is the performance expected for non-calibrated device.
(5) Parameters assured by design. Not production tested.
(6) The frequency drift is included and measured from the trimmed frequency at VBAT = VPACK = 14.4 V, TA = 25°C
(7) The startup time is defined as the time it takes for the oscillator output frequency to be ±3% when the device is already powered.
(8) The startup time is defined as the time it takes for the oscillator output frequency to be ±3%.
(9) Specified by design. Not production tested
(10) For a VBAT or VPACK input range of 3.8 V to 25 V, MIN VO(FETON) voltage is 12 V or V(BAT)–1 V, whichever is less.
(11) For a VBAT or VPACK input range of 3.8 V to 25 V, MIN V(PreCHGON) voltage is 12 V or V(BAT)–1V, whichever is less.
(12) The bq3060 times out when any clock low exceeds tTIMEOUT
(13) tHIGH, Max, is the minimum bus idle time. SMBC = SMBD = 1 for t > 50 μs causes reset of any transaction involving bq3060 that is in progress. This specification is valid when the NC_SMB control bit remains in the default cleared state (CLK[0]=0). If NC_SMB is set then the timeout is disabled.
(14) tLOW:SEXT is the cumulative time a slave device is allowed to extend the clock cycles in one message from initial start to the stop.
(15) tLOW:MEXT is the cumulative time a master device is allowed to extend the clock cycles in one message from initial start to the stop.
(16) Rise time tR = VILMAX – 0.15) to (VIHMIN + 0.15)
(17) Fall time tF = 0.9VDD to (VILMAX – 0.15)

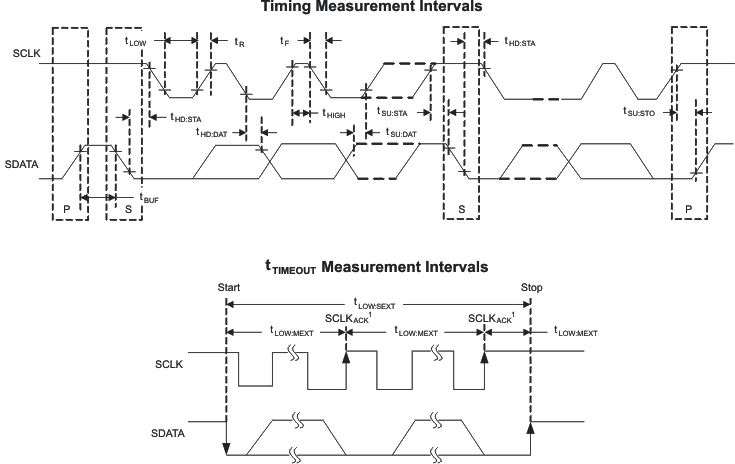

bq3060 smbus_tim_lus928.gif
1. SCLKACK is the acknowledge-related clock pulse generated by the master.
