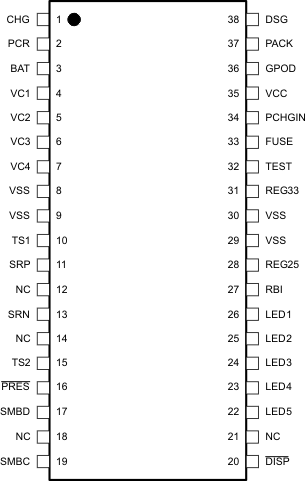

6 Pin Configuration and Functions

bq3050 Pin_Out_bq3050.gif

Pin Functions

PIN NAME PIN NUMBER TYPE(1) DESCRIPTION
CHG 1 O Charge N-FET gate drive
PCR 2 O Internal Precharge FET output
BAT 3 P Alternate power source
VC1 4 I Sense input for positive voltage of top most cell in stack and cell balancing input for top most cell in stack
VC2 5 I Sense input for positive voltage of third lowest cell in stack and cell balancing input for third lowest cell in stack
VC3 6 I Sense input for positive voltage of second lowest cell in stack and cell balancing input for second lowest cell in stack
VC4 7 I Sense input for positive voltage of lowest cell in stack and cell balancing input for lowest cell in stack
VSS 8 P Device ground
VSS 9 P Device ground
TS1 10 AI Temperature sensor 1 thermistor input
SRP 11 AI Differential Coulomb Counter input
NC 12 — Not internally connected. Connect to VSS.
SRN 13 AI Differential Coulomb Counter input
NC 14 — Not internally connected. Connect to VSS.
TS2 15 AI Temperature sensor 2 thermistor input
PRES 16 I Host system present input
SMBD 17 I/OD SMBus v1.1 data line
NC 18 — Not internally connected. Connect to VSS.
SMBC 19 I/OD SMBus v1.1 clock line
DISP 20 I Display active input
NC 21 — Not internally connected. Connect to VSS.
LED5 22 O LED display constant current sink
LED4 23 O LED display constant current sink
LED3 24 O LED display constant current sink
LED2 25 O LED display constant current sink
LED1 26 O LED display constant current sink
RBI 27 P RAM backup
REG25 28 P 2.5-V regulator output
VSS 29 P Device ground
VSS 30 P Device ground
REG33 31 P 3.3-V regulator output
TEST 32 — Test pin, connect to VSS through 10-kΩ resistor
FUSE 33 O Fuse drive
PCHGIN 34 I Internal Precharge FET input
VCC 35 P Power supply voltage
GPOD 36 I/OD High voltage general purpose I/O
PACK 37 P Alternate power source
DSG 38 O Discharge N-FET gate drive
(1) P = Power Connection, O = Digital Output, AI = Analog Input, I = Digital Input, I/OD = Digital Input/Output
