7.14 I2C-Compatible Interface Timing Characteristics

TA = –40°C to 85°C, CREG = 0.47 μF, 2.45 V < VREGIN = VBAT < 5.5 V; typical values at TA = 25°C and VREGIN = VBAT = 3.6 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
tr SCL/SDA rise time 300 ns
tf SCL/SDA fall time 300 ns
tw(H) SCL pulse width (high) 600 ns
tw(L) SCL pulse width (low) 1.3 μs
tsu(STA) Setup for repeated start 600 ns
td(STA) Start to first falling edge of SCL 600 ns
tsu(DAT) Data setup time 1000 ns
th(DAT) Data hold time 0 ns
tsu(STOP) Setup time for stop 600 ns
tBUF Bus free time between stop and start 66 μs
fSCL Clock frequency (1) 400 kHz
(1) If the clock frequency (fSCL) is > 100 kHz, use 1-byte write commands for proper operation. All other transactions types are supported at 400 kHz. (Refer to I2C Interface.)

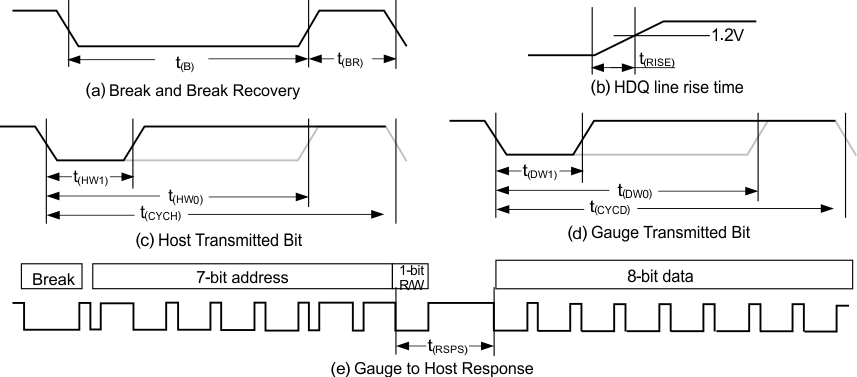

bq27546-G1 tim_dia_lusat0.gifFigure 1. HDQ Timing Diagrams
bq27546-G1 i2c_comp_lus815.gifFigure 2. I2C-Compatible Interface Timing Diagrams
