8.2.2.3 Application Curves

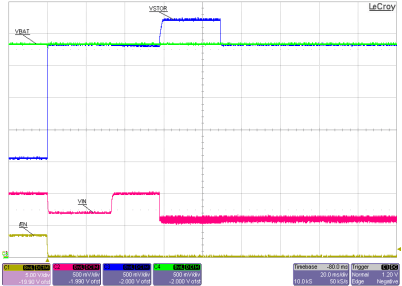

bq25570 bq25570-EN-TOG-VOUT-EN_GND_lusbh2.gif
VIN_DC = 1.0 V power supply 100Ω series resistance
VBAT = 3.4-V charged Li coin cell
Figure 35. Startup by Taking EN Low (From Ship Mode)

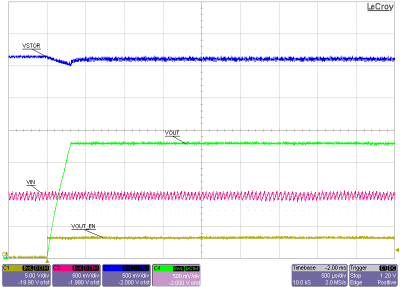

bq25570 bq25570-VOUT-EN-tog-EN_GND-20mA_lusbh2.gif
VIN_DC = 2.0 V power supply 100Ω series resistance
VBAT = 3.1-V charged Li coin cell
Figure 37. Startup by taking VOUT_EN high (from Standby mode)
bq25570 mppt_ov_5p0v_3vstor_2p0vin_42p6ma_slusbj3.png
VIN_DC = sourcemeter with VSOURCE = 2.0 V and compliance of 43 mA
VBAT = sourcemeter with VSOURCE = 3.0 V and compliance
of 1 A
Figure 39. MPPT Operation
bq25570 app2_ov_5p0v_Vbatok_slusbj3.png
VIN_DC floating
No storage element on VBAT or VBAT_PRI
VSTOR artifically ramped from 0 V to 5.0 V to 0 V using a function generator
Figure 41. VBAT_OK Operation
bq25570 bq25570-EN-TOG-VOUT-EN_vstor2_lusbh2.gif
VIN_DC = 1.0 V power supply 100Ω series resistance
VBAT = 3.4-V charged Li coin cell
Figure 36. Startup by taking EN low (from Ship mode), including VOUT
bq25570 app2_operation_ov_5p0v_3vstor_2p0vin_42p6ma_slusbj3.png
VIN_DC = sourcemeter with VSOURCE = 2.0 V and compliance of 43 mA
VBAT = sourcemeter with VSOURCE = 3.0 V and compliance of 1 A
Figure 38. Boost Charger Operational Waveforms
bq25570 app2_ov_5v_VRDIV1_slusbj3.png
VIN_DC = sourcemeter with VSOURCE = 2.0 V and compliance of 43 mA
VBAT = sourcemeter with VSOURCE = 4.0 V and compliance
of 1 A
Figure 40. VRDIV Waveform
