10.2.3 Application Curves

VIN = 5 VVBAT = 0 V

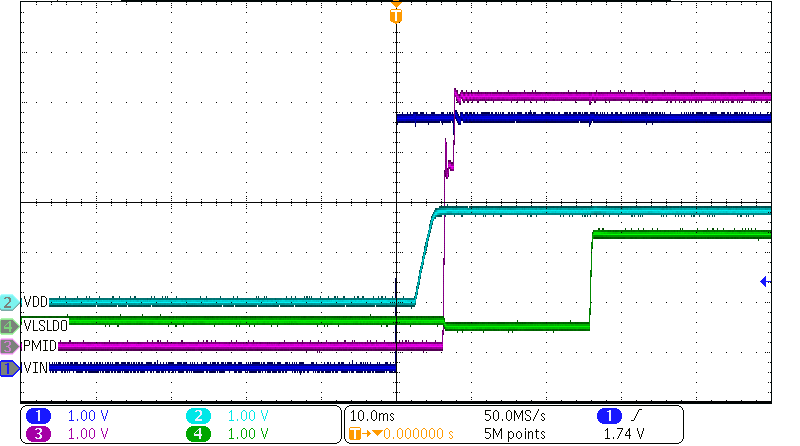

Figure 10-2 Power Up From IN Supply Insertion with No Battery
VIN = 0 VVBAT = 3.6 V

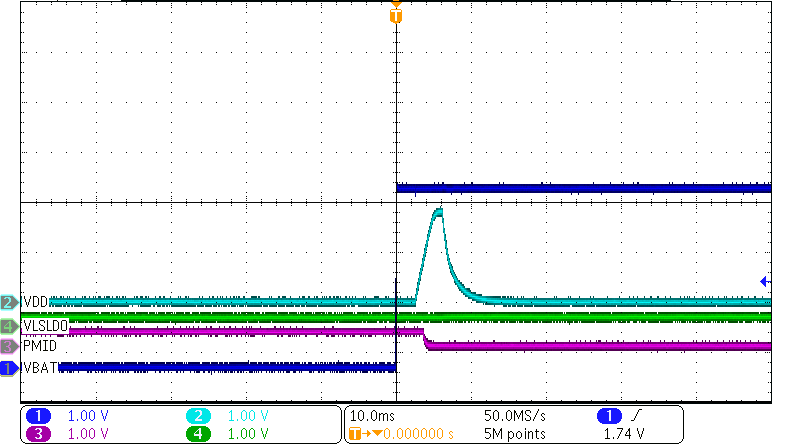

Figure 10-4 Wake In To Ship Mode on Battery Insertion with No IN Supply
VIN = 0 VVBAT = 3.6 V

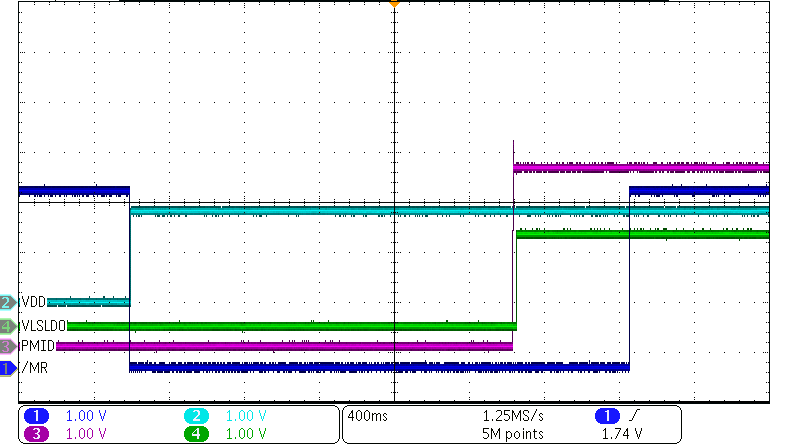

Figure 10-6 HW Reset on MR Long Button Press
VIN = 0 VVBAT = 3.6 V
Figure 10-8 HW Reset Through I2C Command
VIN = 5 VVBAT = 3.6 V

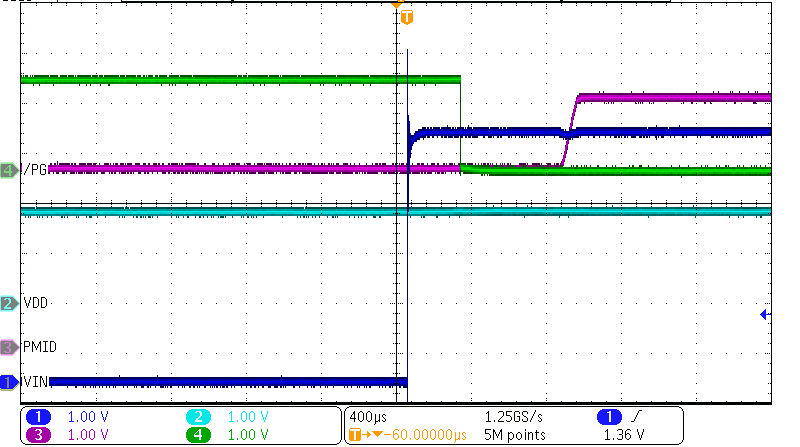

Figure 10-10 PG Power Good Function - IN Supply Insertion
VIN = 5 VVBAT = 3.6 V
Figure 10-12 PGMR Level Shift Function - MR Rising
VBAT = 3.6 V
Figure 10-14 PG General Purpose Output Function - GPO_PG Bit Toggle
VBAT = 3.6 VNo load

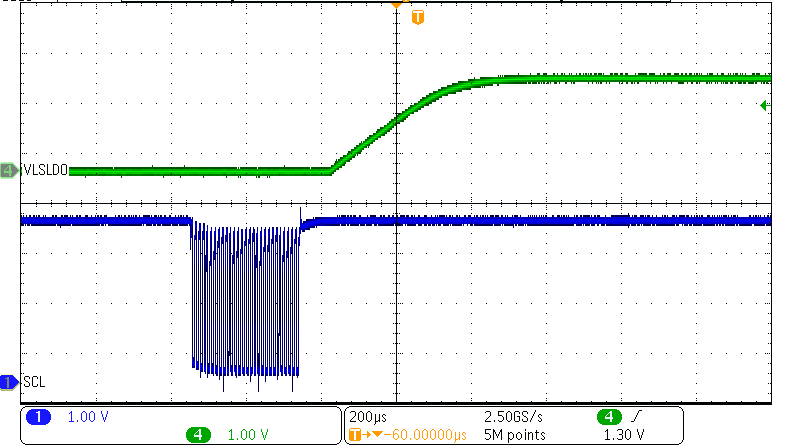

Figure 10-16 LDO Disable Through I2C (EN_LS_LDO)
VIN = 0 VVBAT = 2.4 VVINLS = VPMID

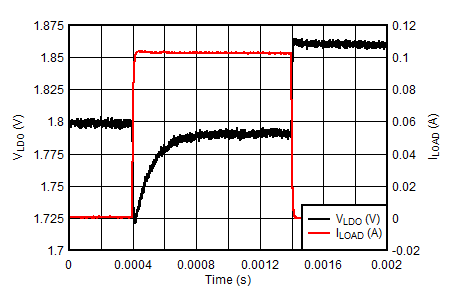

Figure 10-18 LDO Load Transient - VLDO = 1.8 V
VIN = 0 VVBAT = 3.6 VVINLS = VPMID
Figure 10-20 LDO Load Transient - VLDO = 1.2 V
VIN = 5 VVBAT = 3.6 V

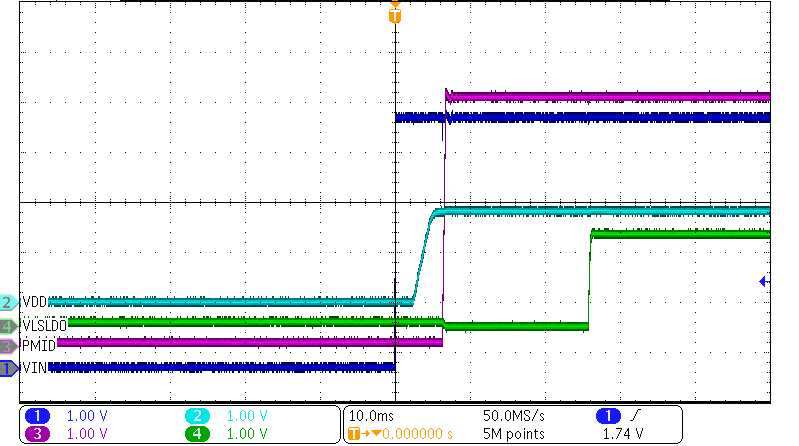

Figure 10-3 Power Up From Ship Mode with IN Supply Insertion
VIN = 0 VVBAT = 3.6 V
Figure 10-5 Power Up From Ship Mode with MR Press
VIN = 0 VVBAT = 3.6 VLBPRESS_ACTION = 01
Figure 10-7 Ship Mode Entry with MR Long Button Press
VIN = 5 VVBAT = 3.6 VSHIPMODE_EN = 1
Figure 10-9 Ship Mode Entry on IN Supply Removal
VIN = 5 VVBAT = 3.6 V
Figure 10-11 PG Power Good Function - IN Supply Removal
VBAT = 3.6 V

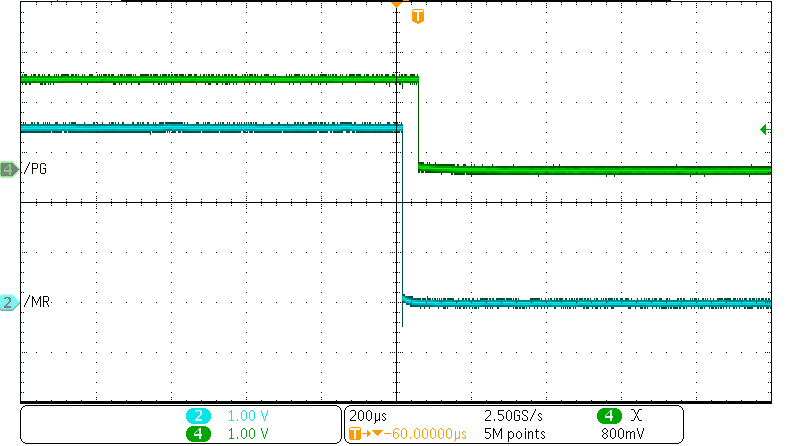

Figure 10-13 PGMR Level Shift Function - MR Falling
VBAT = 3.6 VNo load
Figure 10-15 LDO Enable Through I2C (EN_LS_LDO)
VIN = 0 VVBAT = 3.6 VVINLS = VPMID
Figure 10-17 LDO Load Transient - VLDO = 1.8 V
VIN = 0 VVBAT = 3.8 VVINLS = VPMID
Figure 10-19 LDO Load Transient - VLDO = 3.3 V

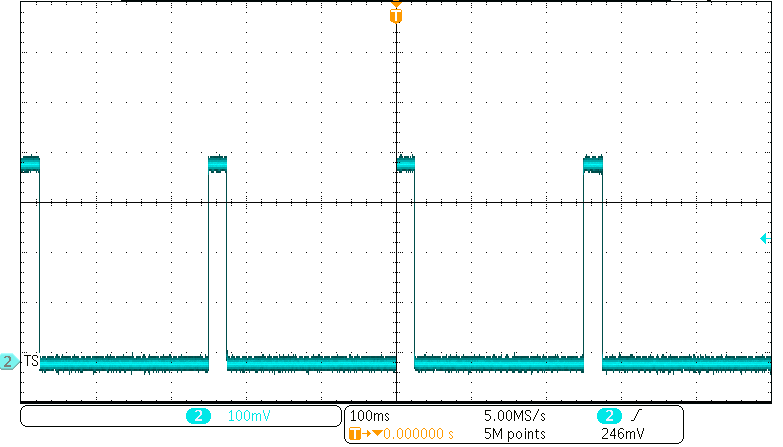

VIN = 5V
Figure 10-21 TS Biasing and Voltage Behavior when VIN is Present
