10.2.3 Application Curves

Continuous battery detection when not in TTDM.

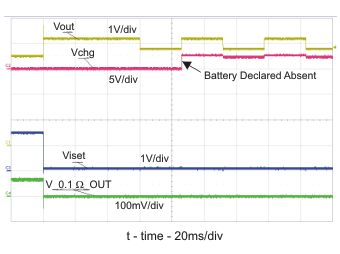

Figure 10-2 Battery Removal with Fixed TS = 0.5 V
CH4: Iout (1 A/Div)
Figure 10-4 ISET Shorted During Normal Operation
CH4: Iout (1 A/Div)
Battery voltage swept from 0 V to 4.25 V to 3.9 V.

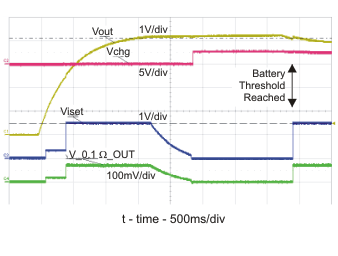

Figure 10-3 Battery Charge Profile
CH4: Iout (0.2 A/Div)

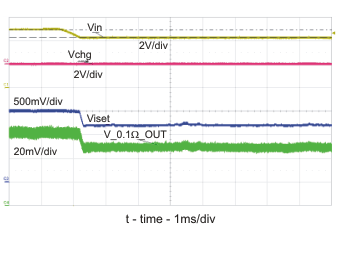

Figure 10-5 DPM – Adaptor Current Limits – Vin Regulated
