6.6 Typical Characteristics

at VDD = 3.3 V, AINP = –1 V to 1 V, AINN = GND, fCLKIN = 20 MHz, MCE = 0, and sinc3 filter with OSR = 256 (unless otherwise noted)
AMC1035-Q1 D001_SBAS837.gif
VDD = 5.5 V
Figure 3. Input Bias Current vs
Common-Mode Input Voltage
AMC1035-Q1 D031_SBAS837.gif
Figure 5. Integral Nonlinearity vs Input Voltage
AMC1035-Q1 D004_SBAS837.gif
Figure 7. Offset Error vs Supply Voltage
AMC1035-Q1 D006_SBAS837.gif
Figure 9. Offset Error vs Clock Frequency
AMC1035-Q1 D008_SBAS837.gif
Figure 11. Gain Error vs Temperature
AMC1035-Q1 D010_SBAS837.gif
Figure 13. Gain Error vs Clock Frequency
AMC1035-Q1 D012_SBAS837.gif
Figure 15. Signal-to-Noise Ratio and
Signal-to-Noise + Distortion vs Supply Voltage
AMC1035-Q1 D014_SBAS837.gif
Figure 17. Signal-to-Noise Ratio and
Signal-to-Noise + Distortion vs Clock Frequency
AMC1035-Q1 D016_SBAS837.gif
Figure 19. Signal-to-Noise Ratio and
Signal-to-Noise + Distortion vs Input Signal Voltage
AMC1035-Q1 D018_SBAS837.gif

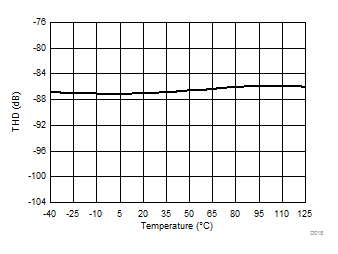

Figure 21. Total Harmonic Distortion vs Temperature
AMC1035-Q1 D020_SBAS837.gif
Figure 23. Total Harmonic Distortion vs
Input Signal Frequency
AMC1035-Q1 D022_SBAS837.gif
Figure 25. Spurious-Free Dynamic Range vs
Supply Voltage
AMC1035-Q1 D024_SBAS837.gif

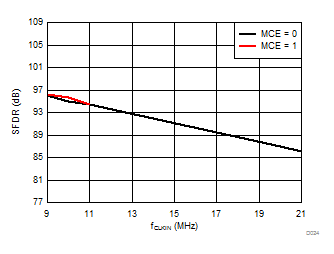

Figure 27. Spurious-Free Dynamic Range vs
Clock Frequency
AMC1035-Q1 D026_SBAS837.gif
Figure 29. Spurious-Free Dynamic Range vs
Input Signal Voltage
AMC1035-Q1 D028_SBAS837.gif
4096-point FFT, VIN = 2 VPP
Figure 31. Frequency Spectrum With 5-kHz Input Signal
AMC1035-Q1 D030_SBAS837.gif
Figure 33. Reference Output Voltage vs Temperature
AMC1035-Q1 D033_SBAS837.gif
Figure 35. Supply Current vs Temperature
AMC1035-Q1 D002_SBAS837.gif
Figure 4. Common-Mode Rejection Ratio vs
Input Signal Frequency
AMC1035-Q1 D003_SBAS837.gif
Figure 6. Integral Nonlinearity vs Temperature
AMC1035-Q1 D005_SBAS837.gif
Figure 8. Offset Error vs Temperature
AMC1035-Q1 D007_SBAS837.gif
Figure 10. Gain Error vs Supply Voltage
AMC1035-Q1 D009_SBAS837.gif
Figure 12. Ratiometric Gain Error vs Temperature
AMC1035-Q1 D011_SBAS837.gif
Figure 14. Power-Supply Rejection Ratio vs
Ripple Frequency
AMC1035-Q1 D013_SBAS837.gif
Figure 16. Signal-to-Noise Ratio and
Signal-to-Noise + Distortion vs Temperature
AMC1035-Q1 D015_SBAS837.gif
Figure 18. Signal-to-Noise Ratio and
Signal-to-Noise + Distortion vs Input Signal Frequency
AMC1035-Q1 D017_SBAS837.gif
Figure 20. Total Harmonic Distortion vs Supply Voltage
AMC1035-Q1 D019_SBAS837.gif
Figure 22. Total Harmonic Distortion vs Clock Frequency
AMC1035-Q1 D021_SBAS837.gif
Figure 24. Total Harmonic Distortion vs
Input Signal Voltage
AMC1035-Q1 D023_SBAS837.gif
Figure 26. Spurious-Free Dynamic Range vs
Temperature
AMC1035-Q1 D025_SBAS837.gif
Figure 28. Spurious-Free Dynamic Range vs
Input Signal Frequency
AMC1035-Q1 D027_SBAS837.gif
4096-point FFT, VIN = 2 VPP
Figure 30. Frequency Spectrum With 1-kHz Input Signal
AMC1035-Q1 D029_SBAS837.gif
Figure 32. Reference Output Voltage vs Supply Voltage
AMC1035-Q1 D032_SBAS837.gif
Figure 34. Supply Current vs Supply Voltage
AMC1035-Q1 D034_SBAS837.gif
Figure 36. Supply Current vs Clock Frequency
