7.6.2.1.4 Clock Re-Timer (CRT) Protocols (CRT-S-SDR, CRT-D-SDR, CRT-Q-SDR, CRT-S-DDR, CRT-D-DDR, CRT-Q-DDR)

In clock re-timer (CRT) protocols, the device sends out data on the SDO lines with a synchronized clock on the STROBE line. The data are synchronized to the rising edges of the STROBE pulses. For CRT protocols with a single data rate, the host can capture data on the falling edges of the STROBE pulses. For double data rate, the host must capture data on both edges of STROBE. The clock source for the STROBE output can be selected as an external clock (SCLK) or an internal clock by configuring the CRT_CLK_SELECT bits in the CRT_CFG register. For reading data from the device, SCLK is only required when the STROBE output is selected as an external clock. The SDOs that are not enabled by the BUS_WIDTH register are set to tri-state. Table 6 provides the details of different CRT protocols to read data from the device.

Table 6. CRT-S-SDR, CRT-D-SDR, CRT-Q-SDR, CRT-S-DDR, CRT-D-DDR, and CRT-Q-DDR Protocols for Reading From Device

PROTOCOL(1) SCLK POLARITY(2) CAPTURE EDGE MSB LAUNCH EDGE BUS WIDTH(4) tREAD(3) TIMING DIAGRAM
CRT-S-SDR Low (CPOL = 0) STROBE falling 1st STROBE rising 1 [15.5 × tSTROBE + m] Figure 56
CRT-D-SDR Low (CPOL = 0) STROBE falling 1st STROBE rising 2 [7.5 × tSTROBE + m] Figure 58
CRT-Q-SDR Low (CPOL = 0) STROBE falling 1st STROBE rising 4 [3.5 × tSTROBE + m] Figure 60
CRT-S-DDR Low (CPOL = 0) STROBE rising and falling 1st STROBE rising 1 [7.5 × tSTROBE + m] Figure 57
CRT-D-DDR Low (CPOL = 0) STROBE rising and falling 1st STROBE rising 2 [3.5× tSTROBE + m] Figure 59
CRT-Q-DDR Low (CPOL = 0) STROBE rising and falling 1st STROBE rising 4 [1.5 × tSTROBE + m] Figure 61
(1) For CRT protocols with SDR, set the SDO_PROTOCOL bits in the PROTOCOL_CFG register to 010b. For CRT protocols with DDR, set the SDO_PROTOCOL bits to 011b in the PROTOCOL_CFG register.
(2) The device only supports CPOL = 0 for CRT protocols with an external clock.
(3) tREAD is the read time for reading the 16-bit output data word. For an external clock m = (tSU_CSCK + tHT_CKCS), and for an internal clock m = tD_CS_STROBE.
(4) For configuring the bus width, configure the BUS_WIDTH register.

Figure 56 through Figure 61 illustrate timing diagrams for the CRT-S-SDR, CRT-S-DDR, CRT-D-SDR, CRT-D-DDR, CRT-Q-SDR, and CRT-Q-DDR protocols, respectively.

ADS9224R ADS9234R SRC-00-S-SDR-SBAS876.gifFigure 56. CRT-S-SDR Protocol
ADS9224R ADS9234R SRC-00-S-DDR-SBAS876.gifFigure 57. CRT-S-DDR Protocol

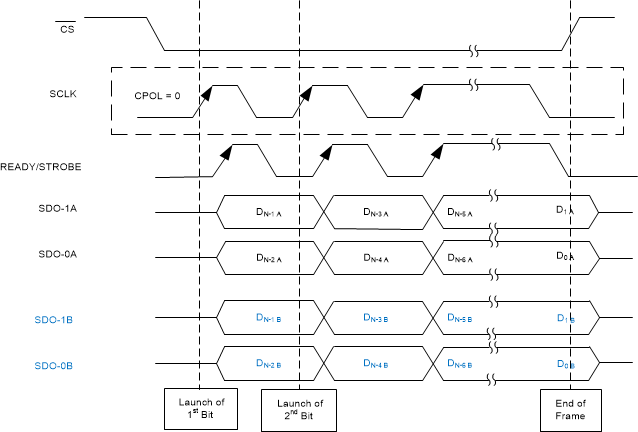

ADS9224R ADS9234R SRC-00-D-SDR-SBAS876.gifFigure 58. CRT-D-SDR Protocol

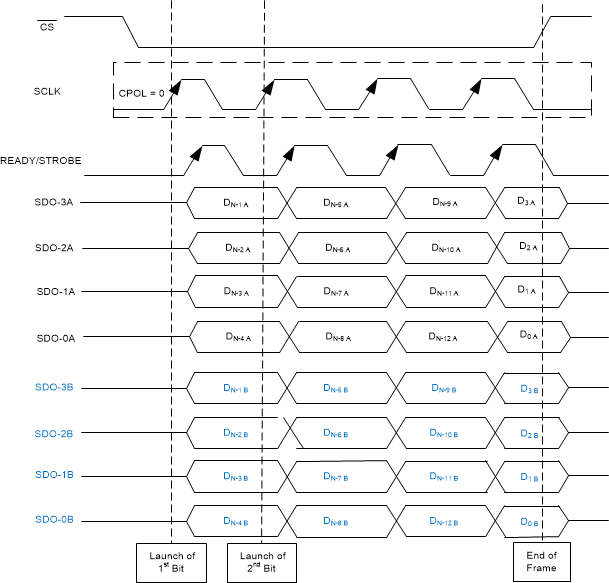

ADS9224R ADS9234R SRC-00-Q-SDR-SBAS876.gifFigure 60. CRT-Q-SDR Protocol

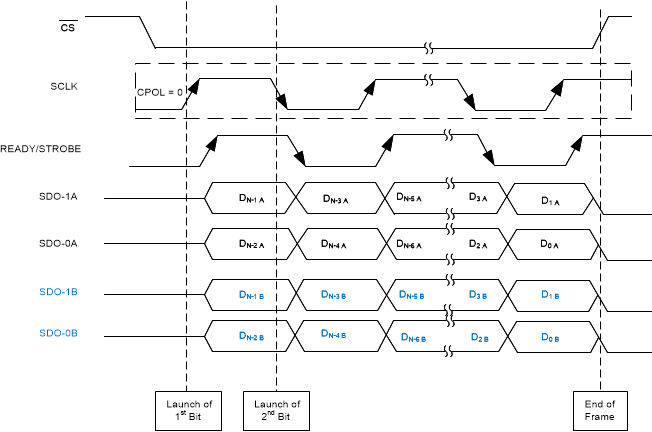

ADS9224R ADS9234R SRC-00-D-DDR-SBAS876.gifFigure 59. CRT-D-DDR Protocol

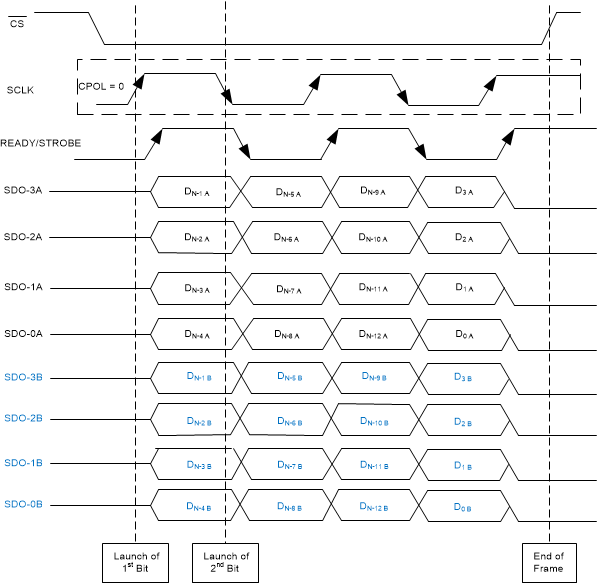

ADS9224R ADS9234R SRC-00-Q-DDR-SBAS876.gifFigure 61. CRT-Q-DDR Protocol

For reading data, SCLK is only required when the STROBE output is selected as SCLK (external clock) in the CRT_CFG register. However, for configuring registers, SCLK is always required.
