6.8 Typical Characteristics

at TA = 25°C, RVDD = 5.5 V, DVDD = 3 V, VREF = 5 V, and maximum-rated throughput (unless otherwise noted)
ADS8920B ADS8922B ADS8924B D001_SBAS729.gif
Typical DNL = ±0.2 LSB
Figure 6. Typical DNL
ADS8920B ADS8922B ADS8924B D007_SBAS729.gif
1000 devices
Figure 8. Typical DNL Distribution
ADS8920B ADS8922B ADS8924B D003_SBAS729.gif
Figure 10. DNL vs Temperature
ADS8920B ADS8922B ADS8924B D005_SBAS729.gif
Figure 12. DNL vs Reference Voltage
ADS8920B ADS8922B ADS8924B D019_SBAS729.gif
4000 devices
Figure 14. Typical Offset Distribution
ADS8920B ADS8922B ADS8924B D020_SBAS729.gif
REF_SEL[2:0] = 000b
Figure 16. Offset vs Temperature
ADS8920B ADS8922B ADS8924B D023_SBAS729.gif
EN_MARG = 0b
Figure 18. Gain Error vs Temperature
ADS8920B ADS8922B ADS8924B D009_SBAS729.gif
Standard Deviation = 0.47 LSB
Figure 20. DC Input Histogram
ADS8920B ADS8922B ADS8924B D029_SBAS729.gif
fIN = 2 kHz SNR = 96.8 dB THD = –125 dB
Figure 22. Typical FFT - ADS8922B
ADS8920B ADS8922B ADS8924B D013_SBAS729.gif
fIN = 2 kHz
Figure 24. Noise Performance vs Temperature
ADS8920B ADS8922B ADS8924B D015_SBAS729.gif
fIN = 2 kHz
Figure 26. Noise Performance vs Reference Voltage
ADS8920B ADS8922B ADS8924B D017_SBAS729.gif
Figure 28. Noise Performance vs Input Frequency
ADS8920B ADS8922B ADS8924B D026_SBAS729.gif
Figure 30. Analog Supply Current vs Supply Voltage
ADS8920B ADS8922B ADS8924B D002_SBAS729.gif
Typical INL = ±0.3 LSB
Figure 7. Typical INL
ADS8920B ADS8922B ADS8924B D008_SBAS729.gif
1000 devices
Figure 9. Typical INL Distribution
ADS8920B ADS8922B ADS8924B D004_SBAS729.gif
Figure 11. INL vs Temperature
ADS8920B ADS8922B ADS8924B D006_SBAS729.gif
Figure 13. INL vs Reference Voltage
ADS8920B ADS8922B ADS8924B D022_SBAS729.gif
4000 devices
Figure 15. Typical Gain Error Distribution
ADS8920B ADS8922B ADS8924B D021_SBAS729.gif
With appropriate REF_SEL[2:0], see OFST_CAL
Figure 17. Offset vs Reference Voltage
ADS8920B ADS8922B ADS8924B D024_SBAS729.gif
EN_MARG = 0b
Figure 19. Gain Error vs Reference Voltage
ADS8920B ADS8922B ADS8924B D011_SBAS729.gif
fIN = 2 kHz SNR = 96.8 dB THD = –125 dB
Figure 21. Typical FFT - ADS8920B
ADS8920B ADS8922B ADS8924B D030_SBAS729.gif
fIN = 2 kHz SNR = 96.8 dB THD = –125 dB
Figure 23. Typical FFT - ADS8924B
ADS8920B ADS8922B ADS8924B D014_SBAS729.gif
fIN = 2 kHz
Figure 25. Distortion Performance vs Temperature
ADS8920B ADS8922B ADS8924B D016_SBAS729.gif
fIN = 2 kHz
Figure 27. Distortion Performance vs Reference Voltage

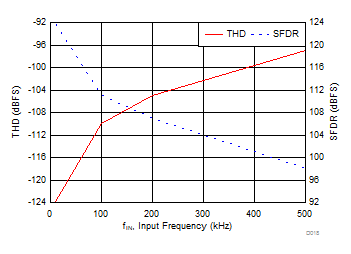

ADS8920B ADS8922B ADS8924B D018_SBAS729.gif
Figure 29. Distortion Performance vs Input Frequency
ADS8920B ADS8922B ADS8924B D028_SBAS729.gif
RVDD = 5 V
Figure 31. Analog Supply Current vs Temperature
