8.2.5 Application Curves

ADS8920B ADS8922B ADS8924B D031_SBAS729.gif
±0.15-LSB INL
Figure 112. Typical Linearity, Differential Input
ADS8920B ADS8922B ADS8924B D033_SBAS729.gif
SNR = 96.1 dB, THD = –131.7 dB
Figure 114. Noise-Performance FFT Plot: ADS8920B, Differential Input
ADS8920B ADS8922B ADS8924B D035_SBAS729.gif
SNR = 96.2 dB, THD = –132 dB
Figure 116. Noise-Performance FFT Plot: ADS8922B, Differential Input

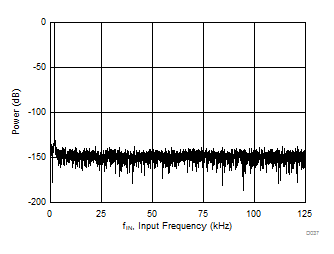

ADS8920B ADS8922B ADS8924B D037_SBAS729.gif
SNR = 96.1 dB, THD = –131.5 dB
Figure 118. Noise-Performance FFT Plot: ADS8924B, Differential Input

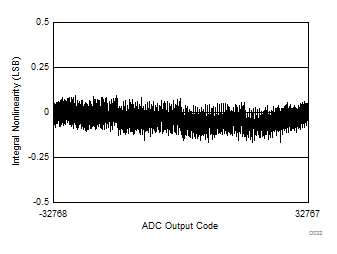

ADS8920B ADS8922B ADS8924B D032_SBAS729.gif
±0.15-LSB INL
Figure 113. Typical Linearity, Single-Ended Input

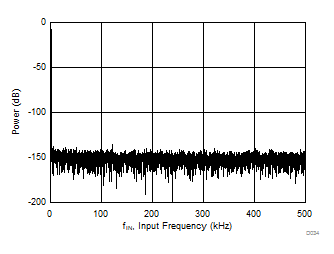

ADS8920B ADS8922B ADS8924B D034_SBAS729.gif
SNR = 95.9 dB, THD = –125.9 dB
Figure 115. Noise-Performance FFT Plot: ADS8920B, Single-Ended Input
ADS8920B ADS8922B ADS8924B D036_SBAS729.gif
SNR = 96 dB, THD = –126 dB
Figure 117. Noise-Performance FFT Plot: ADS8922B, Single-Ended Input

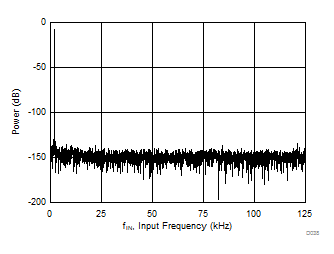

ADS8920B ADS8922B ADS8924B D038_SBAS729.gif
SNR = 95.9 dB, THD = –125.6 dB
Figure 119. Noise-Performance FFT Plot: ADS8924B, Single-Ended Input
