Typical Characteristics

at TA = 25°C, AVDD = 3 V, DVDD = 3 V, VREF = 5 V, and fSAMPLE = 400 kSPS (unless otherwise noted)
ADS8864 C001_SBAS572.png
Figure 4. Typical INL (VREF = 2.5 V)
ADS8864 C003_SBAS572.png

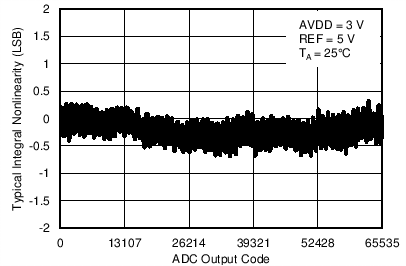

Figure 6. Typical INL (VREF = 5 V)
ADS8864 C005_SBAS572.png
Figure 8. INL vs Temperature
ADS8864 C007_SBAS572.png
Figure 10. INL vs Reference Voltage
ADS8864 C009_SBAS572.png
Figure 12. DC Input Histogram (VREF = 2.5 V)
ADS8864 C011_SBAS572.png
Figure 14. Typical FFT (VREF = 2.5 V)
ADS8864 C013_SBAS572.png

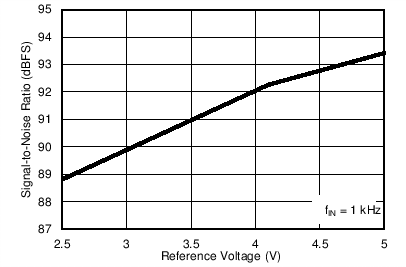

Figure 16. SNR vs Reference Voltage
ADS8864 C015_SBAS572.png
Figure 18. ENOB vs Reference Voltage
ADS8864 C017_SBAS572.png
Figure 20. SFDR vs Reference Voltage
ADS8864 C019_SBAS572.png

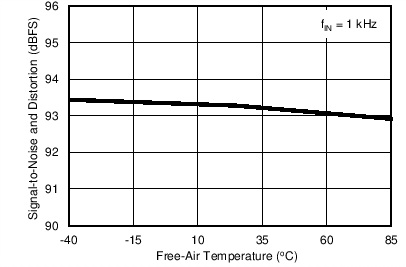

Figure 22. SINAD vs Temperature
ADS8864 C021_SBAS572.png
Figure 24. THD vs Temperature
ADS8864 C023_SBAS572.png
Figure 26. SNR vs Input Frequency
ADS8864 C025_SBAS572.png
Figure 28. ENOB vs Input Frequency
ADS8864 C027_SBAS572.png
Figure 30. SFDR vs Input Frequency
ADS8864 C029_SBAS572.png
Figure 32. Power Consumption vs Temperature
ADS8864 C031_SBAS572.png
Figure 34. Power Consumption vs Throughput
ADS8864 C033_SBAS572.png

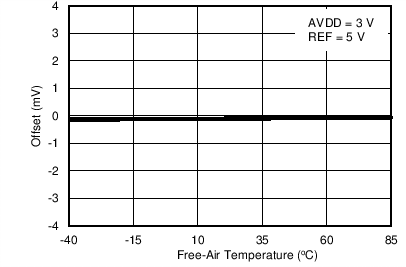

Figure 36. Offset vs Temperature
ADS8864 C007_SBAS569.png
Figure 38. Typical Distribution of Gain Error
ADS8864 C009_SBAS569.png
Figure 40. Typical Distribution of Differential Nonlinearity (Minimum and Maximum)
ADS8864 C002_SBAS572.png
Figure 5. Typical DNL (VREF = 2.5 V)
ADS8864 C004_SBAS572.png
Figure 7. Typical DNL (VREF = 5 V)
ADS8864 C006_SBAS572.png
Figure 9. DNL vs Temperature
ADS8864 C008_SBAS572.png
Figure 11. DNL vs Reference Voltage
ADS8864 C010_SBAS572.png

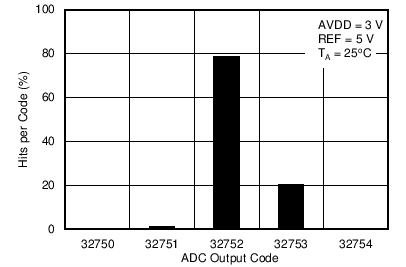

Figure 13. DC Input Histogram (VREF = 5 V)
ADS8864 C012_SBAS572.png

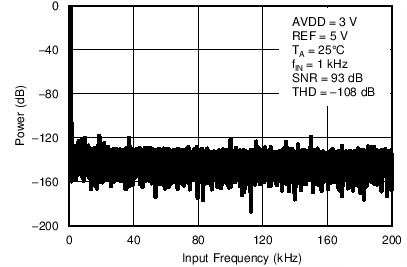

Figure 15. Typical FFT (VREF = 5 V)
ADS8864 C014_SBAS572.png
Figure 17. SINAD vs Reference Voltage
ADS8864 C016_SBAS572.png
Figure 19. THD vs Reference Voltage
ADS8864 C018_SBAS572.png
Figure 21. SNR vs Temperature
ADS8864 C020_SBAS572.png
Figure 23. ENOB vs Temperature
ADS8864 C022_SBAS572.png
Figure 25. SFDR vs Temperature
ADS8864 C024_SBAS572.png
Figure 27. SINAD vs Input Frequency
ADS8864 C026_SBAS572.png
Figure 29. THD vs Input Frequency
ADS8864 C028_SBAS572.png
Figure 31. Supply Current vs Temperature
ADS8864 C030_SBAS572.png
Figure 33. Supply Current vs Throughput
ADS8864 C032_SBAS547.png
Figure 35. Power-Down Current vs Temperature
ADS8864 C034_SBAS572.png
Figure 37. Gain Error vs Temperature
ADS8864 C008_SBAS569.png
Figure 39. Typical Distribution of Offset Error
ADS8864 C010_SBAS569.png

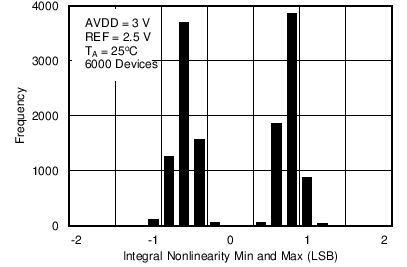

Figure 41. Typical Distribution of Integral
Nonlinearity (Minimum and Maximum)
