6 Specifications

6.1 Absolute Maximum Ratings(1)

MIN MAX UNIT
AVDD to GND –0.3 3.9 V
DVDD to GND –0.3 3.9 V
AINP to GND –0.3 AVDD + 0.3 V
AINM to GND –0.3 0.3 V
Digital input voltage to GND –0.3 DVDD + 0.3 V
Storage temperature, Tstg –60 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101(2) ±1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
AVDD Analog supply voltage range 1.65 3.6 V
DVDD Digital supply voltage range 1.65 3.6 V
TA Operating free-air temperature –40 125 °C

6.4 Thermal Information

THERMAL METRIC(1) ADS7040 UNIT
RUG (X2QFN) DCU (VSSOP)
8 PINS 8 PINS
RθJA Junction-to-ambient thermal resistance 177.5 235.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 51.5 79.8 °C/W
RθJB Junction-to-board thermal resistance 76.7 117.6 °C/W
ψJT Junction-to-top characterization parameter 1.0 8.9 °C/W
ψJB Junction-to-board characterization parameter 76.7 116.5 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A N/A °C/W
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

At TA = –40°C to 125°C, AVDD = 1.65 V to 3.6 V, DVDD = 1.65 V to 3.6 V, fSAMPLE = 1 MSPS, and VAINM = 0 V, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ANALOG INPUT
Full-scale input voltage span(1) 0 AVDD V
Absolute input voltage range AINP to GND –0.1 AVDD + 0.1 V
AINM to GND –0.1 0.1
CS Sampling capacitance 15 pF
SYSTEM PERFORMANCE
Resolution 8 Bits
NMC No missing codes 8 Bits
INL Integral nonlinearity AVDD = 1.8 V to 3.6 V –0.5 ±0.25 0.5 LSB(2)
DNL Differential nonlinearity AVDD = 1.8 V to 3.6 V –0.4 ±0.2 0.4 LSB
EO Offset error ±0.5 LSB
dVOS/dT Offset error drift with temperature ±25 ppm/°C
EG Gain error ±0.2 %FS
Gain error drift with temperature ±25 ppm/°C
SAMPLING DYNAMICS
tACQ Acquisition time 275 ns
Maximum throughput rate 12-MHz SCLK, AVDD = 1.65 V to 3.6 V 1 MHz
DYNAMIC CHARACTERISTICS
SNR Signal-to-noise ratio(4) fIN = 2 kHz, AVDD = 3 V 48.5 49 dB
fIN = 2 kHz, AVDD = 1.8 V 49
THD Total harmonic distortion(4)(3) fIN = 2 kHz, AVDD = 3 V –70 dB
SINAD Signal-to-noise and distortion(4) fIN = 2 kHz, AVDD = 3 V 48.5 49 dB
fIN = 2 kHz, AVDD = 1.8 V 49
SFDR Spurious-free dynamic range(4) fIN = 2 kHz, AVDD = 3 V 75 dB
BW(fp) Full-power bandwidth At –3 dB, AVDD = 3 V 25 MHz
DIGITAL INPUT/OUTPUT (CMOS Logic Family)
VIH High-level input voltage(5) 0.65 DVDD DVDD + 0.3 V
VIL Low-level input voltage(5) –0.3 0.35 DVDD V
VOH High-level output voltage(5) At Isource = 500 µA 0.8 DVDD DVDD V
At Isource = 2 mA DVDD – 0.45 DVDD
VOL Low-level output voltage(5) At Isink = 500 µA 0 0.2 DVDD V
At Isink = 2 mA 0 0.45
POWER-SUPPLY REQUIREMENTS
AVDD Analog supply voltage 1.65 3 3.6 V
DVDD Digital I/O supply voltage 1.65 3 3.6 V
IAVDD Analog supply current At 1 MSPS with AVDD = 3 V 185 µA
At 100 kSPS with AVDD = 3 V 23
At 1 MSPS with AVDD = 1.8 V 95
PD Power dissipation At 1 MSPS with AVDD = 3 V 555 µW
At 100 kSPS with AVDD = 3 V 56
At 1 MSPS with AVDD = 1.8 V 171
(1) Ideal input span; does not include gain or offset error.
(2) LSB means least significant bit.
(3) Calculated on the first nine harmonics of the input frequency.
(4) All specifications expressed in decibels (dB) refer to the full-scale input (FSR) and are tested with an input signal 0.5 dB below full-scale, unless otherwise specified.
(5) Digital voltage levels comply with the JESD8-7A standard for DVDD from 1.65 V to 1.95 V. See the Digital Voltage Levels section for more details.

6.6 Timing Characteristics

All specifications are at TA = –40°C to 125°C, AVDD = 1.65 V to 3.6 V, DVDD = 1.65 V to 3.6 V, and CLOAD on SDO = 20 pF, unless otherwise specified.
MIN TYP MAX UNIT
TIMING SPECIFICATIONS
fTHROUGHPUT Throughput 1 MSPS
tCYCLE Cycle time 1 µs
tCONV Conversion time 8.5 × tSCLK + tSU_CSCK ns
tDV_CSDO Delay time: CS falling to data enable 10 ns
tD_CKDO Delay time: SCLK falling to (next) data valid on DOUT, AVDD = 1.8 V to 3.6 V 30 ns
Delay time: SCLK falling to (next) data valid on DOUT, AVDD = 1.65 V to 1.8 V 50 ns
tDZ_CSDO Delay time: CS rising to DOUT going to 3-state 5 ns
TIMING REQUIREMENTS
tACQ Acquisition time 275 ns
fSCLK SCLK frequency 0.016 12 MHz
tSCLK SCLK period 83.33 ns
tPH_CK SCLK high time 0.45 0.55 tSCLK
tPL_CK SCLK low time 0.45 0.55 tSCLK
tPH_CS CS high time 60 ns
tSU_CSCK Setup time: CS falling to SCLK falling 15 ns
tD_CKCS Delay time: last SCLK falling to CS rising 10 ns

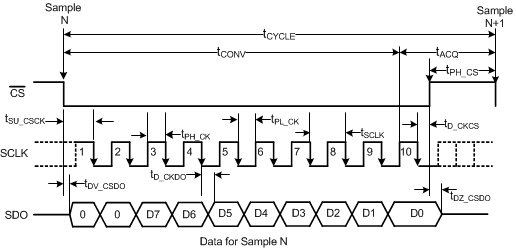

ADS7040 tim_spi_sbas676_B.gif Figure 1. Timing Diagram

6.7 Typical Characteristics

At TA = 25°C, AVDD = 3 V, DVDD = 1.8 V, and fSAMPLE = 1 MSPS, unless otherwise noted.
ADS7040 C001_SBAS676.png
SNR = 49.85 dB THD = –68.69 dB fIN = 2 kHz
Number of samples = 16384
Figure 2. Typical FFT
ADS7040 C003_SBAS676.png
fIN = 2 kHz
Figure 4. SNR and SINAD vs Free-Air Temperature
ADS7040 C005_SBAS676.png
Figure 6. SNR and SINAD vs Reference Voltage (AVDD)
ADS7040 C008_SBAS676.png
Figure 8. THD vs Input Frequency
ADS7040 C007_SBAS676.png
Figure 10. SFDR vs Free-Air Temperature
ADS7040 C011_SBAS676.png
Figure 12. SFDR vs Reference Voltage
ADS7040 C013_SBAS676.png
Figure 14. Offset vs Free-Air Temperature
ADS7040 C015_SBAS676.png
Figure 16. Gain Error vs Free-Air Temperature
ADS7040 C017_SBAS676.png
AVDD = 3 V
Figure 18. Typical DNL
ADS7040 C019_SBAS676.png
AVDD = 1.8 V
Figure 20. Typical INL
ADS7040 C021_SBAS676.png
Figure 22. DNL vs Free-Air Temperature
ADS7040 C023_SBAS676.png
Figure 24. INL vs Free-Air Temperature
ADS7040 C025_SBAS676.png
Figure 26. AVDD Supply Current vs Free-Air Temperature
ADS7040 C027_SBAS676.png
AVDD = 1.8 V
Figure 28. AVDD Supply Current vs Throughput
ADS7040 C029_SBAS676.png
Figure 30. AVDD Static Current vs Free-Air Temperature
ADS7040 C002_SBAS676.png
SNR = 49.34 dB THD = –63.31 dB fIN = 250 kHz
Number of samples = 16384
Figure 3. Typical FFT
ADS7040 C004_SBAS676.png
Figure 5. SNR and SINAD vs Input Frequency
ADS7040 C006_SBAS676.png
Figure 7. THD vs Free-Air Temperature
ADS7040 C010_SBAS676.png
Figure 9. THD vs Reference Voltage
ADS7040 C009_SBAS676.png
Figure 11. SFDR vs Input Frequency
ADS7040 C012_SBAS676.png
Figure 13. DC Input Histogram
ADS7040 C014_SBAS676.png
Figure 15. Offset vs Reference Voltage
ADS7040 C016_SBAS676.png
Figure 17. Gain Error vs Reference Voltage
ADS7040 C018_SBAS676.png
AVDD = 3 V
Figure 19. Typical INL
ADS7040 C020_SBAS676.png
AVDD = 1.8 V
Figure 21. Typical INL
ADS7040 C022_SBAS676.png
Figure 23. DNL vs Reference Voltage (AVDD)
ADS7040 C024_SBAS676.png
Figure 25. INL vs Reference Voltage (AVDD)
ADS7040 C026_SBAS676.png
AVDD = 3 V
Figure 27. AVDD Supply Current vs Throughput
ADS7040 C028_SBAS676.png
Figure 29. AVDD Supply Current vs AVDD Voltage
