5 Pin Configuration and Functions

RUG Package
8-Pin X2QFN
Top View
ADS7040 po_rug8_bas608.gif

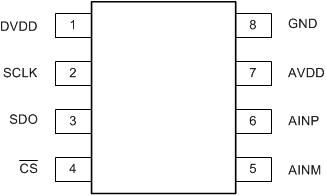

DCU Package
8-Pin Leaded VSSOP
Top View
ADS7040 po_dcu8_bas608.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
RUG DCU
AINM 8 5 Analog input Analog signal input, negative
AINP 7 6 Analog input Analog signal input, positive
AVDD 6 7 Supply Analog power-supply input, also provides the reference voltage to the ADC
CS 1 4 Digital input Chip-select signal, active low
DVDD 4 1 Supply Digital I/O supply voltage
GND 5 8 Supply Ground for power supply, all analog and digital signals are referred to this pin
SCLK 3 2 Digital input Serial clock
SDO 2 3 Digital output Serial data out
