7.11 Reset Timing (Only When Serial Interface Is Used)

See the Serial Register Readout section.
PARAMETER CONDITIONS MIN TYP(1) MAX UNIT
t1 Power-on delay Delay from AVDD and DRVDD power-up to active RESET pulse 1 ms
t2 Reset pulse width Active RESET signal pulse width 10 ns
1 µs
t3 Register write delay Delay from RESET disable to SEN active 100 ns
(1) Typical values at 25°C; minimum and maximum values across the full temperature range: TMIN = –40°C to TMAX = 85°C, unless otherwise noted.
Table 7-1 LVDS Timings at Lower Sampling Frequencies
SAMPLING FREQUENCY (MSPS) SETUP TIME (ns) HOLD TIME (ns) tPDI, CLOCK PROPAGATION
DELAY (ns)
MIN TYP MAX MIN TYP MAX MIN TYP MAX
65 5.9 6.6 0.35 0.6 5 6.1 7.5
80 4.5 5.2 0.35 0.6 5 6.1 7.5
105 3.1 3.6 0.35 0.6 5 6.1 7.5
125 2.3 2.9 0.35 0.6 5 6.1 7.5
150 1.7 2.2 0.35 0.6 5 6.1 7.5
Table 7-2 CMOS Timings at Lower Sampling Frequencies
SAMPLING FREQUENCY (MSPS) TIMINGS SPECIFIED WITH RESPECT TO CLKOUT
SETUP TIME (ns) HOLD TIME (ns) tPDI, CLOCK PROPAGATION
DELAY (ns)
MIN TYP MAX MIN TYP MAX MIN TYP MAX
65 6.1 7.2 6.7 7.1 4.5 6.4 8.5
80 4.7 5.8 5.3 5.8 4.5 6.4 8.5
105 3.4 4.3 3.8 4.3 4.5 6.4 8.5
125 2.7 3.6 3.1 3.6 4.5 6.4 8.5
150 1.9 2.8 2.5 2.9 4.5 6.4 8.5
Table 7-3 High-Performance Modes
PARAMETER(1)(2) DESCRIPTION
High-performance mode Set the HIGH PERF MODE register bit to obtain best performance across sample clock and input signal frequencies. See Figure 7-5.
Register address = 03h, data = 03h
High-frequency mode Set the HIGH FREQ MODE CH A and HIGH FREQ MODE CH B register bits for high input signal frequencies greater than 200 MHz. See Figure 7-5.
Register address = 4Ah, data = 01h
Register address = 58h, data = 01h
(1) It is recommended to use these modes to obtain best performance.
(2) See the Serial Interface Configuration section for details on register programming.
A. Dn = bits D0, D1, D2, etc. of channels A and B.
Figure 7-1 CMOS Interface Timing Diagram
A. ADC latency after reset. At higher sampling frequencies, tPDI is greater than one clock cycle, which then makes the overall latency = ADC latency + 1.
B. E = even bits (D0, D2, D4, etc.); O = odd bits (D1, D3, D5, etc.).
Figure 7-2 Latency Timing Diagram

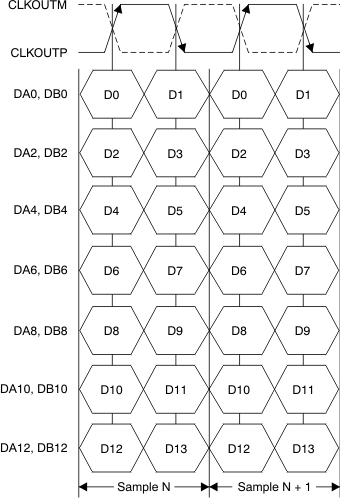

GUID-EA94FFE6-D486-4431-83D8-56F49A557B4F-low.gif Figure 7-3 ADS4246/45/42 LVDS Interface Timing Diagram
GUID-180F4024-F737-4AA3-BA53-F6735E2B0515-low.gif Figure 7-4 ADS4226/25/22 LVDS Interface Timing Diagram
A. With external 100-Ω termination.

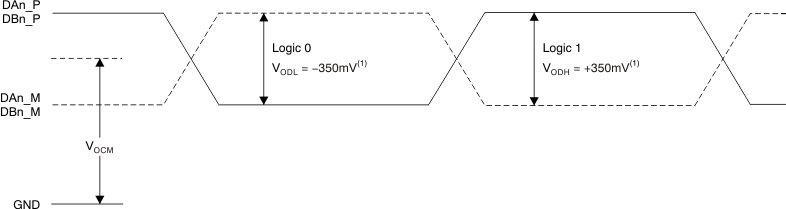

Figure 7-5 LVDS Output Voltage Levels
