8.3.5.4 HPF Stage

The last stage of the digital filter is a high-pass filter (HPF) implemented as a first-order, IIR structure. This filter stage blocks DC signals and rolls off low-frequency components below the cutoff frequency. Equation 10 shows the transfer function for the filter:

Equation 10. ADS1287 q_hpf2_bas418.gif

where

Equation 11. ADS1287 q_b_bas418.gif

The high-pass filter corner frequency is programmed by the HPF[1:0] register bits, in hexadecimal. Equation 12 is used to set the high-pass filter corner frequency. Table 12 lists example values for the high-pass filter.

Equation 12. ADS1287 q_hpf1-0_bas418.gif

where

  • HPF = High-pass filter register value (converted to hexadecimal)
  • ωN = 2πfHP / fDATA (normalized frequency, radians)
  • fHP = High-pass filter corner frequency (Hz)
  • fDATA = Data rate (Hz)

Table 12. High-Pass Filter Value Examples

HPF1, HPF0 fHP (Hz) DATA RATE (SPS)
0337h 0.5 250
0337h 1.0 500
019Ah 1.0 1000

Equation 13 shows the HPF frequency domain transfer function. The HPF results in a small gain error that depends on the ratio of fHP / fDATA. For many common values of (fHP / fDATA), the gain error is negligible. Figure 56 shows the gain error of the HPF.

ADS1287 ai_hpf_g_err_bas418.gifFigure 56. HPF Gain Error
Equation 13. ADS1287 q_hpf_gerr_bas418.gif

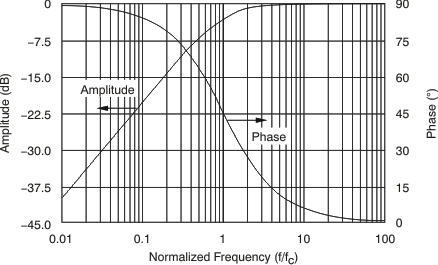

Figure 57 shows the first-order amplitude and phase response of the HPF. In the case of applied step input or after synchronizing, make sure to take the settling time of the filter into account.

ADS1287 ai_hpf_amp-freq_bas418.gifFigure 57. HPF Amplitude and Phase Response
