Output Formatting with Decimation

When using decimation, the digital output data is formatted as shown in Figure 8-38 (complex decimation) and Figure 8-39 (real decimation).The output format is illustrated for 18-bit output resolution.

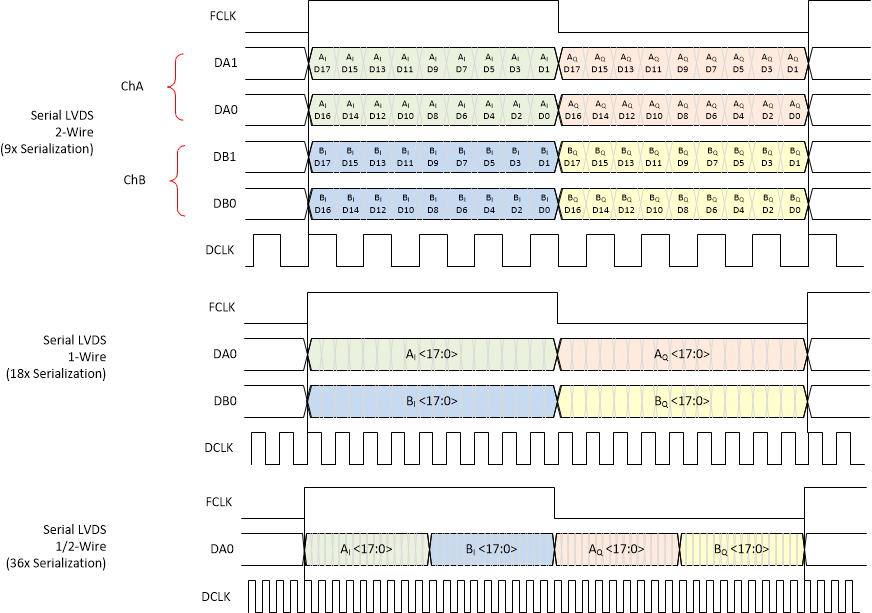

GUID-29BA1413-CE32-40DF-9319-D6E43616B1C2-low.gifFigure 8-38 Output Data Format in Complex Decimation (18-bit Output Resolution)

Table 8-4 illustrates the output interface data rate along with the corresponding DCLK/DCLKIN and FCLK frequencies based on output resolution (R), number of SLVDS lanes (L) and complex decimation setting (N).

Furthermore the table shows an actual lane rate example for the 2-, 1- and 1/2-wire interface, 18-bit output resolution and complex decimation by 4.

Table 8-4 Serial LVDS Lane Rate Examples with Complex Decimation and 18-bit Output Resolution
DECIMATION SETTINGADC SAMPLING RATEOUTPUT RESOLUTION# of WIRESFCLKDCLKIN, DCLKDA/B0,1
NFSRLFS / N[DA/B0,1] / 2FS x 2 x R / L / N
465 MSPS18216.25 MHz146.25 MHz292.5 MHz
1292.5 MHz585 MHz
55 MSPS1/213.75 MHz495 MHz990 MHz
GUID-7DF0CD18-671B-4FD7-950F-47E04A02F7BA-low.gif Figure 8-39 Output Data Format in Real Decimation (18-bit Output Resolution)

Table 8-5 illustrates the output interface data rate along with the corresponding DCLK/DCLKIN and FCLK frequencies based on output resolution (R), number of SLVDS lanes (L) and real decimation setting (M).

Furthermore the table shows an actual lane rate example for the 2-, 1- and 1/2-wire interface, 18-bit output resolution and real decimation by 4.

Table 8-5 Serial LVDS Lane Rate Examples with Real Decimation and 18-bit Output Resolution
DECIMATION SETTINGADC SAMPLING RATEOUTPUT RESOLUTION# of WIRESFCLKDCLKIN, DCLKDA/B0,1
MFSRLFS / M / 2 (L = 2)
FS / M (L = 1, 1/2)
[DA/B0,1] / 2FS x R / L / M
465 MSPS1828.125 MHz73.125 MHz146.25 MHz
116.25 MHz146.25 MHz292.5 MHz
1/2292.5 MHz585 MHz
