Specifications

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage range AVDD19 –0.3 2.1 V
AVDD –0.3 1.4
DVDD –0.3 1.4
Voltage applied to input pins INAP, INAM and INBP, INBM –0.3 AVDD19 + 0.3 V
CLKINP, CLKINM –0.3 AVDD + 0.6
SYSREFP, SYSREFM, SYNCBP, SYNCBM –0.3 AVDD + 0.6
SCLK, SEN, SDIN, RESET, PDN, GPIO1, GPIO2, GPIO3, GPIO4 –0.2 AVDD19 + 0.2
Voltage applied to output pins –0.3 2.2 V
Temperature Operating free-air, TA –40 85 °C
Storage, Tstg –65 150
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±1000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supply voltage AVDD19 1.8 1.9 2.0 V
AVDD 1.1 1.15 1.25
DVDD 1.1 1.15 1.2
Temperature Operating free-air, TA –40 85 °C
Operating junction, TJ 105(1) 125
Prolonged use above this junction temperature may increase the device failure-in-time (FIT) rate.

Thermal Information

THERMAL METRIC(1) ADC32RF45 UNIT
RMP (VQFN)
72 PINS
RθJA Junction-to-ambient thermal resistance 21.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 4.4 °C/W
RθJB Junction-to-board thermal resistance 2.0 °C/W
ψJT Junction-to-top characterization parameter 0.1 °C/W
ψJB Junction-to-board characterization parameter 2.0 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 0.2 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and ADC sampling rate = 3 GHz, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
POWER CONSUMPTION(4) (Dual-Channel Operation, Both Channels A and B are Active; DDC Bypass Mode(3))
IAVDD19 1.9-V analog supply current 12-bit, bypass mode, fS = 3.0 GSPS 1792 1965 mA
IAVDD 1.15-V analog supply current 12-bit, bypass mode, fS = 3.0 GSPS 972 1062 mA
IDVDD 1.15-V digital supply current 12-bit, bypass mode, fS = 3.0 GSPS 1748 1892 mA
PD Power dissipation 12-bit, bypass mode, fS = 3.0 GSPS 6.53 7.01 W
Global power-down power dissipation 360 mW
ANALOG INPUTS
Resolution 14 Bits
Differential input full-scale 1.35 VPP
VIC Input common-mode voltage 1.2(5) V
RIN Input resistance Differential resistance at dc 65 Ω
CIN Input capacitance Differential capacitance at dc 2 pF
VCM common-mode voltage output 1.2 V
Analog input bandwidth
(–3-dB point)
ADC driven with 50-Ω source 3200 MHz
ISOLATION
Crosstalk isolation between channel A and channel B(1) fIN = 100 MHz 100 dBc
fIN = 900 MHz 99
fIN = 1800 MHz 95
fIN = 2700 MHz 86
fIN = 3500 MHz 85
CLOCK INPUT(2)
Input clock frequency 1.5 3 GHz
Differential (peak-to-peak) input clock amplitude 0.5 1.5 2.5 VPP
Input clock duty cycle 45% 50% 55%
Internal clock biasing 1.0 V
Internal clock termination (differential) 100 Ω
Crosstalk is measured with a –2-dBFS input signal on aggressor channel and no input on the victim channel.
See Figure 59.
Full-scale signal is applied to the analog inputs of all active channels.
See the Power Consumption in Different Modes section for more details.
When used in dc-coupling mode, the common-mode voltage at the analog inputs should be kept within VCM ±25 mV for best performance.

AC Performance Characteristics

typical values specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and ADC sampling rate = 3 GHz, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN(3) NOM MAX UNIT
SNR Signal-to-noise ratio fIN = 100 MHz, AOUT = –2 dBFS 62.7 dBFS
fIN = 900 MHz, AOUT = –2 dBFS 60.9
fIN = 1850 MHz, AOUT = –2 dBFS 55.4 58.8
fIN = 2100 MHz, AOUT = –2 dBFS 58.2
fIN = 2600 MHz, AOUT = –2 dBFS 56.8
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 54.2
NSD Noise spectral density averaged across the Nyquist zone fIN = 100 MHz, AOUT = –2 dBFS 154.5 dBFS/Hz
fIN = 900 MHz, AOUT = –2 dBFS 152.7
fIN = 1850 MHz, AOUT = –2 dBFS 147.2 150.6
fIN = 2100 MHz, AOUT = –2 dBFS 150.0
fIN = 2600 MHz, AOUT = –2 dBFS 148.6
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 146.0
Small-signal SNR fIN = 1850 MHz, AOUT = –40 dBFS 63.0 dBFS
NF(1) Input noise figure fIN = 1850 MHz, AOUT = –40 dBFS 24.7 dB
SINAD Signal-to-noise and distortion ratio fIN = 100 MHz, AOUT = –2 dBFS 61.8 dBFS
fIN = 900 MHz, AOUT = –2 dBFS 60.2
fIN = 1850 MHz, AOUT = –2 dBFS 58.2
fIN = 2100 MHz, AOUT = –2 dBFS 57.5
fIN = 2600 MHz, AOUT = –2 dBFS 56.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 53.6
ENOB Effective number of bits fIN = 100 MHz, AOUT = –2 dBFS 10.0 Bits
fIN = 900 MHz, AOUT = –2 dBFS 9.7
fIN = 1850 MHz, AOUT = –2 dBFS 9.4
fIN = 2100 MHz, AOUT = –2 dBFS 9.3
fIN = 2600 MHz, AOUT = –2 dBFS 9.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 8.6
SFDR Spurious-free dynamic range fIN = 100 MHz, AOUT = –2 dBFS 69.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 67.0
fIN = 1850 MHz, AOUT = –2 dBFS 58 66.0
fIN = 2100 MHz, AOUT = –2 dBFS 65.0
fIN = 2600 MHz, AOUT = –2 dBFS 57.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 61.0
HD2(4) Second-order harmonic distortion fIN = 100 MHz, AOUT = –2 dBFS 69.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 73.0
fIN = 1850 MHz, AOUT = –2 dBFS 58 66.0
fIN = 2100 MHz, AOUT = –2 dBFS 65.0
fIN = 2700 MHz, AOUT = –2 dBFS 57.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 61.0
HD3 Third-order harmonic distortion fIN = 100 MHz, AOUT = –2 dBFS 72.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 67.0
fIN = 1850 MHz, AOUT = –2 dBFS 61 70.0
fIN = 2100 MHz, AOUT = –2 dBFS 80.0
fIN = 2600 MHz, AOUT = –2 dBFS 79.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 66.0
HD4, HD5 Fourth- and fifth-order harmonic distortion fIN = 100 MHz, AOUT = –2 dBFS 83.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 81.0
fIN = 1850 MHz, AOUT = –2 dBFS 61 86.0
fIN = 2100 MHz, AOUT = –2 dBFS 83.0
fIN = 2600 MHz, AOUT = –2 dBFS 76.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 82.0
IL spur Interleaving spurs:
fS / 2 – fIN,
fS / 4 ± fIN
fIN = 100 MHz, AOUT = –2 dBFS 89.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 79.0
fIN = 1850 MHz, AOUT = –2 dBFS 69 82.0
fIN = 2100 MHz, AOUT = –2 dBFS 77.0
fIN = 2600 MHz, AOUT = –2 dBFS 78.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 78.0
HD2 IL Interleaving spur for HD2:
fS / 2 – HD2
fIN = 100 MHz, AOUT = –2 dBFS 82.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 81.0
fIN = 1850 MHz, AOUT = –2 dBFS 62 80.0
fIN = 2100 MHz, AOUT = –2 dBFS 76.0
fIN = 2600 MHz, AOUT = –2 dBFS 65.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 77.0
Worst spur Spurious-free dynamic range (excluding HD2, HD3, HD4, HD5, and interleaving spurs IL and HD2 IL) fIN = 100 MHz, AOUT = –2 dBFS 81.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 77.0
fIN = 1850 MHz, AOUT = –2 dBFS 64 75.0
fIN = 2100 MHz, AOUT = –2 dBFS 75.0
fIN = 2600 MHz, AOUT = –2 dBFS 74.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 71.0
IMD3 Two-tone, third-order intermodulation distortion fIN1 = 1770 MHz, fIN2 = 1790 MHz,
AOUT = –8 dBFS (each tone)
73 dBFS
fIN1 = 1800 MHz, fIN2 = 2600 MHz,
AOUT = –8 dBFS (each tone)
65
fIN1 = 3490 MHz, fIN2 = 3510 MHz,
AOUT = –8 dBFS (each tone) with 2-dB gain
75
The ADC internal resistance = 65 Ω, the driving source resistance = 50 Ω.
Output amplitude, AOUT, refers to the signal amplitude in the ADC digital output that is same as the analog input amplitude, AIN, except when the digital gain feature is used. If digital gain is G, then AOUT = G + AIN.
Minimum values are specified at AOUT = –3 dBFS.
The minimum value of HD2 is specified by bench characterization.

Digital Requirements

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and ADC sampling rate = 3 GHz, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
DIGITAL INPUTS (RESET, SCLK, SEN, SDIN, PDN, GPIO1, GPIO2, GPIO3, GPIO4)
VIH High-level input voltage 0.8 V
VIL Low-level input voltage 0.4 V
IIH High-level input current 50 µA
IIL Low-level input current –50 µA
Ci Input capacitance 4 pF
DIGITAL OUTPUTS (SDOUT, GPIO1, GPIO2, GPIO3, GPIO4)
VOH High-level output voltage AVDD19–0.1 AVDD19 V
VOL Low-level output voltage 0.1 V
DIGITAL INPUTS (SYSREFP and SYSREFM; SYNCBP and SYNCBM; Requires External Biasing)
VID Differential input voltage 350 450 800 mVPP
VCM Input common-mode voltage 1.05 1.2 1.325 V
DIGITAL OUTPUTS (JESD204B Interface: DA[3:0], DB[3:0], Meets JESD204B LV-0IF-11G-SR Standard)
|VOD| Output differential voltage 700 mVPP
|VOCM| Output common-mode voltage 450 mV
Transmitter short-circuit current Transmitter pins shorted to any voltage between –0.25 V and 1.45 V –100 100 mA
zos Single-ended output impedance 50 Ω
Co Output capacitance Output capacitance inside the device, from either output to ground 2 pF

Timing Requirements

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and ADC sampling rate = 3 GHz, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
MIN NOM MAX UNIT
SAMPLE TIMING
Aperture delay 250 750 ps
Aperture delay matching between two channels on the same device ±15 ps
Aperture delay matching between two devices at the same
temperature and supply voltage
±150 ps
Aperture jitter, clock amplitude = 2 VPP 90 fS
Latency
(1)(3)
Data latency, ADC sample to digital output 12-bit bypass mode, LMFS = 82820 461 Input clock cycles
14-bit bypass mode, LMFS = 8224 424 Input clock cycles
Fast overrange latency, ADC sample to FOVR indication on GPIO pins 70
tPD Propagation delay time: logic gates and output buffer delay
(does not change with fS)
6 ns
SYSREF TIMING(2)
tSU_SYSREF SYSREF setup time: referenced to clock rising edge, 3 GSPS 140 70 ps
tH_SYSREF SYSREF hold time: referenced to clock rising edge, 3 GSPS 50 20 ps
Valid transition window sampling period: tSU_SYSREF – tH_SYSREF, 3 GSPS 143 ps
JESD OUTPUT INTERFACE TIMING
UI Unit interval: 12.5 Gbps 80 100 400 ps
Serial output data rate 2.5 10.0 12.5 Gbps
Rise, fall times: 1-pF, single-ended load capacitance to ground 60 ps
Total jitter: BER of 1E-15 and lane rate = 12.5 Gbps 25 %UI
Random jitter: BER of 1E-15 and lane rate = 12.5 Gbps 0.99 %UI, rms
Deterministic jitter: BER of 1E-15 and lane rate = 12.5 Gbps 9.1 %UI, pk-pk
Overall latency = latency + tPD.
Common-mode voltage for the SYSREF input is kept at 1.2 V.
Latency increases when the DDC modes are used; see Table 4.
ADC32RF45 digital_inpt_outpts_sbas747.gif
VOCM is not the same as VICM. Similarly, VOD is not the same as VID.
Figure 1. Logic Levels for Digital Inputs and Outputs
ADC32RF45 tmg_rqrmnts_dgm_sbas747.gif Figure 2. SYSREF Timing Diagram

Typical Characteristics

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and ADC sampling rate = 3 GHz, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)

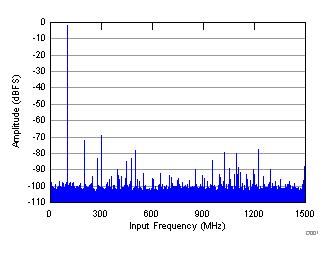

ADC32RF45 D001_SBAS747.gif
SNR = 62.3 dBFS; SFDR = 67 dBc;
HD2 = –70 dBc; HD3 = –67 dBc; non HD2, HD3 = 76 dBc;
IL spur = 82.5 dBc; fIN = 100 MHz
Figure 3. FFT for 100-MHz Input Frequency
ADC32RF45 D003_SBAS747.gif
SNR = 58.9 dBFS; SFDR = 67 dBc;
HD2 = –68 dBc; HD3 = –67 dBc; non HD2, HD3 = 82 dBc;
IL spur = 80 dBc; fIN = 1780 MHz

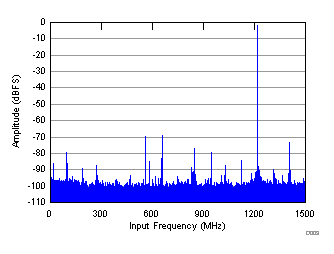

Figure 5. FFT for 1780-MHz Input Frequency

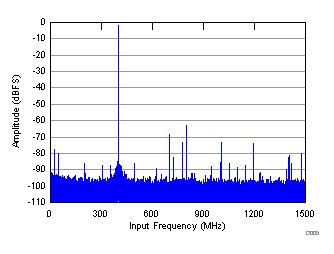

ADC32RF45 D005_SBAS747.gif
SNR = 56.8 dBFS; SFDR = 61 dBc;
HD2 = –61 dBc; HD3 = –71 dBc; non HD2, HD3 = 71 dBc;
IL spur = 66 dBc; fIN = 2600 MHz
Figure 7. FFT for 2600-MHz Input Frequency

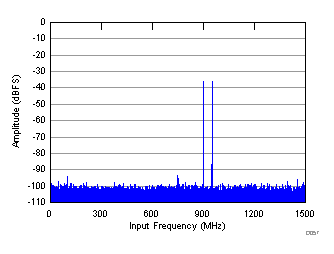

ADC32RF45 D056_SBAS747.gif
fIN1 = 0.90 GHz, fIN2 = 0.95 GHz, AOUT = –8 dBFS,
IMD = 78 dBFS
Figure 9. FFT for Two-Tone Input Signal (–8 dBFS)

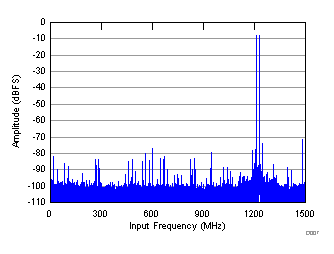

ADC32RF45 D007_SBAS747.gif
fIN1 = 1.77 GHz, fIN2 = 1.79 GHz, AOUT = –8 dBFS,
IMD = 73 dBFS
Figure 11. FFT for Two-Tone Input Signal (–8 dBFS)

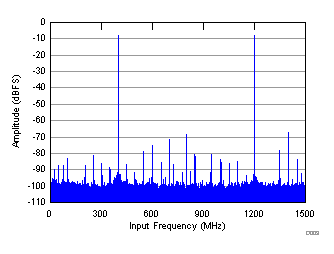

ADC32RF45 D009_SBAS747.gif
fIN1 = 1.80 GHz, fIN2 = 2.60 GHz, AOUT = –8 dBFS,
IMD = 67 dBFS
Figure 13. FFT for Two-Tone Input Signal (–8 dBFS)
ADC32RF45 D011_SBAS747.gif

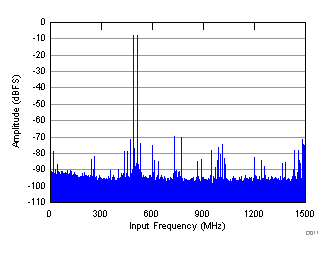

fIN1 = 3.49 GHz, fIN2 = 3.51 GHz, AOUT = –8 dBFS with 2-dB digital gain, IMD = 69 dBFS
Figure 15. FFT for Two-Tone Input Signal (–8 dBFS)
ADC32RF45 D013_SBAS747.gif

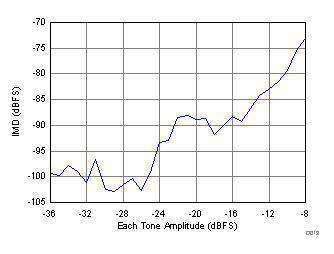

fIN1 = 1.77 GHz, fIN2 = 1.79 GHz (Excluding fIN1 – fIN2)

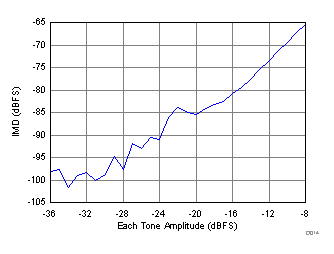

Figure 17. Intermodulation Distortion vs Input Amplitude (1770 MHz and 1790 MHz)

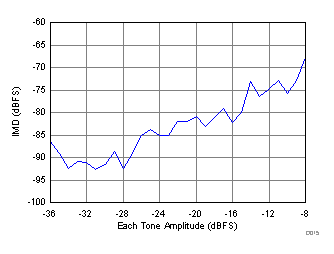

ADC32RF45 D015_SBAS747.gif
fIN1 = 3.49 GHz, fIN2 = 3.51 GHz (Excluding fIN1 – fIN2) with 2-dB digital gain
Figure 19. Intermodulation Distortion vs Input Amplitude (3490 MHz and 3510 MHz)
ADC32RF45 D017_SBAS747.gif
AOUT = –2 dBFS with 0-dB gain for the first and second Nyquist,
AOUT = –3 dBFS with 2-dB gain for the third Nyquist
Figure 21. IL Spur vs Input Frequency
ADC32RF45 D019_SBAS747.gif

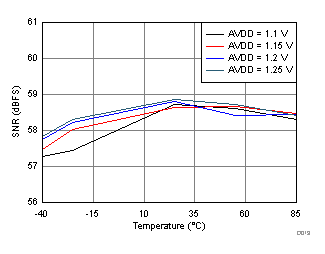

fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 23. Signal-to-Noise Ratio vs
AVDD Supply and Temperature

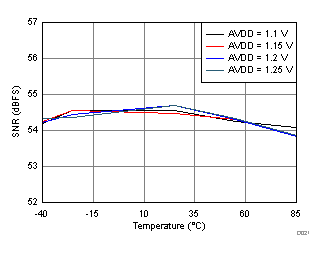

ADC32RF45 D021_SBAS747.gif
fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain
Figure 25. Signal-to-Noise Ratio vs
AVDD Supply and Temperature
ADC32RF45 D023_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 27. Signal-to-Noise Ratio vs
DVDD Supply and Temperature

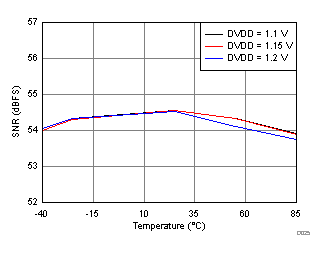

ADC32RF45 D025_SBAS747.gif
fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain
Figure 29. Signal-to-Noise Ratio vs
DVDD Supply and Temperature
ADC32RF45 D027_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 31. Signal-to-Noise Ratio vs
AVDD19 Supply and Temperature
ADC32RF45 D029_SBAS747.gif

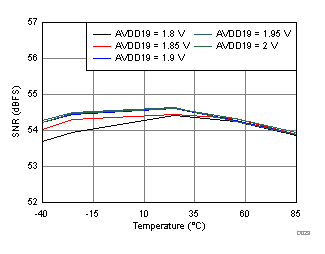

fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain
Figure 33. Signal-to-Noise Ratio vs
AVDD19 Supply and Temperature
ADC32RF45 D031_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS

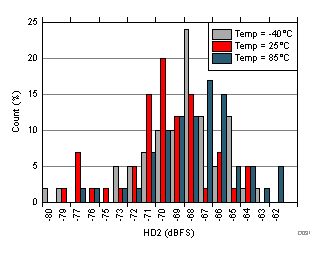

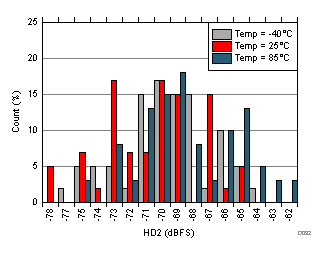

Figure 35. HD2 Histogram at AVDD19 = 1.8 V

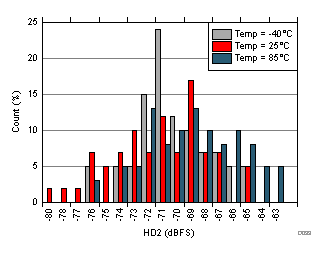

ADC32RF45 D033_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 37. HD2 Histogram at AVDD19 = 2.0 V

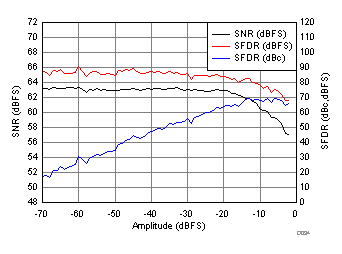

ADC32RF45 D035_SBAS747.gif

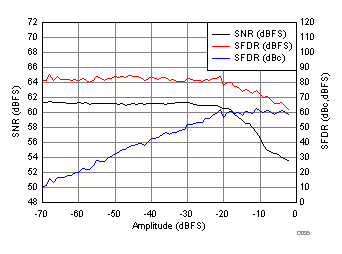

fIN = 3.5 GHz
Figure 39. Performance vs Amplitude

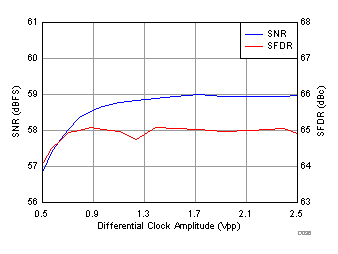

ADC32RF45 D037_SBAS747.gif

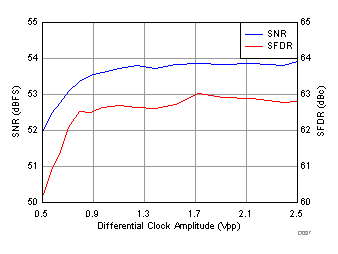

fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain

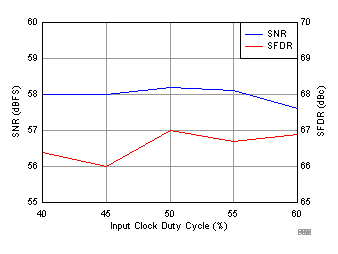

Figure 41. Performance vs Clock Amplitude
ADC32RF45 D039_SBAS747.gif

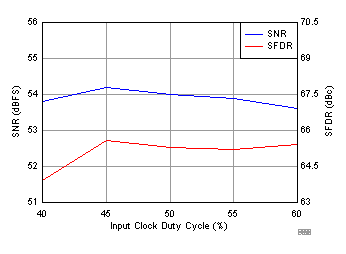

fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain
Figure 43. Performance vs Clock Duty Cycle
ADC32RF45 D041_SBAS747.gif

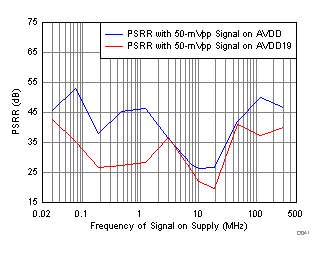

fIN = 1.8 GHz, AOUT = –2 dBFS
Figure 45. Power-Supply Rejection Ratio vs

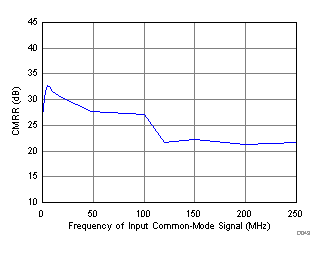

Tone Frequency
ADC32RF45 D043_SBAS747.gif
fIN = 1.8 GHz, AOUT = –2 dBFS
Figure 47. Common-Mode Rejection Ratio vs
Tone Frequency
ADC32RF45 D046_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 61.6 dBFS, SFDR = 74.5 dBc

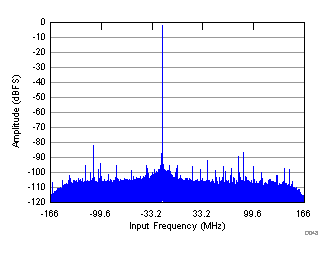

Figure 49. FFT in 6X Decimation (Complex Output)
ADC32RF45 D048_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 62.5 dBFS, SFDR = 76 dBc
Figure 51. FFT in 9X Decimation (Complex Output)
ADC32RF45 D050_SBAS747.gif

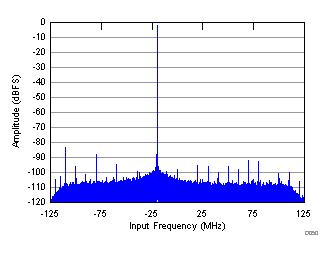

fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 63 dBFS, SFDR = 75 dBc
Figure 53. FFT in 12X Decimation (Complex Output)
ADC32RF45 D052_SBAS747.gif

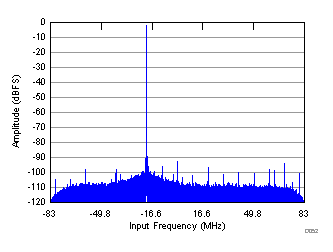

fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 64.1 dBFS, SFDR = 82 dBc
Figure 55. FFT in 18X Decimation (Complex Output)
ADC32RF45 D054_SBAS747.gif

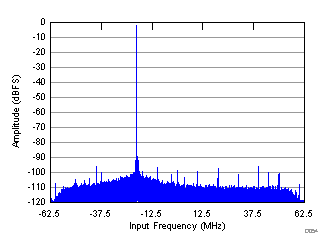

fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 64.36 dBFS, SFDR = 81 dBc
Figure 57. FFT in 24X Decimation (Complex Output)

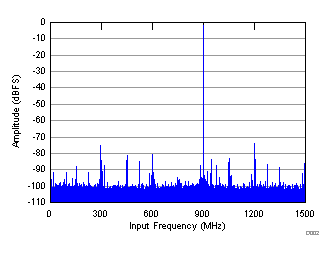

ADC32RF45 D002_SBAS747.gif

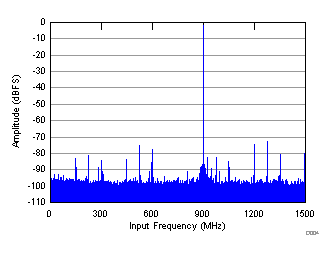

SNR = 61.4 dBFS; SFDR = 72 dBc;
HD2 = –72 dBc; HD3 = –73 dBc; non HD2, HD3 = 84 dBc;
IL spur = 79 dBc; fIN = 900 MHz
Figure 4. FFT for 900-MHz Input Frequency
ADC32RF45 D004_SBAS747.gif
SNR = 57.8 dBFS; SFDR = 70 dBc;
HD2 = –72 dBc; HD3 = –89 dBc; non HD2, HD3 = 70 dBc;
IL spur = 75 dBc; fIN = 2100 MHz
Figure 6. FFT for 2100-MHz Input Frequency

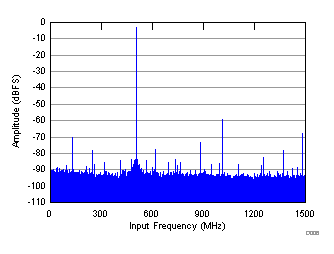

ADC32RF45 D006_SBAS747.gif
SNR = 53.4 dBFS; SFDR = 56 dBc;
HD2 = –56 dBc; HD3 = –64 dBc; non HD2, HD3 = 67 dBc;
IL spur = 75 dBc; fIN = 3500 MHz, AOUT = –3 dBFS with 2-dB gain
Figure 8. FFT for 3500-MHz Input Frequency
ADC32RF45 D057_SBAS747.gif
fIN1 = 0.90 GHz, fIN2 = 0.95 GHz, AOUT = –36 dBFS,
IMD = 99 dBFS
Figure 10. FFT for Two-Tone Input Signal (–36 dBFS)

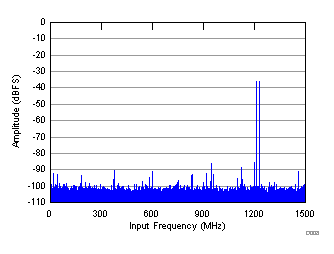

ADC32RF45 D008_SBAS747.gif
fIN1 = 1.77 GHz, fIN2 = 1.79 GHz, AOUT = –36 dBFS,
IMD = 99 dBFS
Figure 12. FFT for Two-Tone Input Signal (–36 dBFS)

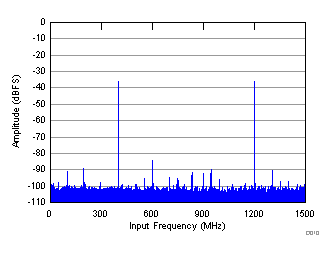

ADC32RF45 D010_SBAS747.gif
fIN1 = 1.80 GHz, fIN2 = 2.60 GHz, AOUT = –36 dBFS,
IMD = 98 dBFS
Figure 14. FFT for Two-Tone Input Signal (–36 dBFS)
ADC32RF45 D012_SBAS747.gif
fIN1 = 3.49 GHz, fIN2 = 3.51 GHz, AOUT = –36 dBFS with 2-dB digital gain, IMD = 86 dBFS
Figure 16. FFT for Two-Tone Input Signal (–36 dBFS)
ADC32RF45 D014_SBAS747.gif
fIN1 = 1.80 GHz, fIN2 = 2.60 GHz (Excluding fIN1 – fIN2)
Figure 18. Intermodulation Distortion vs Input Amplitude (1800 MHz and 2600 MHz)
ADC32RF45 D016_SBAS747.gif

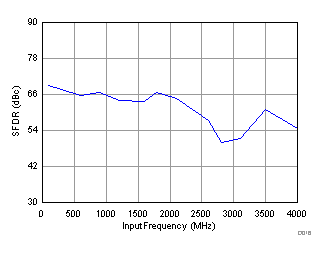

AOUT = –2 dBFS with 0-dB gain for the first and second Nyquist,
AOUT = –3 dBFS with 2-dB gain for the third Nyquist
Figure 20. Spurious-Free Dynamic Range vs
Input Frequency

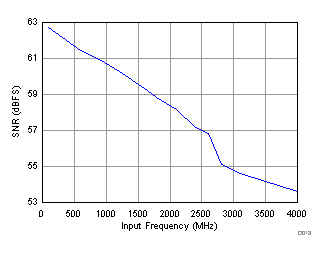

ADC32RF45 D018_SBAS747.gif
AOUT = –2 dBFS with 0-dB gain for the first and second Nyquist,
AOUT = –3 dBFS with 2-dB gain for the third Nyquist
Figure 22. Signal-to-Noise Ratio vs Input Frequency
ADC32RF45 D020_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 24. Spurious-Free Dynamic Range vs
AVDD Supply and Temperature

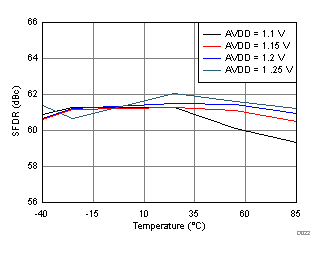

ADC32RF45 D022_SBAS747.gif
fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain
Figure 26. Spurious-Free Dynamic Range vs
AVDD Supply and Temperature

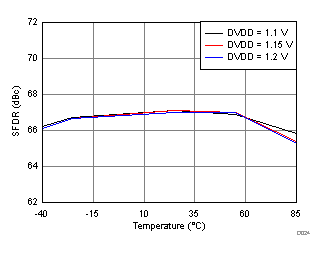

ADC32RF45 D024_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 28. Spurious-Free Dynamic Range vs
DVDD Supply and Temperature

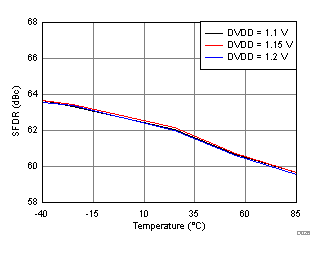

ADC32RF45 D026_SBAS747.gif
fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain
Figure 30. Spurious-Free Dynamic Range vs
DVDD Supply and Temperature

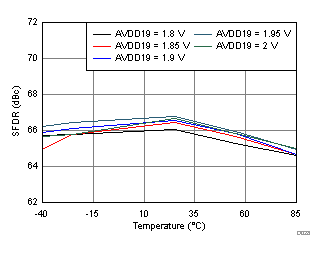

ADC32RF45 D028_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 32. Spurious-Free Dynamic Range vs
AVDD19 Supply and Temperature

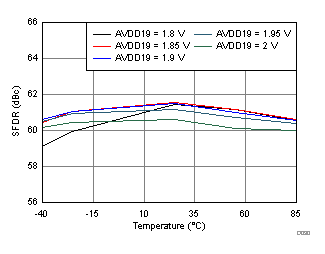

ADC32RF45 D030_SBAS747.gif
fIN = 3.5 GHz, AOUT = –3 dBFS with 2-dB digital gain
Figure 34. Spurious-Free Dynamic Range vs
AVDD19 Supply and Temperature
ADC32RF45 D032_SBAS747.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 36. HD2 Histogram at AVDD19 = 1.9 V
ADC32RF45 D034_SBAS747.gif
fIN = 1.78 GHz
Figure 38. Performance vs Amplitude
ADC32RF45 D036_SBAS747.gif
fIN = 1.78 GHz
Figure 40. Performance vs Clock Amplitude
ADC32RF45 D038_SBAS747.gif
fIN = 1.78 GHz
Figure 42. Performance vs Clock Duty Cycle

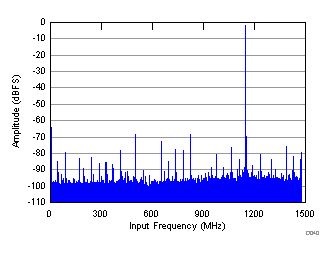

ADC32RF45 D040_SBAS747.gif
fIN = 1.8 GHz, AOUT = –2 dBFS, fPSRR = 3 MHz,
APSRR = 50 mVPP, AVDD19 = 1.9 V, PSRR = 37 dB
Figure 44. Power-Supply Rejection Ratio FFT for
Test Signal on AVDD19 Supply

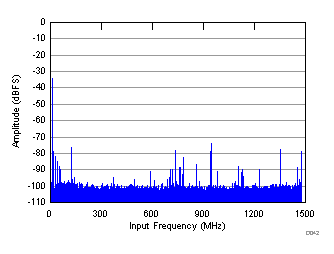

ADC32RF45 D042_SBAS747.gif
fCMRR = 10 MHz, ACMRR = 50 mVPP,
no differential input signal, CMRR = 32 dB
Figure 46. Common-Mode Rejection Ratio FFT

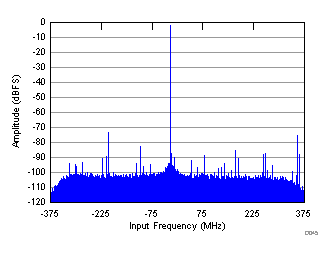

ADC32RF45 D045_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 60.5 dBFS, SFDR = 71.1 dBc
Figure 48. FFT in 4X Decimation (Complex Output)

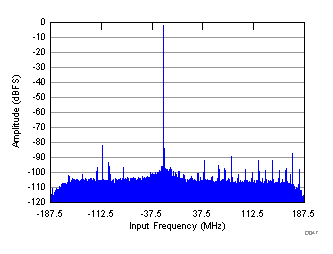

ADC32RF45 D047_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 62.3 dBFS, SFDR = 77.5 dBc
Figure 50. FFT in 8X Decimation (Complex Output)
ADC32RF45 D049_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 62.90 dBFS, SFDR = 80 dBc
Figure 52. FFT in 10X Decimation (Complex Output)
ADC32RF45 D051_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 63.2 dBFS, SFDR = 75.7 dBc
Figure 54. FFT in 16X Decimation (Complex Output)

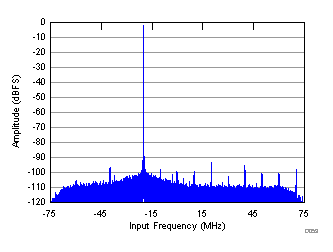

ADC32RF45 D053_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 64.2 dBFS, SFDR = 80.5 dBc
Figure 56. FFT in 20X Decimation (Complex Output)

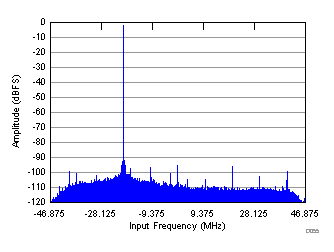

ADC32RF45 D055_SBAS747.gif
fS = 3 GSPS, fIN = 1.78 GHz,
AOUT = –2 dBFS, SNR = 64.6 dBFS, SFDR = 80 dBc
Figure 58. FFT in 32X Decimation (Complex Output)
