10.2 Layout Example

The following examples show layout-example plots (top and bottom layers only). Figure 117 shows a typical stackup for a 10 layer board.

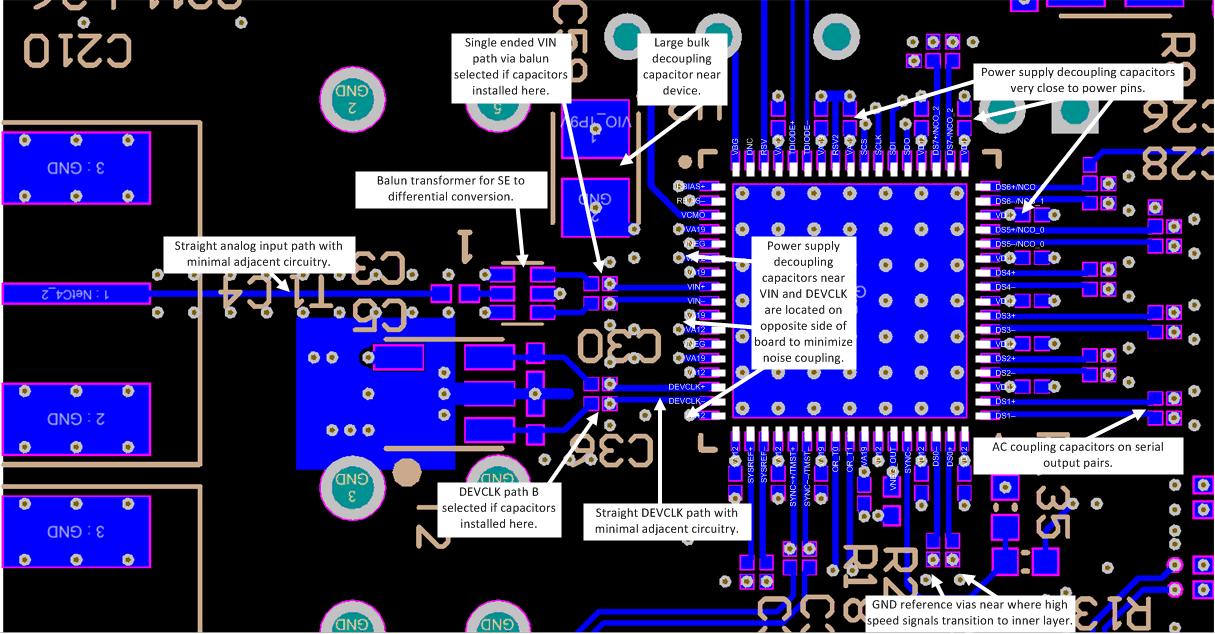

ADC12J1600 ADC12J2700 Layout_Rec1.gifFigure 115. ADC12J1600 and ADC12J2700 Layout Example 1 — Top Side

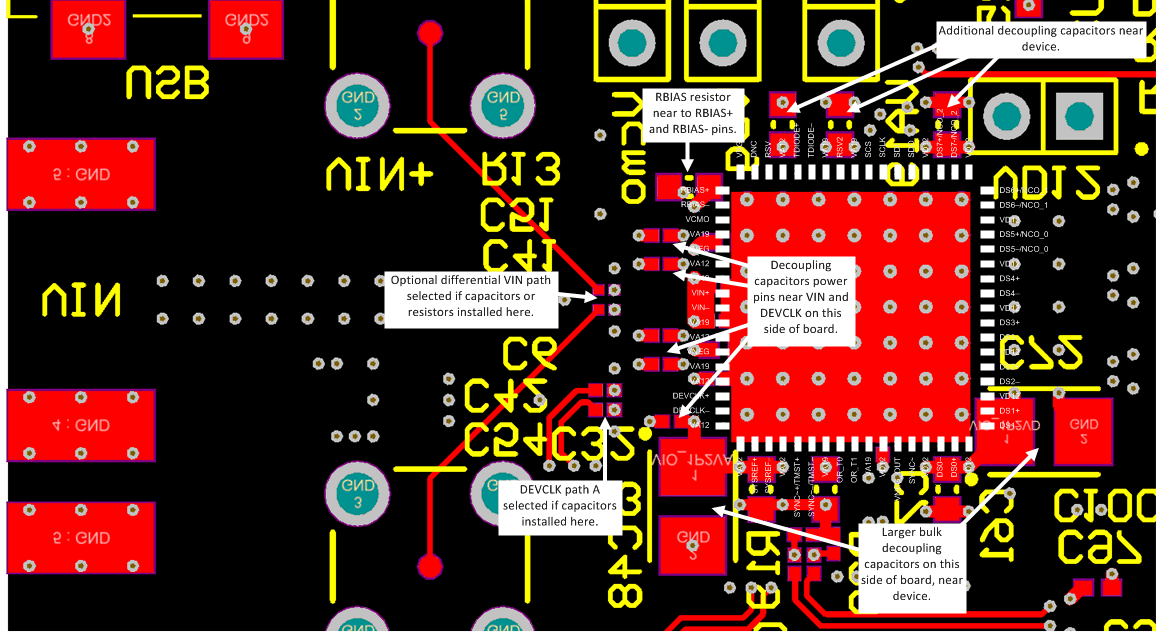

ADC12J1600 ADC12J2700 Layout_Rec2.gifFigure 116. ADC12J1600 and ADC12J2700 Layout Example 2 — Bottom Side
ADC12J1600 ADC12J2700 PCB_Stackup.gifFigure 117. ADC12J1600 and ADC12J2700 Typical Stackup — 10 Layer Board
