Universal Input Buffer (PRI_REF, SEC_REF)

The primary reference can support differential or single-ended clocks. The secondary reference can support differential or single-ended clocks or crystal. The differential input buffers on both primary and secondary support internal 50 Ω to ground or 100 Ω termination between P and N followed by on-chip AC-coupling capacitors to internal self-biased circuitry. Internal biasing is offered before the on-chip AC-coupling capacitors when the clock inputs are AC coupled externally, and this is enabled by setting R29.0 = 1 (for primary reference) or R29.1 = 1 (for secondary reference). When the clock inputs are DC coupled, the internal biasing before the on-chip AC-coupling capacitors is disabled by settings R29.0 = 0 (for primary reference) or R29.1 = 0 (for secondary reference). Figure 45 shows the differential input buffer termination options implemented on both primary and secondary and the switches (SWLVDS, SWHCSL, SWAC) are controlled by R29[5-0]. Table 4 shows the primary and secondary buffer configuration matrix for LVPECL, CML, LVDS, HCSL and LVCMOS inputs.

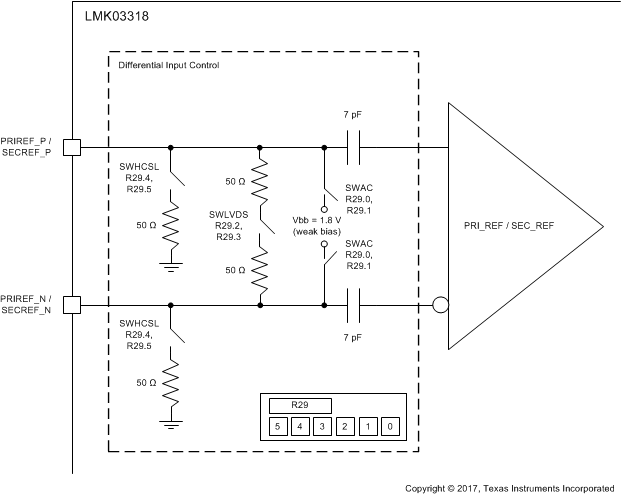

LMK03318 differential_input_buffer_termination_options_snas669.gifFigure 45. Differential Input Buffer Termination Options on Primary and Secondary Reference

Table 4. Input Buffer Configuration Matrix on Primary and/or Secondary Reference(1)

R50.5 / R50.7 R50.4 / R50.6 R29.4 / R29.5 R29.2 / R29.3 R29.0 / R29.1 MODE EXTERNAL COUPLING TERMINATION BIASING
0 1 0 1 1 HCSL AC Internal Internal
0 1 0 1 1 LVDS AC Internal Internal
0 1 0 1 1 LVPECL AC Internal Internal
0 1 0 1 1 CML AC Internal Internal
0 1 1 0 0 HCSL DC Internal External
0 1 0 1 0 LVDS DC Internal External
0 1 0 0 0 LVPECL DC External External
0 1 0 0 0 CML DC External External
0 0 0 0 0 LVCMOS DC N/A N/A
When termination is set to External, internal on-chip termination of LMK03318 should be disabled.

Figure 46 through Figure 55 show recommendations for interfacing primary or secondary inputs of the LMK03318 with LVCMOS, LVPECL, LVDS, CML and HCSL drivers, respectively.

NOTE

The secondary reference accepts up to 2.6-V maximum swing when LVCMOS input option is selected.

LMK03318 interfacing_lmk03318_primary_input_snas669.gifFigure 46. Interfacing LMK03318 Primary Input With 3.3-V LVCMOS Signal
LMK03318 interfacing_lmk03318_secondary_input_snas669.gifFigure 47. Interfacing LMK03318 Secondary Input With 3.3-V LVCMOS Signal
LMK03318 interfacing_lmk03318_inputs_lvpecl_signal_snas669.gifFigure 48. DC-Coupling LMK03318 Inputs With LVPECL Signal
LMK03318 interfacing_lmk03318_inputs_lvds_signal_snas669.gifFigure 49. DC-Coupling LMK03318 Inputs With LVDS Signal
LMK03318 interfacing_lmk03318_inputs_cml_signal_snas669.gifFigure 50. DC-Coupling LMK03318 Inputs With CML Signal
LMK03318 interfacing_lmk03318_inputs_hcsl_signal_snas669.gifFigure 51. DC-Coupling LMK03318 Inputs With HCSL Signal
LMK03318 interfacing_lmk03318_inputs_lvpecl_ac_signal_snas669.gifFigure 52. AC-Coupling LMK03318 Inputs With LVPECL Signal (Internal Biasing Enabled)
LMK03318 interfacing_lmk03318_inputs_lvds_ac_signal_snas669.gifFigure 53. AC-Coupling LMK03318 Inputs With LVDS Signal (Internal Biasing Enabled)
LMK03318 interfacing_lmk03318_inputs_cml_ac_signal_snas669.gifFigure 54. AC-Coupling LMK03318 Inputs With CML Signal (Internal Biasing Enabled)
LMK03318 interfacing_lmk03318_inputs_hcsl_ac_signal_snas669.gifFigure 55. AC-Coupling LMK03318 Inputs With HCSL Signal (Internal Biasing Enabled)
