Parameter Measurement Information

TMDS171 TMDS171I Main_Link_Test_Circuit_sllsen7.gif Figure 4. TMDS Main Link Test Circuit
TMDS171 TMDS171I Input_Output_Timing_Measurements_sllsen7.gif Figure 5. Input/Output Timing Measurements
TMDS171 TMDS171I Output_Skew_Measurements_sllsen7.gif Figure 6. TMDS Output Skew Measurements
TMDS171 TMDS171I Output_Com_Mode_Measurement_sllsen7.gif Figure 7. HDMI/DVI TMDS Output Common Mode Measurement
TMDS171 TMDS171I pre-emphasis_differential_waveform_sllsen7.gif Figure 8. Output Differential Waveform
TMDS171 TMDS171I PRE_SEL_L_sllsen7.gif Figure 9. Output De-emphasis Waveform
TMDS171 TMDS171I pre_emphasis_circuit_sllsen7.gif
The FR4 trace between TTP1 and TTP2 is designed to emulate 1-8” of FR4, connector and another 1-8” of FR4. Trace width – 4 mils. 100 Ω differential impedance.
All Jitter is measured at a BER of 10-9
Residual jitter reflects the total jitter measured at TTP4 minus the jitter measured at TTP1
AVCC = 3.3 V
RT = 50 Ω
The input signal from parallel Bert does not have any pre-emphasis. Refer to Recommended Operating Conditions.
Figure 10. Jitter Measurement Circuit
TMDS171 TMDS171I HDMI_Output_Jitter_Measurement_sllsen7.gif Figure 11. HDMI Output Jitter Measurement
TMDS171 TMDS171I HPD_Test_Circuit_sllsen7.gif Figure 12. HPD Test Circuit
TMDS171 TMDS171I HPD_Timing_Diagram1_sllsen7.gif Figure 13. HPD Timing Diagram No. 1

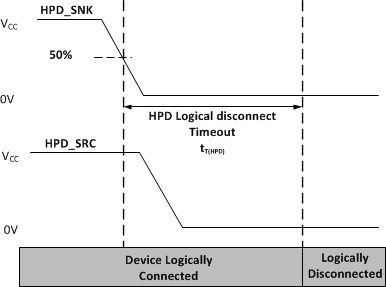

TMDS171 TMDS171I HPD_Logic_Disconnect_Timeout_sllsen7.gif Figure 14. HPD Logic Disconnect Timeout
TMDS171 TMDS171I Start_Stop_Condition_Timing_sllsen7.gif Figure 15. Start and Stop Condition Timing

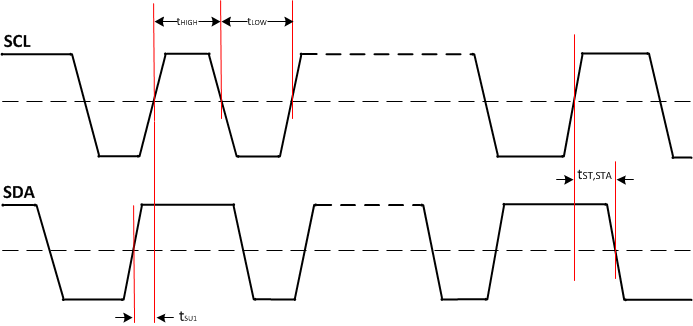

TMDS171 TMDS171I SCL_SDA_Timing_sllsen7.gif Figure 16. SCL and SDA Timing
TMDS171 TMDS171I Propagation_Delay_Source_to_Sink_sllsen7.gif Figure 17. DDC Propagation Delay – Source to Sink
TMDS171 TMDS171I Propagation_Delay_Sink_to_Source_sllsen7.gif Figure 18. DDC Propagation Delay – Sink to Source
TMDS171 TMDS171I ARC_output_sllsen7.gif Figure 19. ARC Output

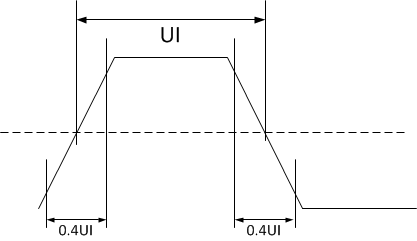

TMDS171 TMDS171I Rise_Fall_time_ARC_sllsen7.gif Figure 20. Rise/Fall Time of ARC
