Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
tCCCB_DEFAULTPower on default of CC1 and CC2 voltage debounce timeDEBOUCE
register = 2'b00
133ms
tVBUS_DBDebounce of VBUS_DET pin after valid VBUS_THR2ms
tDRP_DUTY_CYCLEPower-on default of percentage of time DRP advertises DFP during a tDRPDRP_DUTY_CYCLE register = 2'b0030%
tDRPThe period during which the TUSB320 or the TUSB320I in DFP mode completes a DFP to UFP and back advertisement.5075100ms
tI2C_ENTime from TUSB320 EN_N low or TUSB320I EN high and VDD active to I2C access available100ms
tSOFT_RESETSoft reset duration264995ms

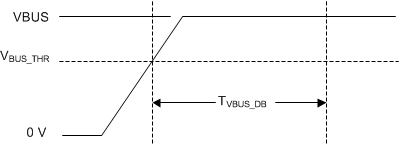

GUID-4168D514-DAE7-4458-A504-7E60C8A72485-low.gif Figure 6-1 VBUS Detect and Debounce
