Application Information

The TUSB320 device is a Type-C configuration channel logic and port controller. The TUSB320 device can detect when a Type-C device is attached, what type of device is attached, the orientation of the cable, and power capabilities (both detection and broadcast). The TUSB320 device can be used in a source application (DFP) or in a sink application (UFP).

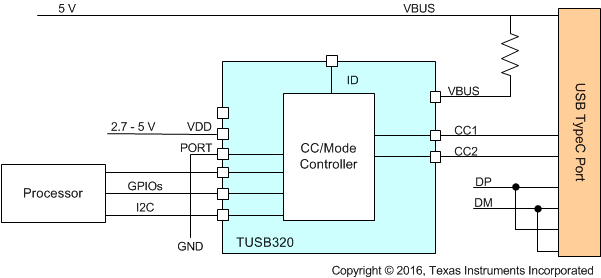

GUID-0363177A-AB96-41E7-A963-228342082ADA-low.gifFigure 8-1 TUSB320 in UFP Mode Supporting Default Implementation

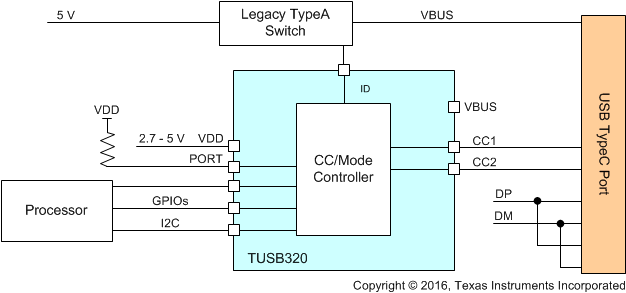

GUID-60CB0F47-4F99-400F-824E-7248C7CEFC28-low.gifFigure 8-3 TUSB320 in DFP Mode Supporting Default Implementation

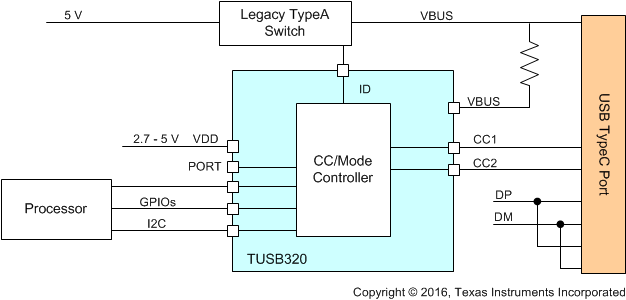

GUID-0C339692-FC52-4175-8B9E-E10A56106233-low.gifFigure 8-5 TUSB320 in DRP Mode Supporting Default Implementation

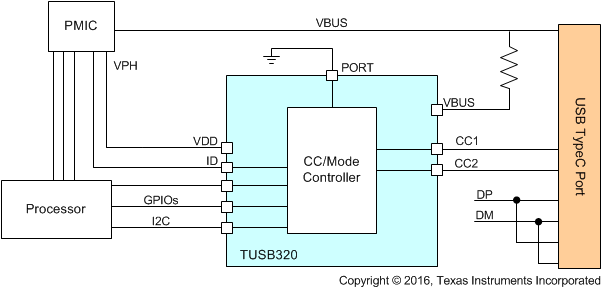

GUID-58F0CBB2-F70E-4A74-AA12-3D5F98D67936-low.gifFigure 8-2 TUSB320 in UFP Mode Supporting Advanced Power Delivery

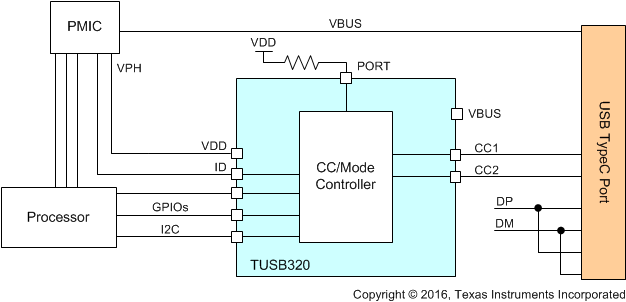

GUID-27CBB496-FBCF-44C4-A31B-1E9C4DA74B56-low.gifFigure 8-4 TUSB320 in DFP Mode Supporting Advanced Power Delivery

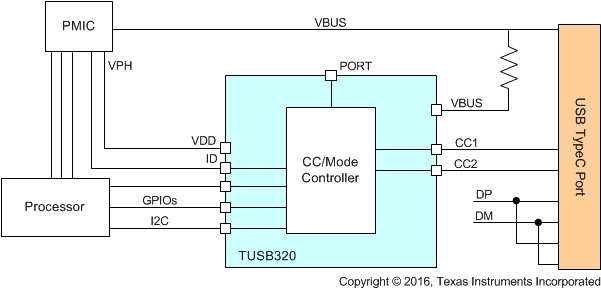

GUID-79869D4C-C442-4F04-89C0-AABE2A479C91-low.gifFigure 8-6 TUSB320 in DRP Mode Supporting Advanced Power Delivery
